Product details

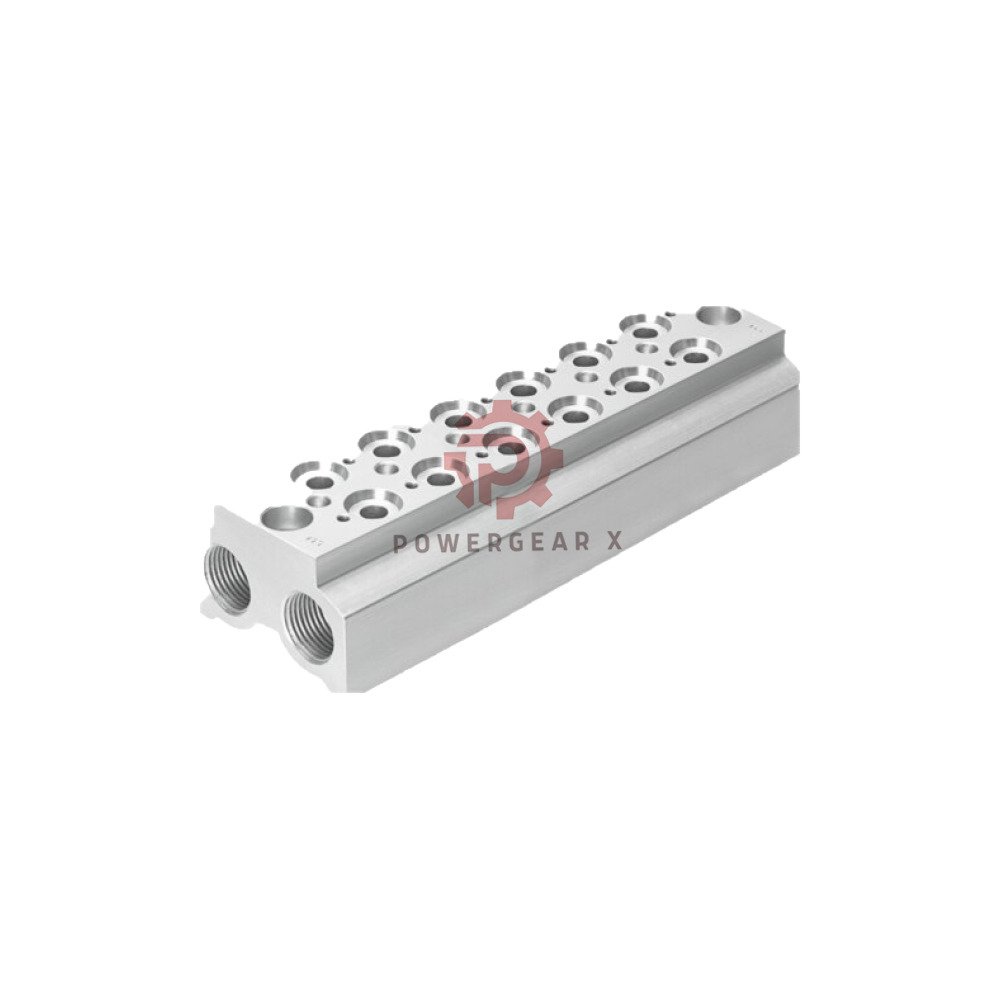

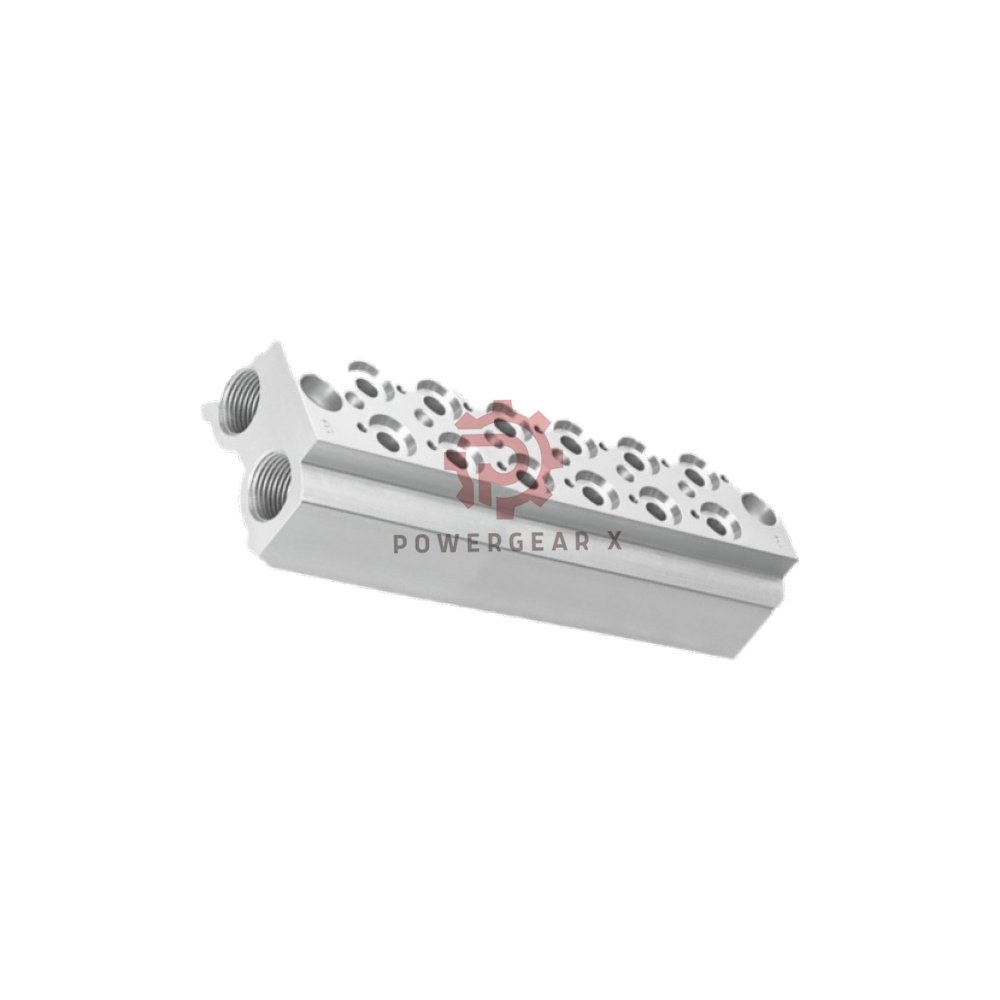

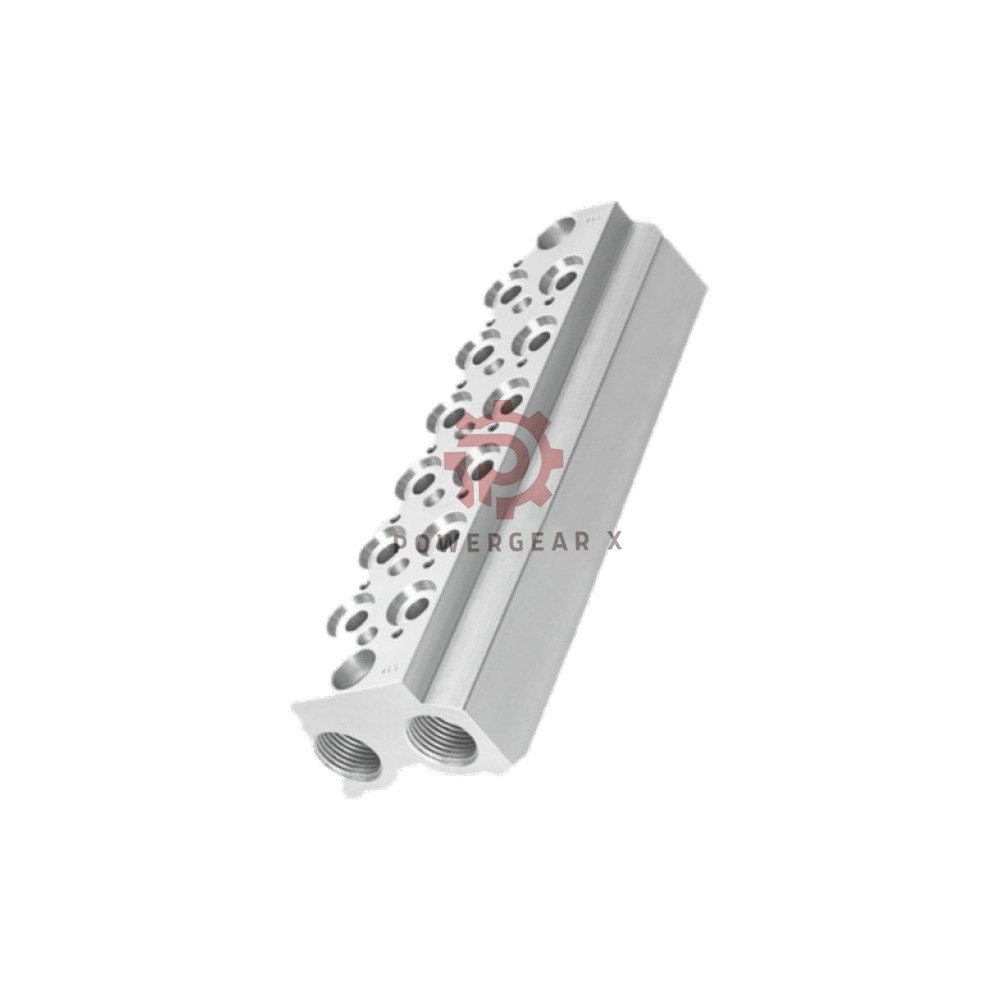

CPE10-PRS-1/4-6 Manifold Block by Festo
Festo CPE10-PRS-1/4-6 is a 6-station manifold block. It fits CPE10 5/2 valves. It saves space and cuts tubing work. The block uses G1/4 female ports. It works with 1/4 NPT pneumatic connections. This unit is good for compact valve islands.
This manifold is built for flexible air control. It supports up to 6 valve positions and 2 pressure zones. It mounts in any position. The body is wrought aluminum alloy. It is RoHS compliant. It handles daily industrial use with low wear.
Key Technical Data
- Brand: FESTO
- Model: CPE10-PRS-1/4-6
- Series: CPE Series
- Alternate Mfr Part Number: 543825
- UNSPSC Code: 27130000
- Manifold Type: Valve manifold block
- Valve Compatibility: CPE10 5/2 valves
- Stations: 6 stations
- Max Valve Positions: 6
- Max Pressure Zones: 2
- Width: 16 mm
- Mounting Position: Any
- Mounting Type: With through-hole
- Pneumatic Valve Mounting: With internal thread
- Pneumatic Connection 1: 1/4 NPT
- Pneumatic Connection 3: 1/4 NPT
- Pneumatic Connection 5: 1/4 NPT
- Operating Pressure: -0.9 bar to 10 bar
- Operating Pressure: -0.09 MPa to 1 MPa
- Burst Pressure: 50 bar
- Burst Pressure: 5 MPa
- Burst Pressure: 725 psi
- Medium Temperature: -5 °C to 50 °C
- Ambient Temperature: -5 °C to 50 °C
- Corrosion Resistance Class: CRC 2 – Moderate corrosion stress
- LABS Conformity: VDMA24364-B1/B2-L
- Max Tightening Torque: 1.22 Nm for valve mounting
- Product Weight: 320.497 g
- Material: Wrought aluminum alloy
- Note on Materials: RoHS compliant
- Unit of Measure: EA
Performance and Range
- Pressure range: -0.9 bar to 10 bar. This covers vacuum and standard air lines.
- Burst limit: 50 bar. It gives a strong safety margin.
- Temperature range: -5 °C to 50 °C. It suits most factory rooms.
- Response and sensitivity: The block does not control signal speed. It feeds air to valves. Valve choice sets response and sensitivity.
- Linearity and resolution: The manifold does not set these values. The connected valves and regulators define them.
- Noise immunity: Metal body blocks outside interference. It protects air routing.
- Environmental resistance: CRC 2 and RoHS support normal industrial air.
Installation Guide
- Mount the block in any position.
- Use the through-hole for machine frame fixing.
- Connect ports 1, 3, and 5 with 1/4 NPT fittings.
- Tighten valve screws to 1.22 Nm. Do not over-torque.
- Keep the air clean and dry. Use filtered air.
- Check for leaks before full pressure.
- Use the 2 pressure zones for separate air circuits.
Setup and Maintenance
- Setup is simple. Fit valves, connect air, and test.
- The 6-station layout cuts assembly time.
- Each station is easy to reach.
- Replace a valve without removing the whole block.
- Clean the aluminum body with a dry cloth.
- Check seals and fittings on a regular plan.
- Keep spare valves ready to cut downtime.
Compatibility Notes
- Use only CPE10 5/2 valves.
- Ports fit 1/4 NPT fittings.
- The block supports 2 pressure zones.
- It works with standard air prep units.
- It fits many compact valve islands.
- Check valve brand and port thread before you buy.
Certifications and Standards
- RoHS compliant
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Corrosion resistance class: CRC 2
- UNSPSC Code: 27130000
Packaging and Warranty
- 1 x Festo CPE10-PRS-1/4-6 Manifold Block
- Unit of Measure: EA
- 12-month warranty
- Ships in 12-24 hours
- Courier options: FedEx, UPS, DHL
Manager’s Insight
This block is a smart pick for machine builders. It packs 6 valve positions into a 16 mm wide body. It also gives you 2 pressure zones. That means you can run two air circuits in one compact unit. The 50 bar burst pressure adds peace of mind. The aluminum alloy body keeps weight low at 320.497 g. For busy lines, the 12-24 hour dispatch helps you avoid long waits.
Best Applications
- Compact valve islands
- Assembly machines
- Packaging lines
- Pick-and-place units
- Small pneumatic control panels
- Automation cells with CPE10 5/2 valves
- Systems that need 2 pressure zones
- Factory air lines with 1/4 NPT fittings
Expert Review
The Festo CPE10-PRS-1/4-6 does one job well. It links up to six CPE10 5/2 valves in a small space. The 16 mm width helps save panel room. The 2 pressure zones add flexibility. The -0.9 bar to 10 bar range covers vacuum and pressure use. The 50 bar burst rating shows strong build quality. The CRC 2 rating fits normal factory air. Setup is fast, and upkeep is easy. For a clean and reliable air hub, this block is a solid choice.
FAQ
Q: What valves fit this manifold?
A: It fits CPE10 5/2 valves. Do not use other series without checking.
Q: How many stations does it have?
A: It has 6 stations. You can use fewer if needed.
Q: Can I run two air pressures?
A: Yes. It supports 2 pressure zones.
Q: What is the operating pressure?
A: The range is -0.9 bar to 10 bar.
Q: What is the burst pressure?
A: The burst pressure is 50 bar.
Q: What ports does it use?
A: Ports 1, 3, and 5 use 1/4 NPT.
Q: How do I mount it?
A: Use the through-hole. It mounts in any position.
Q: What is the torque for valves?
A: Tighten to 1.22 Nm. Do not over-tighten.
Q: What is the temperature range?
A: The range is -5 °C to 50 °C.
Q: Is it RoHS compliant?
A: Yes. It is RoHS compliant.
Q: What is the product weight?
A: The weight is 320.497 g.
Q: How fast does it ship?
A: It ships in 12-24 hours.
Q: Which couriers do you use?
A: We use FedEx, UPS, and DHL.
Q: What is the warranty?
A: It comes with a 12-month warranty.
Q: Can I use it in a vacuum line?
A: Yes. The range starts at -0.9 bar.
Q: Do I need a filter?
A: Yes. Clean and dry air helps the block last longer.
Q: How do I pick the right manifold?
A: Count your valves. Check your port thread. Check your pressure zones. Then match the model.
Buying Guide
- Count your valve stations first. This block holds 6.
- Check your valve series. It must be CPE10 5/2.
- Check your thread. Ports are 1/4 NPT.
- Check your pressure needs. The range is -0.9 bar to 10 bar.
- Check your zones. This block gives 2 pressure zones.
- Check your space. The width is only 16 mm.
- Order spare valves to avoid downtime.
