BMXAMI0410 M340 Analog Input Module 4 Channels High Speed | Modicon X80

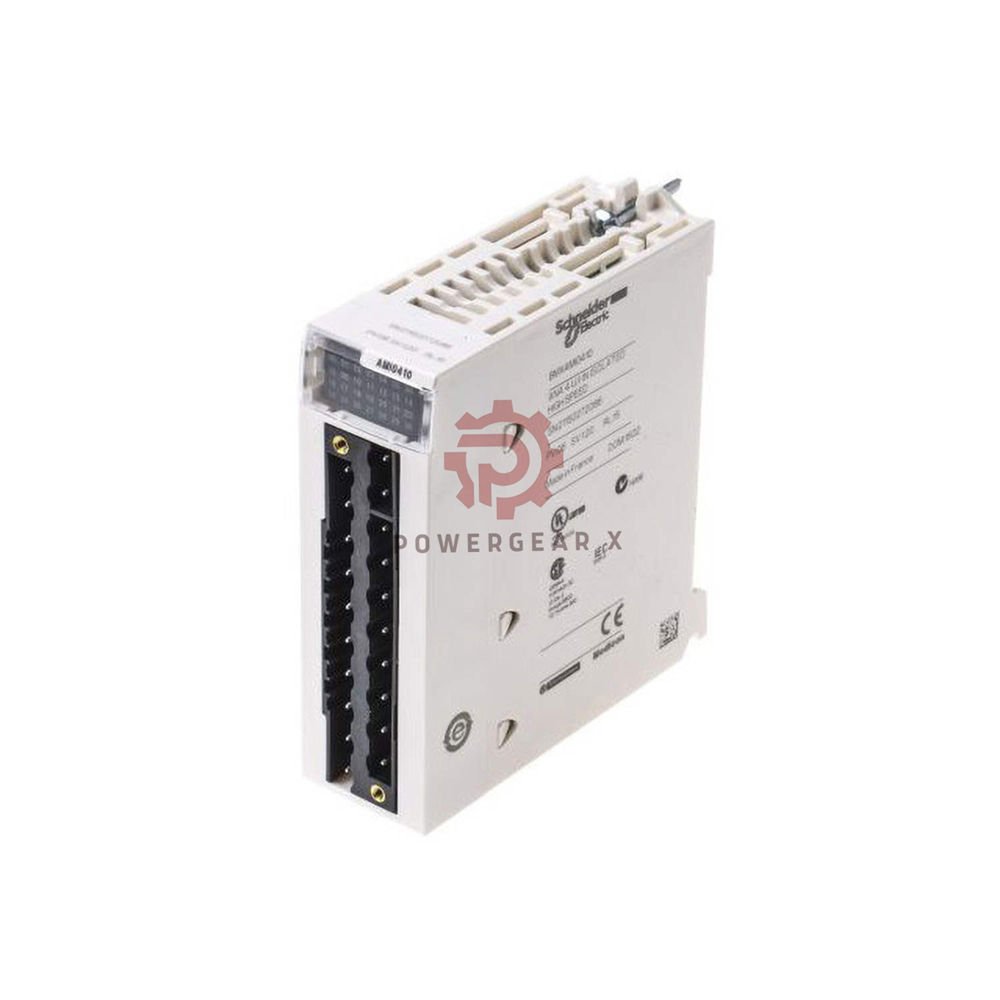

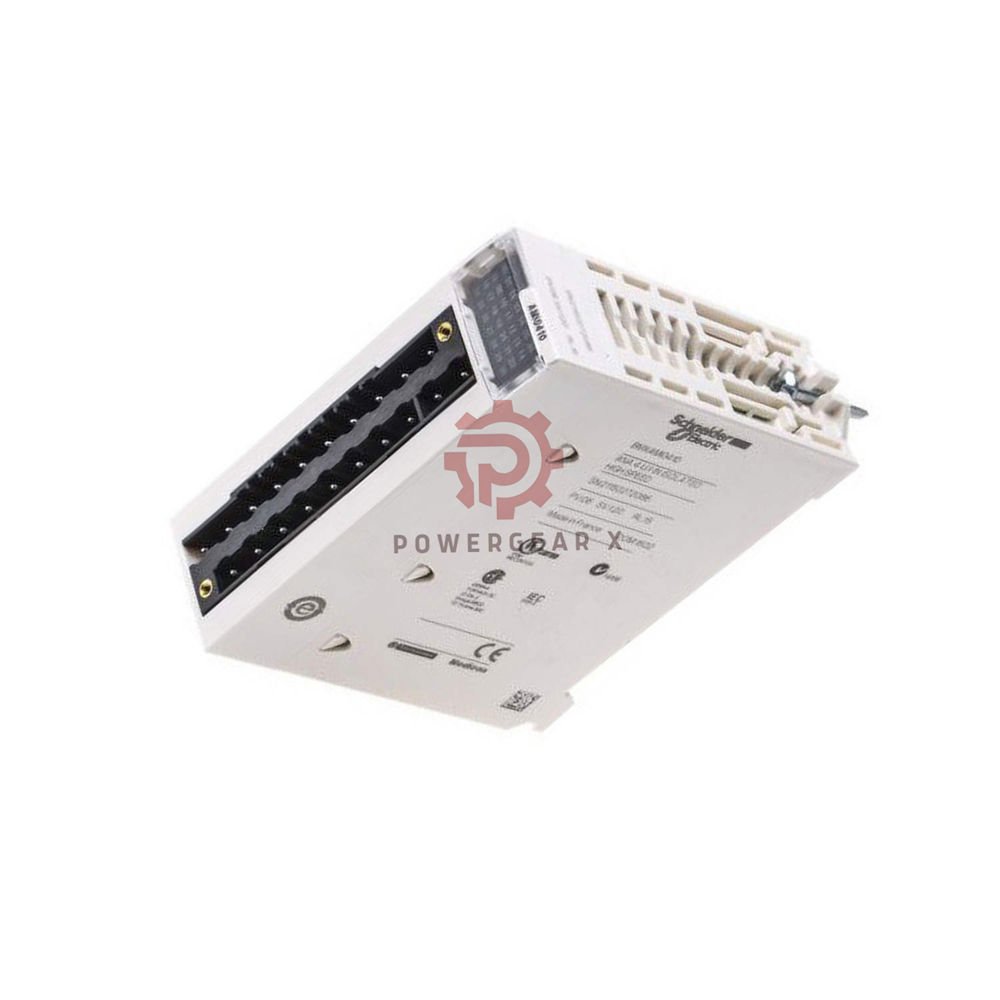

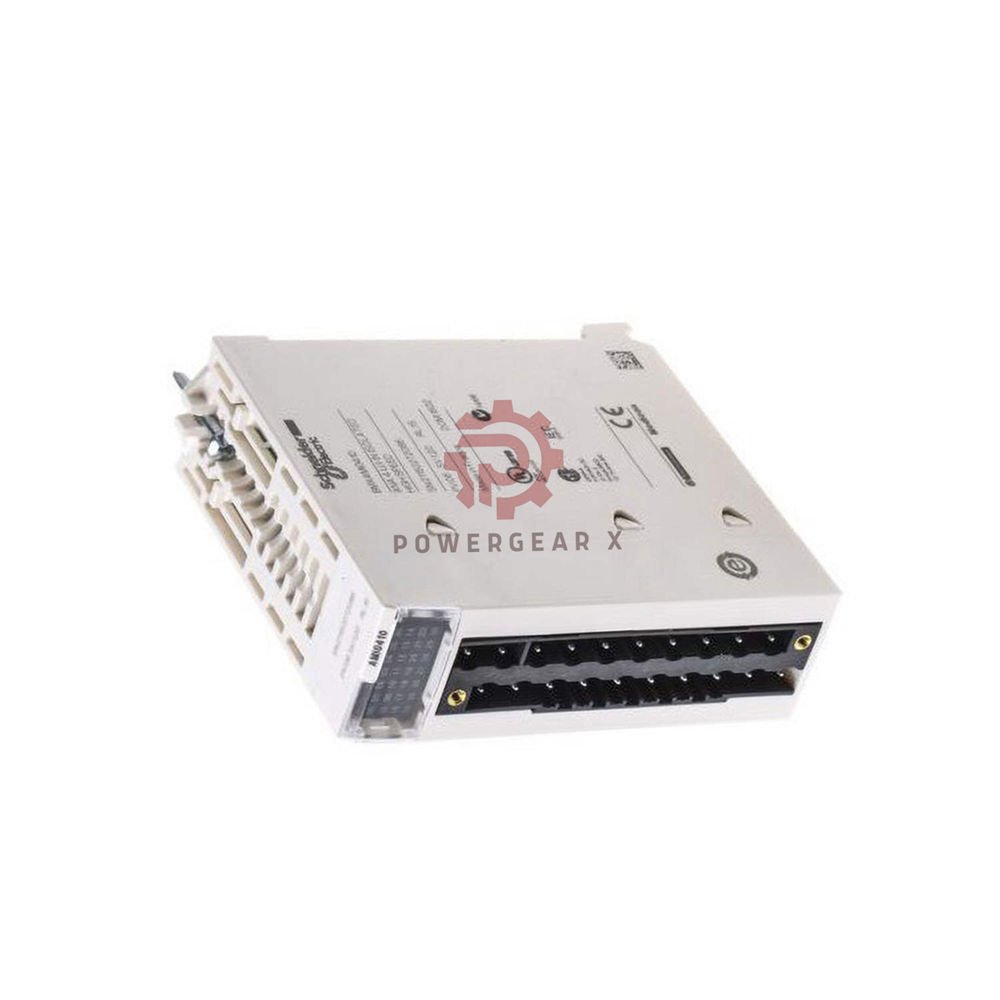

BMXAMI0410 – High-Speed Analog Input Module

Brand: Schneider Electric | Series: Modicon X80 | Type: Analog Input Module

4 isolated high-level inputs. Supports current (±20mA, 0-20mA, 4-20mA) and voltage (±10V, ±5V, 0-10V, 0-5V, 1-5V). 24-bit ADC with 16-bit resolution. Fast cycle time: 1ms + 1ms per channel. Designed for precise industrial measurement.

• Fast read: 1 ms + 1 ms per channel
• Accuracy: ≤0.1% FS (voltage), ≤0.3% FS (current)
• Resolution: 0.35 mV / 0.92 µA
• Isolation: 300V DC between channels, 1400V to ground/bus
• Temp range: 0…60 °C operation, -40…85 °C storage

Technical Specifications

• General
  • Product ID: BMXAMI0410
  • Range: Modicon X80 (M340 compatible)
  • Channels: 4 isolated, high-level inputs
  • Connection: 1x 20-way connector
  • Weight: 0.143 kg
• Input Types & Ranges
  • Current: ±20 mA, 0-20 mA, 4-20 mA
  • Voltage: ±10 V, ±5 V, 0-10 V, 0-5 V, 1-5 V
  • Input impedance: 10 MΩ
  • Internal resistor: 250 Ω, 0.1% / 15 ppm/°C
• Conversion & Resolution
  • ADC: 24-bit, Resolution: 16-bit
  • Voltage resolution: 0.35 mV (all ranges)
  • Current resolution: 0.92 µA (all ranges)
  • Max conversion value: ±11.4 V / 30 mA
• Performance
  • Accuracy (25°C): 0.075% FS (V) / 0.15% FS (I)
  • Accuracy (0-60°C): 0.1% FS (V) / 0.3% FS (I)
  • Temperature drift: 15 ppm/°C (V) / 30 ppm/°C (I)
  • Digital format: ±32000 user scale (default ±10000)
• Filter & Cycle Time
  • Filter: First-order digital
  • Fast cycle: 1 ms + 1 ms × channels
  • Nominal cycle: 5 ms (4 channels)
• Protection & Environment
  • Overload: ±30 V / ±90 mA (continuous)
  • Common mode rejection: 120 dB
  • Isolation: 300V DC (ch-to-ch), 1400V DC (ch-to-ground/bus)
  • Operating temp: 0…60 °C; Storage: -40…85 °C
  • Humidity: 5-95% non-condensing; Altitude: 0-2000m (derating 2000-5000m)
  • Protection: IP20, TC coating
• Power & Status
  • Consumption: 150 mA @ 3.3V DC; 45 mA @ 24V DC
  • LEDs: RUN (green), CH diagnostic (green), ERR (red), I/O (red)

Expert Review

“Exceptional speed and precision.” The BMXAMI0410 delivers 24-bit conversion with 16-bit usable resolution. Its fast cycle (1ms+1ms/ch) suits high-speed control loops. Voltage accuracy (0.075%) and current accuracy (0.15%) meet stringent automation needs. Built-in digital filtering reduces noise.

Manager’s Insight

“Reliable and easy to integrate.” Isolated channels protect against ground loops. The module fits Modicon X80 and M340 racks. Quick installation, auto-calibration, and clear LED diagnostics reduce downtime. Backed by 12-month warranty.

Installation & Compatibility

• Mounting: Directly on Modicon X80 or M340 backplane.
• Wiring: Use 20-way connector (included). Shielded cables recommended.
• Compatibility: Fully compatible with EcoStruxure™ Control Expert, Unity Pro, and M340 CPUs.
• Configuration: Software selectable ranges; no external jumpers.
• Maintenance: Self-calibration; status LEDs for fast troubleshooting.

Typical Applications

• Process control (temperature, pressure, flow)
• High-speed data acquisition
• Machine automation (speed, position feedback)
• Analog signal conditioning for PLC systems
• Industrial IoT and remote monitoring

Certifications & Standards

• Safety: EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No. 61010-2-201
• Marine: Merchant Navy approved
• Regional: RCM, EAC, CE
• RoHS: Compliant (since 0722) – Green Premium product

Package Contents & Warranty

• In the box: BMXAMI0410 module, 20-way connector, documentation (quick start guide).
• Warranty: 12 months against manufacturing defects.
• Shipping: 12-24 hour dispatch via FedEx, UPS, or DHL (tracking provided).

Frequently Asked Questions

• • Can I mix voltage and current inputs on the same module?
  • Yes. Each of the 4 channels is independently configurable for voltage or current ranges.

• • What is the difference between fast and nominal cycle time?
  • Fast cycle (1ms+1ms/ch) for speed-critical loops. Nominal (5ms) for standard applications with all 4 channels.

• • Does the module support 4-20mA with HART?
  • No. The BMXAMI0410 is a standard analog input; it does not support HART communication.

• • Is external calibration required?
  • No. The module performs internal recalibration automatically for long-term stability.

• • What is the overload protection?
  • Voltage inputs tolerate ±30V; current inputs tolerate ±90mA continuously without damage.

• Which software is needed for configuration?
• Control Expert (Unity Pro) or EcoStruxure™ Machine Expert. Range and filter settings are software-selectable.

Selection Guide

• Choose BMXAMI0410 if: You need 4 high-speed isolated inputs with high accuracy.
• For voltage signals: This module offers excellent linearity (0.075% FS) and low drift.
• For current loops: Use the 250Ω internal resistor; accuracy is 0.15% FS at 25°C.
• Consider BMXAMI0800/0810 for more channels (8) but slower cycle time.
• For extreme environments: Check operating temp (0-60°C) and derating above 2000m.
