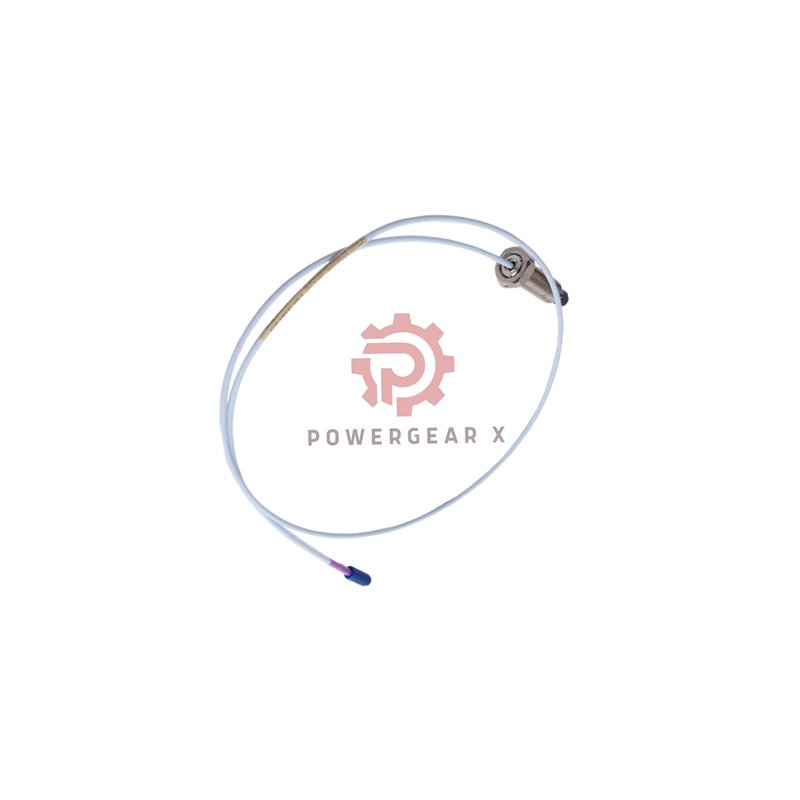

Bently Nevada 330709-000-230-90-12-00 3300 XL 11mm Proximity Probe

Product Overview

This is the Bently Nevada 3300 XL 11 mm Proximity Probe. It is a premium industrial vibration and position sensor. This probe is designed for reliable, high-precision monitoring of rotating machinery in demanding environments. Its robust construction ensures long-term stability and accurate measurements.

Key Features & Benefits

• Superior Accuracy: Delivers precise gap voltage measurement for critical machinery monitoring.
• Extended Durability: Stainless steel case and FEP cable withstand harsh industrial conditions.
• Easy Integration: Miniature ClickLoc connector allows for quick and secure installation.
• Wide Temperature Range: Operates reliably from extreme cold to high heat.
• Global Compliance: Designed to meet various international agency standards for safety.

Complete Technical Specifications

• Brand & Model: Bently Nevada 3300 XL 11mm Probe
• Full Part Number: 330709-000-230-90-12-00
  • 330709: 3300 XL 11 mm Probe, M16x1.5 thread, no armor
  • 000: Unthreaded Length = 0 mm
  • 230: Overall Case Length = 230 mm
  • 90: Total Cable Length = 9.0 meters
  • 12: Connector = Miniature coaxial ClickLoc, FluidLoc cable
  • 00: Agency Approval = Not required
• Measurement Principle: Eddy current displacement sensing
• Probe Tip Material: Polyphenylene sulfide (PPS) for wear resistance
• Probe Case: AISI 304 Stainless Steel, M16 x 1.5 thread
• Cable Type: 75Ω Triaxial, FEP insulated FluidLoc cable
• Probe Resistance (RPROBE): 8.5 Ω ± 1.1 Ω @ 9.0m length
• Target Requirements:
  • Minimum flat surface: 30.5 mm (1.2 in) diameter
  • Minimum shaft diameter: 152 mm (6.0 in)
• Temperature Range: -52°C to +177°C (-62°F to +351°F) for operation and storage.
• Mechanical Specs:
  • Case Torque (Recommended): 21.1 N•m (187 in•lb)
  • Connector Torque (Max): 0.565 N•m (5 in•lb)
  • Minimum Cable Bend Radius: 25.4 mm (1.0 in)

Installation & Setup Guide

• Use the correct M16x1.5 mounting hole. Do not exceed 24 mm thread engagement.
• Apply the recommended 21.1 N•m torque to the probe case. Avoid overtightening.
• Connect the ClickLoc connector finger-tight. Never use tools on the connector.
• Route the cable carefully. Maintain the minimum bend radius to prevent damage.
• For cold environments below -34°C, handle seals with care to avoid premature failure.

Compatibility & Integration

This 11 mm probe is compatible with Bently Nevada 3300 XL monitoring systems. It pairs with standard 3300 XL proximitors. The Miniature ClickLoc connector ensures a secure, moisture-resistant connection. It is an ideal upgrade or replacement part for critical machinery protection loops. For an 8 mm probe option, see our Bently Nevada 3300 XL 8 mm Proximity Probes.

Certifications & Approvals

The probe is designed to meet requirements for various hazardous area classifications (EPL Ga, Gc, Dc). It follows multiple temperature class schedules (T1 through T5). Specific agency approval marking (option 00) is not pre-applied but can be supported for custom orders.

What’s in the Box & Support

• One (1) Bently Nevada 330709-000-230-90-12-00 11 mm Proximity Probe.
• Standard product documentation and specification sheet.
• 12-Month Warranty: We guarantee this product against defects for one year.
• Fast Global Shipping: We ship via FedEx, UPS, and DHL for reliable delivery.

Typical Applications

• Radial Vibration Monitoring on turbines, compressors, and large pumps.
• Axial Position (Thrust) Monitoring of rotating shafts.
• Key Phaser and Speed Reference applications.
• Condition Monitoring in power generation, oil & gas, and heavy industry.

Diagnostic Capability & FAQ

This probe provides a vital gap voltage signal. Monitoring this DC voltage helps diagnose:

– Relative shaft position and dynamic motion.

– Probe health and proper gap setting.

– Early signs of machine misalignment or bearing issues.

Frequently Asked Questions

• Q: What is the main difference between 8mm and 11mm probes?
• A: The 11mm probe has a larger tip. It requires a larger minimum target surface. It often provides a stronger signal in its linear range. Choose based on your shaft size and system requirements. Compare with 8mm probes here.
• Q: Can I cut and re-terminate the cable if it’s too long?
• A: No. The probe and cable are a sealed, tuned unit. Cutting the cable will change the electrical characteristics and make readings inaccurate. Always order the correct pre-set length.
• Q: My environment has high humidity and occasional fluid spray. Is this probe suitable?
• A: Yes. The FluidLoc cable and sealed ClickLoc connector are specifically designed to resist moisture and fluids, making it a robust choice for such conditions.
• Q: How do I select the right temperature class option?
• A: Match the probe’s T-class to your area’s hazardous classification requirements. The standard model covers a broad range, but consult your safety engineer for the specific code needed for your plant.

Quick Selection Guide

• For Large Shafts (>150mm): This 11mm probe is the recommended choice.
• For Standard-Size Shafts: Check if an 8mm probe might be more suitable for your application.
• Check Your Thread: Verify your mounting hole is M16x1.5.
• Measure Cable Run: Order the 9.0m length (or other standard length) that reaches your monitor without stretching.
• Confirm Connector Type: Ensure your system uses the miniature ClickLoc style.
