Product Overview

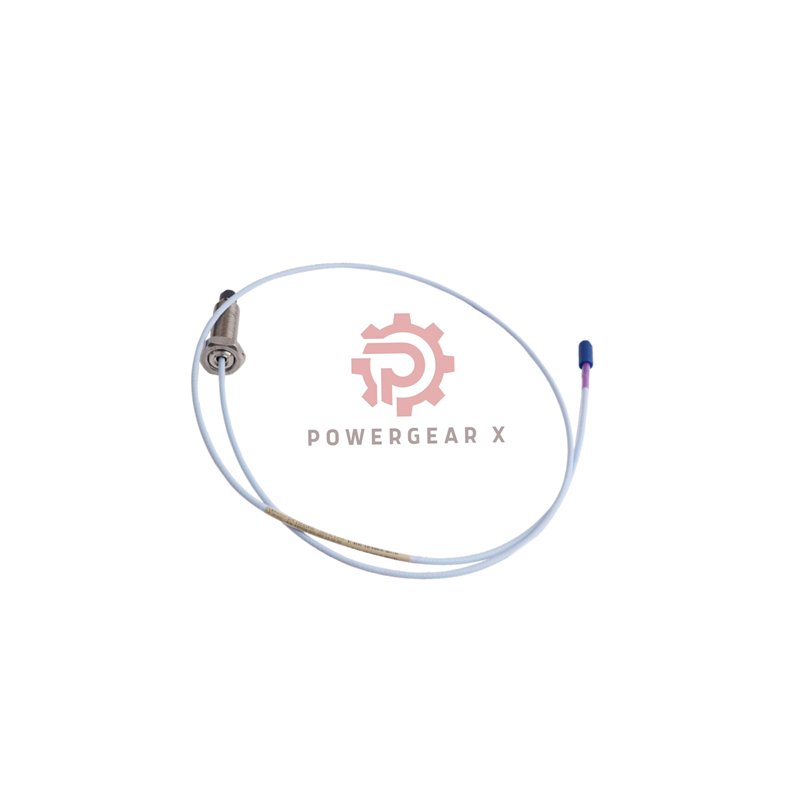

The Bently Nevada 330709-000-230-90-12-05 is a high-precision 11mm proximity probe from the renowned 3300 XL series. It delivers reliable vibration and position measurement for critical machinery protection.
Key Features & Benefits
- Durable Design: AISI 304 stainless steel case and PPS tip withstand tough conditions.
- Extended Reach: 9-meter cable allows installation on large machines.
- Secure Seal: ClickLoc connector with FluidLoc cable resists moisture.
- Broad Operating Range: Functions from -52°C to +177°C.
- Certified Safety: Holds multiple international approvals for global use.
Technical Specifications
- Brand: Bently Nevada
- Model Series: 3300 XL Proximity Probes
- Full Part Number: 330709-000-230-90-12-05
- 330709 – 3300 XL 11mm Probe, M16x1.5 thread, no armor
- 000 – 0 mm Unthreaded Length
- 230 – 230 mm Overall Case Length
- 90 – 9.0 meters Total Cable Length
- 12 – Mini Coaxial ClickLoc Connector, FluidLoc Cable
- 05 – Multiple Agency Approvals
- Measurement Core
- Minimum Target: 30.5 mm flat surface (152 mm shaft recommended)
- Probe DC Resistance (9m): 8.5 ± 1.1 Ohms
- Cable Type: 75 Ω Triaxial, FEP insulation
- Physical & Mechanical
- Thread Size: M16 x 1.5
- Installation Torque: 21.1 N•m (Recommended)
- Connector Torque: Hand-tight only (Max 0.565 N•m)
- Min. Bend Radius: 25.4 mm
- Environmental Limits
- Temperature Range: -52°C to +177°C (Operating & Storage)
- Seal Note: Avoid sustained exposure below -34°C.
- Safety Ratings: Complies with EPL Ga, Gc, Dc temperature schedules.
Installation & Maintenance Guide
- Prepare a clean, precise mounting hole.
- Torque the probe case to 21.1 N•m using a calibrated tool.
- Connect the cable by hand. Do not use tools on the connector.
- Route the cable carefully. Maintain a bend radius over 25.4 mm.
- Verify the target surface is clean and meets size specs.
- For upkeep, inspect for physical damage and clean the probe tip.
Compatibility & Integration
This probe integrates with Bently Nevada 3300 XL monitoring systems. The ClickLoc interface allows fast connection. For different applications, explore the 3300 XL 8mm Proximity Probe.
Certifications & Package
- Approvals: Carries multiple agency certifications (Option 05).
- Box Contents: 1 Proximity Probe, protective cap, data sheet.
- Warranty: Backed by a 12-month limited warranty.
- Shipping Methods: Fast worldwide delivery via FedEx, UPS, DHL.
Typical Applications
- Continuous vibration monitoring on turbines and compressors.
- Shaft radial vibration and position measurement.
- Keyphasor® speed reference applications.
- Protecting critical assets in power and oil & gas industries.
Diagnostic Capabilities
This sensor enables predictive maintenance. It helps identify machine faults like unbalance and misalignment early. This prevents costly downtime and repairs.
Frequently Asked Questions (FAQ)
General & Technical
- What is the probe tip made from?
It uses robust Polyphenylene Sulfide (PPS). - What target size do I need?
A minimum 30.5 mm flat area. For shafts, use at least 152 mm diameter. - Is it suitable for outdoor installation?
Yes. Its construction and temperature rating suit harsh environments.
Experience & Selection
- 11mm or 8mm probe? How to choose?
Match probe size to your target. The 11mm model suits larger shafts. For smaller targets, the 3300 XL 8mm Probe is ideal. - My readings are unstable. What should I check?
Inspect the target surface condition and size. Ensure all electrical connections are secure and proper. - What does the “90” suffix mean?
It specifies the total cable length, which is 9.0 meters for this model.
Purchasing & Support
- What is your delivery time?
We usually ship in-stock items quickly. Contact us for exact timelines. - Can you help with system integration?
Absolutely. Our experts and partners provide full technical support.
How to Order & Contact
To purchase the Bently Nevada 330709-000-230-90-12-05 or for quotes:
Email: sales@powergearx.com
Call/WhatsApp: +86 18030005825
We provide expert guidance for your application.
