Bently Nevada 330709-000-230-10-02-05 – 11mm Proximity Vibration Probe

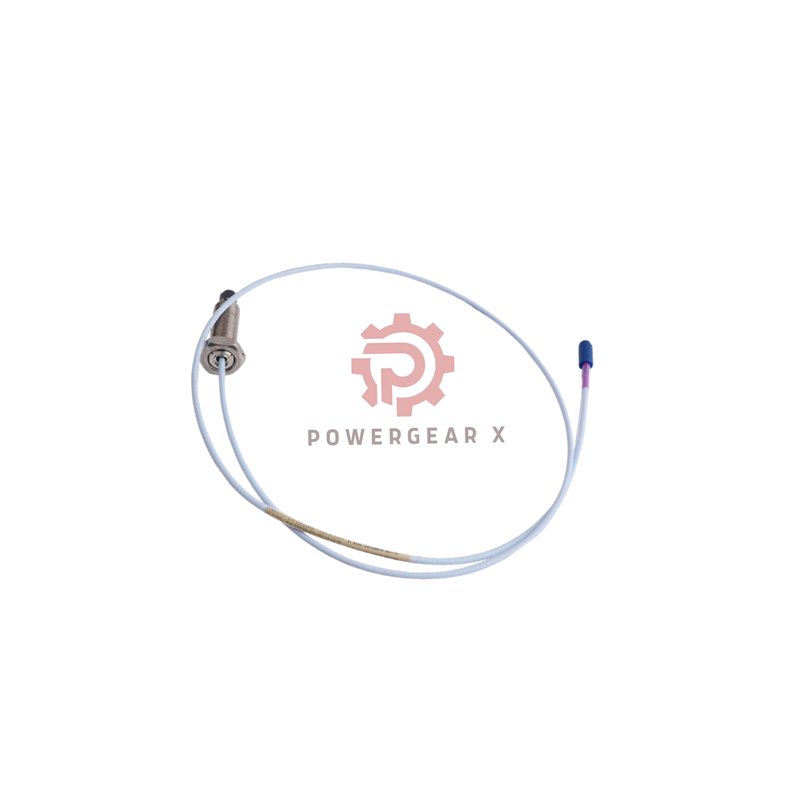

Product Introduction: Bently Nevada 3300 XL 11mm Proximity Probe

This is the 330709-000-230-10-02-05, a high-performance 11 mm proximity probe from the renowned Bently Nevada 3300 XL series. It excels in monitoring critical machinery vibration and position. This probe ensures reliable, precise measurements in demanding industrial environments. It is essential for predictive maintenance programs. The probe helps prevent unplanned downtime and protects valuable assets.

Key features include:

• Superior Accuracy: Delivers precise measurement of shaft vibration and position.
• Robust Construction: Features a stainless steel case and durable PPS tip for long service life.
• Wide Temperature Range: Operates reliably from -52°C to +177°C.
• Easy Integration: Comes with a standard ClickLoc connector for quick installation.
• Global Approvals: Certified for use in various hazardous and safe areas worldwide.

Need a different size? Explore our 3300 XL 8mm Proximity Probe.

Detailed Technical Specifications

• Brand & Model: Bently Nevada 3300 XL 11mm
• Full Part Number: 330709-000-230-10-02-05
  • 330709: Base Model – 3300 XL 11mm Probe, M16x1.5 thread
  • -000: Suffix – Unthreaded Length = 0 mm
  • -230: Suffix – Overall Case Length = 230 mm
  • -10: Suffix – Total Cable Length = 1.0 metre
  • -02: Suffix – Connector Type = Miniature Coaxial ClickLoc
  • -05: Suffix – Agency Approval = Multiple Approvals
• Electrical Data
  • Probe Resistance (RPROBE): 5.9 Ω ± 0.5 Ω
  • Cable Impedance: 75 Ω Triaxial
• Measurement & Performance
  • Minimum Target Size: 30.5 mm (Flat Surface)
  • Minimum Shaft Diameter: 152 mm (Recommended)
  • Linearity: High, as per 3300 XL system standards.
  • Resolution: Excellent, suitable for detecting micron-level changes.
  • Frequency Response: Designed for standard machine monitoring frequencies (10 Hz to 10 kHz typical).
• Environmental & Mechanical
  • Operating Temperature: -52°C to +177°C
  • Case Material: AISI 304 Stainless Steel
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Case Torque (Max): 63.3 N•m
  • Case Torque (Recommended): 21.1 N•m
  • Max Thread Engagement: 24 mm
  • Cable Bend Radius: 25.4 mm minimum
• Certifications & Compliance
  • Holds multiple agency approvals for hazardous (EPL Ga, Gc, Dc) and non-hazardous area use.
  • Complies with global standards for machinery protection.

Installation & Setup Guide

• Clean the mounting hole before installation.
• Screw in the probe to the recommended 21.1 N•m torque. Do not exceed 63.3 N•m.
• Ensure the target area is clean, flat, and meets minimum size requirements.
• Route the cable carefully, avoiding sharp bends less than 25.4 mm.
• Connect the ClickLoc connector finger-tight to the extension cable. Maximum torque is 0.565 N•m.
• Use compatible Bently Nevada 3300 XL monitors for system operation.

Maintenance & Diagnostics

This probe requires minimal maintenance. Its robust design ensures long-term stability. For diagnostics, measure the probe resistance (5.9 Ω ± 0.5 Ω). Check the cable and connector for physical damage. Regularly verify system calibration with a micrometer and oscillator. Any significant change in gap voltage indicates a potential issue.

Compatibility Information

This probe is part of the Bently Nevada 3300 XL system. It works seamlessly with 3300 XL vibration monitors and前置器. It is not directly compatible with older 3300 series or other manufacturer’s systems without verification. Always confirm system requirements.

Packaging & Warranty

• Package Includes: One (1) Bently Nevada 330709-000-230-10-02-05 proximity probe.
• Warranty: We offer a 12-month warranty against manufacturing defects from the date of purchase.
• Shipping: We ship globally via FedEx, UPS, and DHL for fast, reliable delivery.

Typical Applications

• Radial Vibration Monitoring on turbines, compressors, and pumps.
• Shaft Axial Position (Thrust) Measurement.
• Key Phasor / Speed Reference applications.
• Condition Monitoring for power generation, oil & gas, and heavy industry.

Frequently Asked Questions (FAQ)

General & Selection

What is the main use of this probe?

It measures shaft vibration and position to protect expensive machinery from damage.

How do I choose the correct probe length?

Select based on your mounting location depth. This model has a 230mm case. Consider the required gap to the target.

Can I use this probe with a non-Bently monitor?

Not recommended. Performance is guaranteed only with compatible 3300 XL system components.

Installation & Troubleshooting

My system shows erratic readings. What should I check first?

Verify the probe tip is clean. Check the mounting torque. Measure the probe resistance. Ensure proper target material and size.

Why is the minimum shaft diameter so large (152mm)?

This prevents “cross-talk” or signal distortion when measuring on curved surfaces, ensuring accuracy.

The probe was stored in freezing conditions. Is it damaged?

Exposure below -34°C may compromise the pressure seal. Inspect carefully and test resistance before use.

Purchasing Guidance

What if I need a longer cable?

This model comes with a 1m fixed cable. For longer runs, you must order the correct part number suffix or use approved extension cables.

Do you offer similar probes in different sizes?

Yes. For smaller applications, consider our 3300 XL 8mm Proximity Probe.

I need technical support for my application. Who can I contact?

Please reach out to our technical sales team for expert advice.

For pricing, technical inquiries, or custom requirements:
Email: sales@powergearx.com
Phone/WhatsApp: +86 18030005825

We partner with industry experts like Oiltech Controls Limited and PLCDCS HUB Limited to bring you the best solutions.
