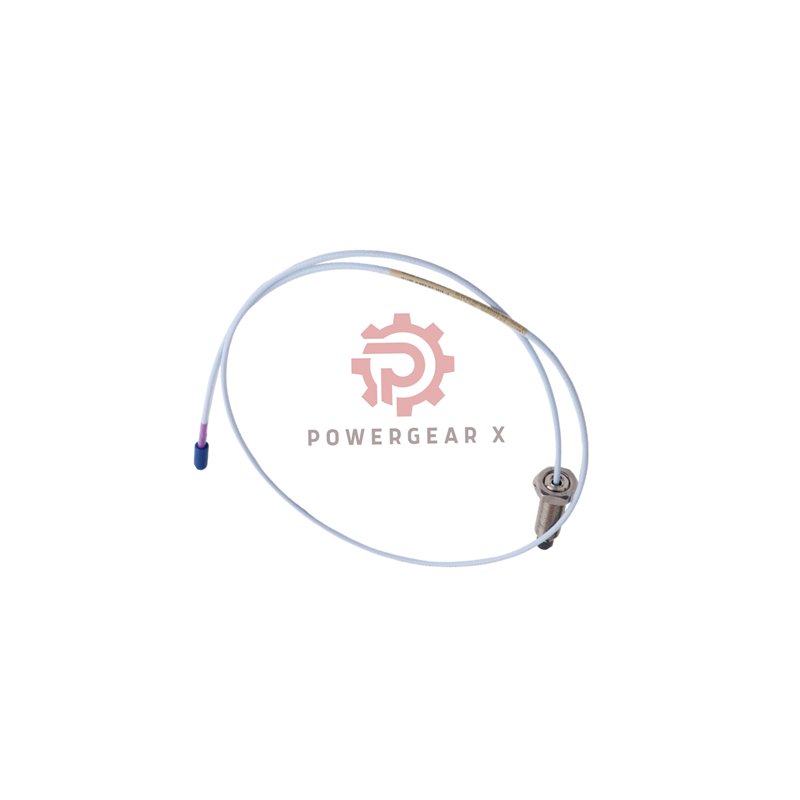

Name: Bently Nevada 330709-000-230-90-02-00 | 230mm Case &amp; 9m Cable Vibration Sensor
SKU: 330709-000-230-90-02-00
Price: 228.00 USD
Availability: InStock

Product details

Maximum Reach: Long Case & Extended Cable

The Bently Nevada 330709-000-230-90-02-00 is engineered for the most demanding installations. It combines a deep-penetration 230mm case with a long 9.0-meter cable. This configuration is ideal for monitoring machinery where the sensor must pass through thick insulation or structures, and the monitoring panel is located far away.

Product Configuration Decoded

The model number 330709-000-230-90-02-00 specifies a unique setup.

330709: Base Unit: 3300 XL 11mm Probe, M16x1.5
000: Unthreaded Shank = 0 mm
230: Probe Body = 230 mm (Long)
90: Cable Run = 9.0 Meters (29.5 ft)
02: Connector Type = Standard ClickLoc
00: Safety Approvals = Not Required

Technical Specifications

Electrical Performance
- Probe Resistance: 8.5 Ω ± 1.1 Ω (for 9m length)
- Cable Specification: 75 Ω Triaxial, FEP Insulation
- Minimum Target Size: 30.5 mm Diameter
Mechanical Design
- Construction: 304 Stainless Steel Case
- Tip Material: Wear-Resistant PPS
- Mounting Thread: M16 x 1.5
- Max Thread Engagement: 24 mm
Operational Limits
- Temperature Range: -52°C to +177°C
- Storage Caution: Avoid below -34°C to prevent seal damage.
- Cable Handling: Maintain a 25.4 mm minimum bend radius.
Installation Parameters
- Case Torque: Recommended 21.1 N•m
- Connector Torque: Hand tight only

In-Depth FAQ for Professionals

What are typical applications for this 230mm/9m probe combination?

This probe is perfect for large turbines, generators, or pumps with deep bearing housings and remote monitoring cabinets. It solves both depth and distance challenges in one sensor.

Does the standard cable (option ’02’) suit outdoor runs?

The standard FEP-insulated cable is robust for most industrial environments. For long outdoor runs or areas with constant fluid exposure, consider a model with FluidLoc cable for enhanced protection.

Why are there no agency approvals (’00’) on this model?

The ’00’ option indicates this probe is for use in standard, non-hazardous industrial locations only. It is a cost-effective choice for plants without explosive atmosphere requirements.

Can I interchange this with an 8mm probe if the thread fits?

Never. The thread size is separate from the sensing function. An 3300 XL 8mm Proximity Probe has fundamentally different electrical output. Using the wrong size will cause system malfunction.

How do you ensure this specialized probe arrives safely?

We pack all probes securely to prevent transit damage. They are shipped with tracking via FedEx, UPS, or DHL. Your purchase is protected by a standard 12-month warranty.
