Deep Reach, Long Distance Monitoring Sensor

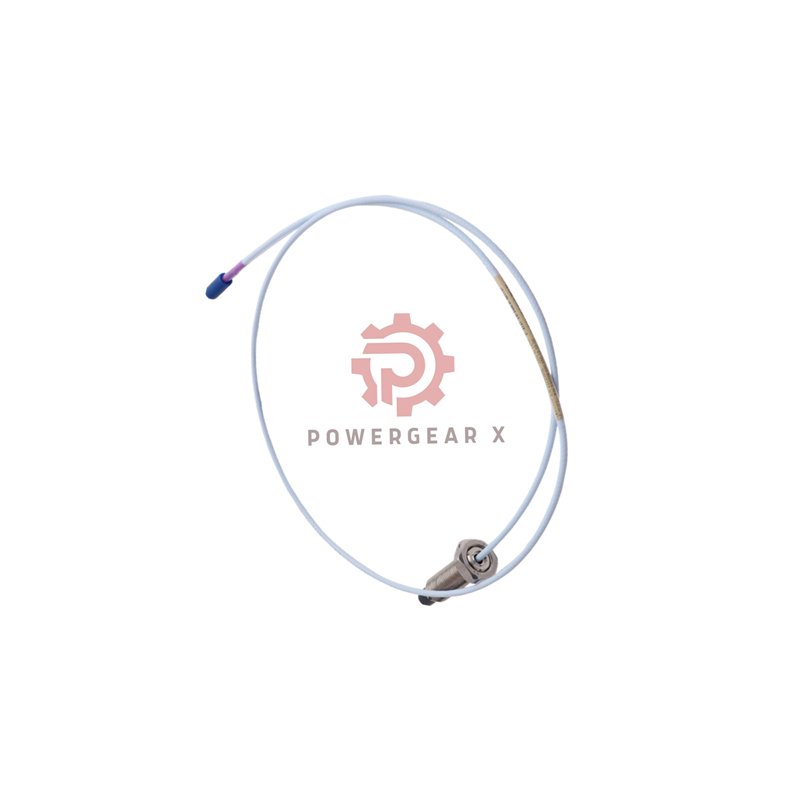

This Bently Nevada 3300 XL 11 mm Proximity Probe is for complex installations. It combines a 230mm long body with a 9-meter cable. Reach deep into machinery from a remote cabinet. This model carries multiple safety approvals for global projects. For standard reach 8mm probes, see our 3300 XL 8mm Proximity Probe collection.
Product Configuration Decoded
- Brand: Bently Nevada
- Full Product Code: 330709-000-230-90-02-05
- Feature Breakdown by Suffix:
- 330709: 11mm Sensing Tip, M16x1.5 Thread
- 000: Unthreaded Shank Length = 0 mm
- 230: Extra-Long Case (230 mm)
- 90: Very Long Cable (9.0 Meters)
- 02: ClickLoc Connector, Standard Cable
- 05: Multiple International Approvals
Technical Specifications at a Glance
- Electrical Data
- Resistance (9m Cable): 8.5 Ω ± 1.1 Ω
- Cable Type: 75 Ω Triaxial, FEP Insulation
- Physical Build
- Tip Material: Durable PPS Plastic
- Body Material: 304 Stainless Steel
- Mounting Thread: M16 x 1.5
- Max Thread Depth: 24 mm
- Installation Guidelines
- Minimum Target: Flat 30.5 mm / Shaft 152 mm
- Body Torque (Rec): 21.1 N•m (187 in•lb)
- Connector Torque: Finger Tight Only
- Min Bend Radius: 25.4 mm
- Environmental Limits
- Temperature Range: -52°C to +177°C
- Storage Note: Keep above -34°C to preserve seal.
System Integration & Purpose
- Must be used with a matching 9-meter Bently Nevada Proximitor.
- Standard cable suitable for controlled indoor environments.
- Designed for large equipment where sensor and monitor are far apart.
Your Order Includes
- One 330709-000-230-90-02-05 proximity probe.
- A reliable 12-month product warranty for peace of mind.
- Fast international shipping via FedEx, UPS, or DHL.
Frequently Asked Questions
Understanding This Configuration
- What type of installation needs both a long body and long cable?
- Large turbines or generators where you must mount through a thick casing (long body) and route to a distant control room (long cable).
- Why choose “02” cable instead of “11” for this application?
- “02” is standard cable. It is a cost-effective choice if the installation path is dry and protected from fluids.
Installation & Handling Tips
- How do I manage the 9-meter cable during installation?
- Plan the route first. Uncoil the entire cable carefully. Use wide, gentle loops for excess length, avoiding sharp bends.
- Is special support needed for the 230mm probe body?
- Ensure the mounting hole provides full support along the thread. Avoid cantilever stress before final tightening.
Purchasing & Compliance
- What do the “Multiple Approvals” cover?
- They typically include certifications for use in hazardous locations, meeting standards like ATEX, IECEx, or CSA.
- Can you provide documentation for the approvals?
- Yes. Certificates of Conformity or approval documents are available upon request from our sales team.
