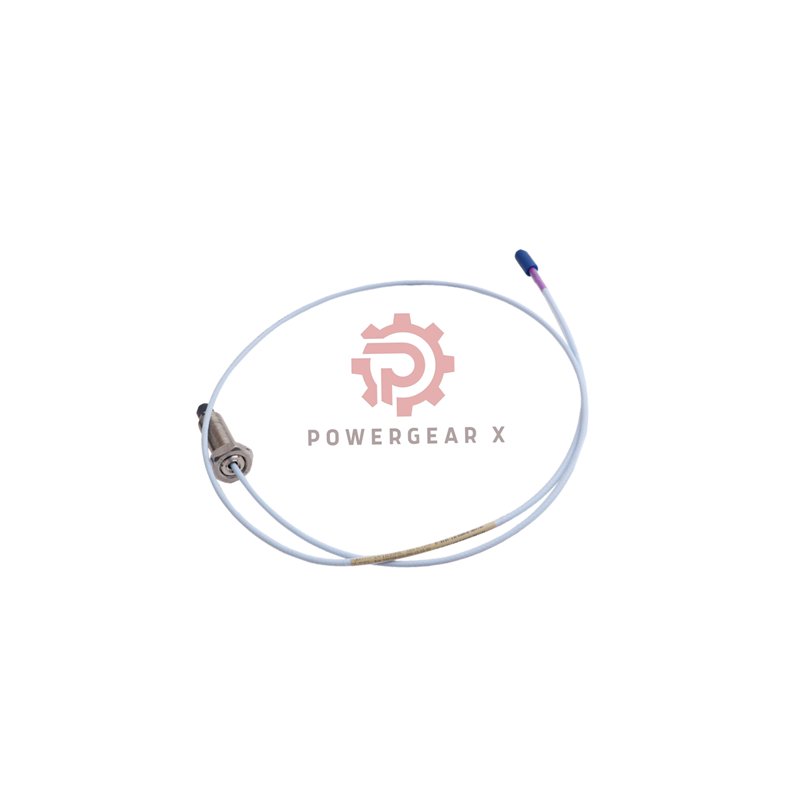

Special Application: Bently Nevada 330709-000-230-50-11-05 | 230mm Long 11mm Vibration Probe

Extra-Long Probe for Deep or Insulated Mounting

Designed for unique installation challenges. This Bently Nevada 3300 XL 11 mm Proximity Probe (Model 330709-000-230-50-11-05) features an exceptionally long 230mm case. It is ideal for reaching through thick insulation, casings, or deep mounts to sense shaft vibration directly.

For standard machine mounts, see our shorter 50mm-80mm case probes. For applications with smaller shafts, consider the 3300 XL 8mm Proximity Probe.

Model Breakdown: 330709-000-230-50-11-05

• 330709 – Base Probe: 11mm, M16x1.5 thread, no armor.
• 000 – Unthreaded Length: 0 mm.
• 230 – Case Length: 230 mm (Extra Long).
• 50 – Cable Length: 5.0 meters.
• 11 – Connector/Cable: ClickLoc with protector & FluidLoc cable.
• 05 – Approvals: Multiple hazardous location certifications.

Product Specifications

• Manufacturer: Bently Nevada
• Series: 3300 XL Machinery Monitoring
• Sensor Type: 11mm Diameter Proximity Probe
• Electrical Spec: Probe Resistance: 7.2 Ω ± 0.8 Ω
• Construction:
  • Body: 304 Stainless Steel (230mm long)
  • Tip: Wear-Resistant PPS
  • Thread: M16 x 1.5
• Target Requirements:
  • Flat Surface Minimum: 30.5 mm
  • Recommended Shaft Diameter: 152 mm or larger
• Environmental Specs:
  • Operating Temp: -52°C to +177°C
  • Cable Type: FluidLoc (oil/chemical resistant)
  • Min. Bend Radius: 25.4 mm
• Cable & Connection:
  • Length: 5.0 meters, 75-ohm triaxial.
  • Connector: Miniature ClickLoc with protective boot.

Installation Guide

• Mounting Torque:
  • Recommended: 21.1 N•m (187 in•lb)
  • Maximum Allowed: 63.3 N•m (560 in•lb)
• Important Note: Only the first 24mm of the 230mm case is threaded. Engage threads fully but do not exceed 24mm.
• Connector: Connect by hand. Do not use tools.

Typical Applications

• Machinery with thick thermal insulation or protective jackets.
• Equipment requiring the probe to pass through a deep mounting boss.
• Hazardous area monitoring where FluidLoc cable and ’05’ approvals are needed.

Buyer’s FAQ

Product Configuration

What is the purpose of the 230mm case length?

It allows the probe to reach through deep cavities or insulation to get the sensing tip close to the target shaft, which is critical for accurate measurement.

Is the entire 230mm length threaded?

No. Only the first 24mm from the base is threaded for mounting. The remainder is a smooth, unthreaded barrel.

Selection & Compatibility

Can I use this long probe on any machine?

Only if you have a deep, clear path to the shaft. Ensure your mounting hole depth and internal clearances can accommodate the 230mm length.

Does the long case affect the vibration signal?

No, the sensing performance is identical to shorter probes. The case only provides mechanical reach.

Ordering & Service

What support can I expect with my purchase?

This probe is covered by a 12-month warranty. We ship globally via FedEx, UPS, and DHL for dependable delivery to your site.
