Product details
Extended Cable Probe for Distant Monitoring Points

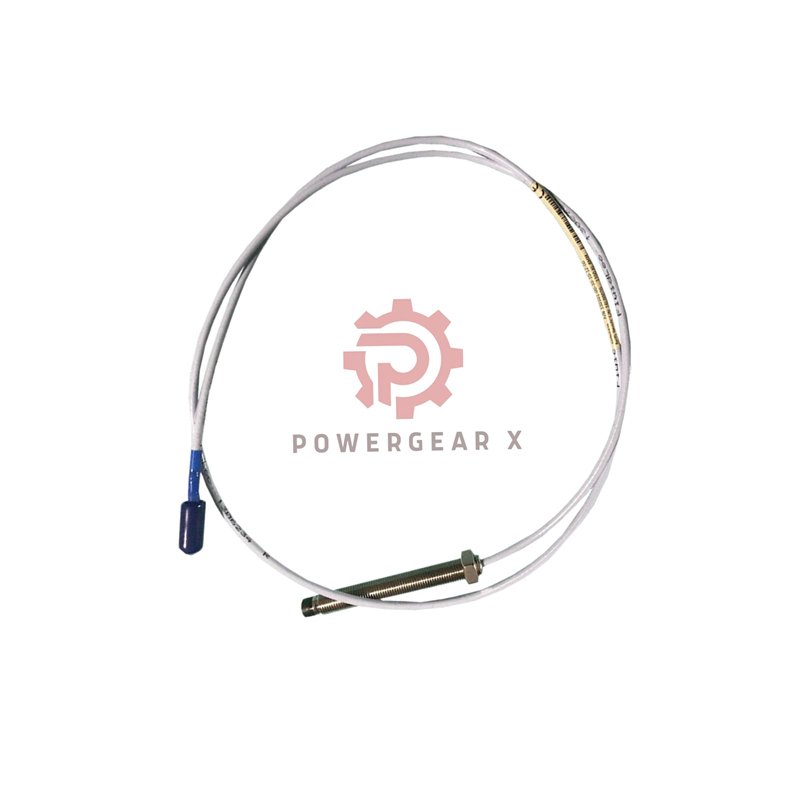

This Bently Nevada 3300 XL 11mm Proximity Probe offers maximum reach. Model 330702-00-26-90-01-00 includes a long 9.0-meter cable. It connects equipment far from your monitoring panel. The compact case fits confined installation spaces. A connector protector keeps the link safe. Get reliable vibration data over distance. For technical support: sales@powergearx.com or +86 18030005825.
Product Build Specification
- Bently Nevada 3300 XL Series Probe
- 330702: 11mm Size, 1/2-20 UNF, Armored
- 00: Unthreaded Part = 0.0 Inch
- 26: Overall Case = 2.6 Inches
- 90: Cable Length = 9.0 Meters
- 01: Connector = ClickLoc with Protector
- 00: Approvals = Not Required
Technical Performance Data
- Electrical Characteristics
- DC Resistance: 8.5 Ω ± 1.1 Ω (for 9m)
- Cable Type: 75Ω Triaxial, FEP Insulation
- Connector Safety: Includes protective cover
- Mechanical Build & Installation
- Mounting: 1/2-20 UNF Thread
- Case Material: AISI 304 Stainless Steel
- Tip: Durable PPS Plastic
- Install Torque: 15.2 N•m (133 in-lb)
- Min Bend Radius: 1.0 inch (25.4 mm)
- Operating Environment
- Temp Range: -51°C to +177°C
- Internal Seal: Viton O-ring
- Manufacturing: Made in USA
Installation & Purchase FAQ
When should I choose the 9-meter cable option?
Select the 9-meter cable when your monitoring system is located far from the machine. This is common in large facilities, outdoor installations, or when sensors route through cable trays to a central control room.
What is the purpose of the connector protector?
The connector protector (Option 01) is a plastic cover. It shields the electrical contacts from dust, moisture, and physical damage during storage, transport, and before final connection.
Does the longer cable affect measurement accuracy?
The longer cable increases resistance slightly, but the monitoring system compensates for this. Signal quality remains high for standard vibration monitoring, though very high-frequency response may be slightly reduced.
Can I shorten the cable myself if it’s too long?
No. The cable is factory-terminated and calibrated to its specific length. Cutting the cable will ruin the probe. Always order the exact length you need for your application.
What are the shipping and warranty terms?
We provide a full 12-month warranty against defects. Orders ship promptly via FedEx, UPS, or DHL with tracking. Contact us for specific delivery costs and times to your country or region.
How to Order
To purchase 330702-00-26-90-01-00 or discuss your application needs, contact our sales team. We help ensure you select the correct sensor configuration for reliable, long-term monitoring.
