Product Brief

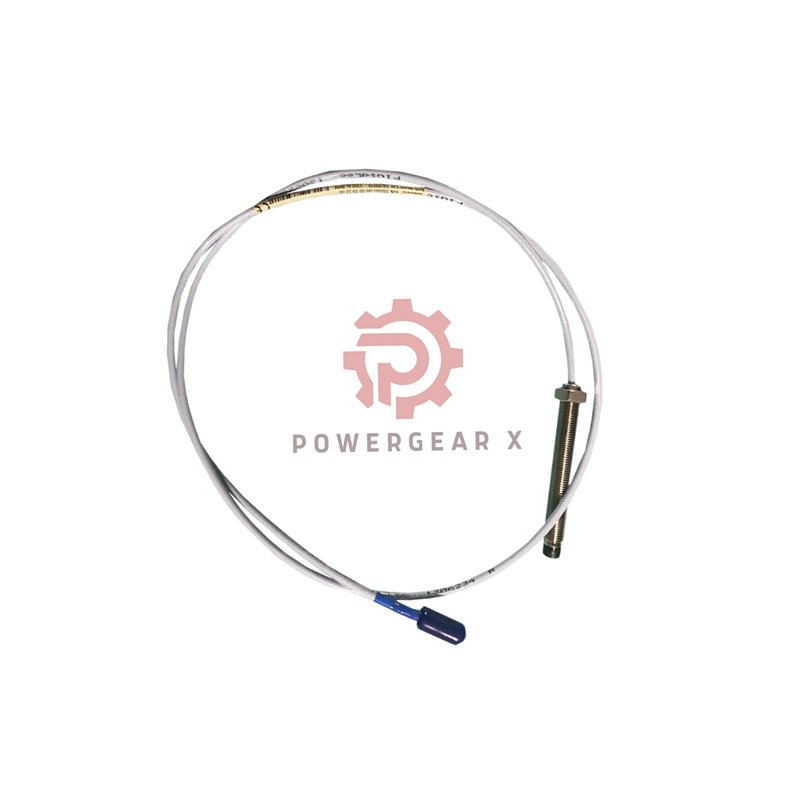

This is the Bently Nevada 330702-00-26-50-01-05. It’s a 5-meter, 11mm vibration probe. It comes with a connector protector for safety. This model holds multiple international safety certificates. It is made in the USA for high reliability.
Complete Model Structure
- Product Identification
- Manufacturer: Bently Nevada
- Full Model Code: 330702-00-26-50-01-05
- Series & Type: 3300 XL 11mm Proximity Probe
- Part Number Breakdown: 330702-00-26-50-01-05
- 330702: Base (11mm, 1/2-20 UNF, Armored)
- 00: No Unthreaded Section
- 26: Case is 2.6 inches long
- 50: Total Length is 5.0 meters
- 01: Connector = ClickLoc with Protector, Standard Cable
- 05: Agency Certs = Multiple (CSA, ATEX, IECEx)
- Essential Specifications
- Mounting: 1/2-20 UNF thread
- Max Thread Use: 0.750 inches
- Torque Setting: Apply 15.2 N•m (133 in-lb)
- Operating Temp: -51°C to +177°C
- Electrical Spec (5m): 7.2 Ω ± 0.8 resistance
- Cable: 75Ω Triaxial, Standard FEP type
- Bending Rule: Minimum 1.0 inch radius
- Sensing End: PPS material
- Housing: 304 Stainless Steel
- Connector Rule: Tighten by hand only
Key Feature Highlight
This probe combines a connector protector (Option 01) with hazardous area approvals (Option 05). It is a robust choice for certified plants needing extra connector durability.
Technical FAQ
What is the main advantage of Option 01 (connector with protector)?
It adds a physical guard around the ClickLoc connector. This prevents accidental damage during installation or maintenance in tight spaces, ensuring a reliable connection.
Does “Multiple Approvals” mean it’s safe for any hazardous area?
Yes, the 330702-00-26-50-01-05 is certified (Option 05) for use in explosive atmospheres as defined by CSA (Canada/US), ATEX (EU), and IECEx (International) standards when installed correctly.
Why is the probe length fixed at 5 meters?
The 5-meter integrated cable is precisely matched to a 5-meter Proximitor Sensor. This paired design ensures accurate signal transfer and system calibration. Do not mix lengths.
What is the difference between “standard cable” and “FluidLoc” cable?
This model uses standard FEP cable, which is good for general indoor use. FluidLoc cable has enhanced jacketing for direct exposure to oils, chemicals, or constant moisture.
How do I interpret the temperature classification (T1 to T5)?
It shows the max surface temperature near the probe. For example, T2 (up to 177°C) fits most applications. Match the “T” rating to your area’s safety document requirements.
Purchasing & Logistics
- Product: Bently Nevada 330702-00-26-50-01-05
- Warranty: Covered by our standard 12-month warranty.
- Shipping Methods: We dispatch via FedEx, UPS, or DHL for speed.
- Note: Confirm you need a 5-meter probe and hazardous area certification.
Interested in this model? Contact our team for a quote: Email Sales or WhatsApp +86 18030005825.
