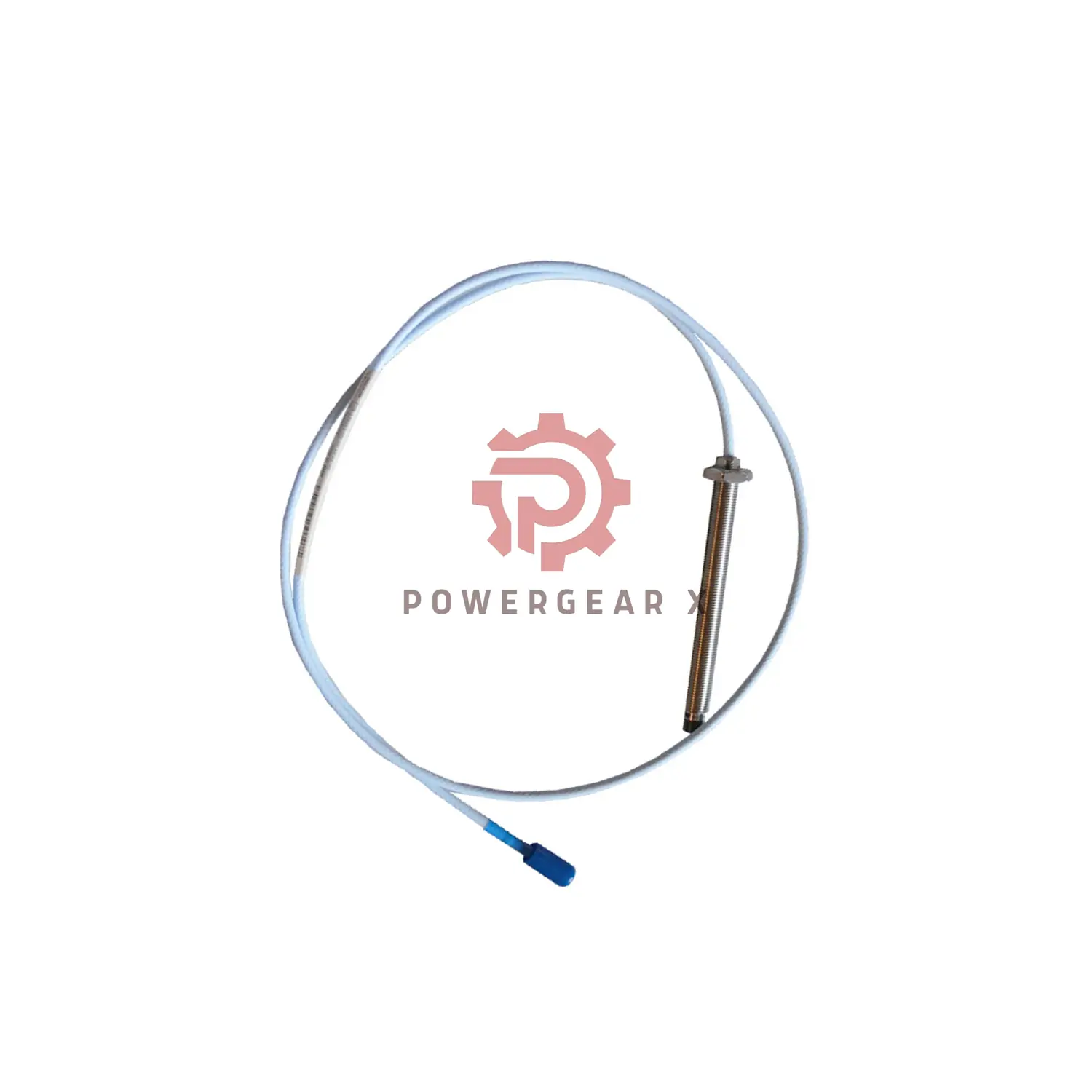

Bently Nevada 330103-03-12-05-02-00 | 3300 XL 8mm Vibration Sensor Probe

Versatile Mid-Range Vibration Probe

This Bently Nevada 3300 XL 8mm Proximity Probe offers a balanced design. It has a 30mm unthreaded section for common mounting depths. The shorter 0.5m cable keeps connections neat. It is perfect for general-purpose machinery monitoring. This probe delivers trusted performance for your plant.

Smart Features for Reliable Monitoring

• Optimized Length: 30mm unthreaded shank fits standard mounting bosses.
• Compact Connection: 0.5 meter cable reduces clutter near the machine.
• Industrial Strength: Stainless steel construction ensures long service life.
• Wide Compatibility: Works with all Bently Nevada 3300 XL monitor systems.
• Stable Signal: Provides consistent, accurate vibration data for analysis.

Model Configuration: 330103-03-12-05-02-00

• Brand: Bently Nevada
• Product Family: 330103 (3300 XL 8mm Probe, M10x1, Standard)
• Detailed Suffix Analysis:
  • -03: Unthreaded Length = 30 mm
  • -12: Case Length = 120 mm
  • -05: Cable Length = 0.5 Meter (1.6 Feet)
  • -02: Connector = ClickLoc, Standard Cable
  • -00: Agency Approvals = Not Required

Critical Performance Specifications

• Measurement Span: 2.0 mm linear displacement range.
• Calibration Gap: Set to 1.27 mm for standard vibration monitoring.
• Electrical Characteristic: DC Resistance: 7.45 Ω ± 0.5 Ω.
• Temperature Operation: From -52°C to +177°C (Standard).
• Material & Seal: SST body, PPS tip, Viton® O-ring seal.
• Mechanical Fitting: M10x1 mounting thread. Max 15mm depth.
• Installation Force: Recommended torque is 11.2 N•m.
• Humidity Resistance: Minimal signal drift in high humidity.

Direct Integration & Use

This probe connects directly to a 3300 XL Proximitor. Use shielded field wiring for longer runs. The standard approvals make it suitable for non-hazardous industrial areas. Follow the recommended gap setting for best results.

Your Purchase Includes

• One Bently Nevada 330103-03-12-05-02-00 proximity probe.
• Factory-fresh in original protective packaging.
• Protected by a full 12-month manufacturer warranty.
• Choice of reliable couriers: FedEx, UPS, or DHL.

Practical FAQ & Selection Support

Understanding Your Model

• Q: What applications suit the 30mm unthreaded length best?
• A: This is a versatile, common size. It is ideal for pumps, fans, and motors where the probe mounts through a standard-thickness housing or bracket to sense the shaft.
• Q: Why would I choose the “00” approval option?
• A: Choose “-00” if your machinery is installed in a safe, non-hazardous area (non-Ex area). It is a cost-effective option without extra certification markings.

Installation & Performance

• Q: The overall case is 120mm. Will this fit my existing hole?
• A: You must check your mounting hole depth. The 120mm includes the threaded and unthreaded sections. Ensure your hole is deep enough so the tip reaches the target.
• Q: Can I use this 0.5m cable if my monitor is far away?
• A: Yes. The 0.5m cable has a connector. You can attach longer, shielded field wiring from this connector to your monitor, up to a total of 305 meters.

Ordering Process

• Q: How do I ensure I get the correct probe for my machine?
• A: Confirm your existing probe’s part number or measure the unthreaded length and cable needed. Our team can help verify. We ship quickly with DHL, FedEx, or UPS and back every 330103-03-12-05-02-00 with a 12-month warranty. Contact us at sales@powergearx.com or +86 18030005825 for guidance.

Get Your Quote and Technical Support

Reach out for pricing, stock checks, or application advice.
Email Direct: sales@powergearx.com
Quick Chat on WhatsApp: +86 18030005825
