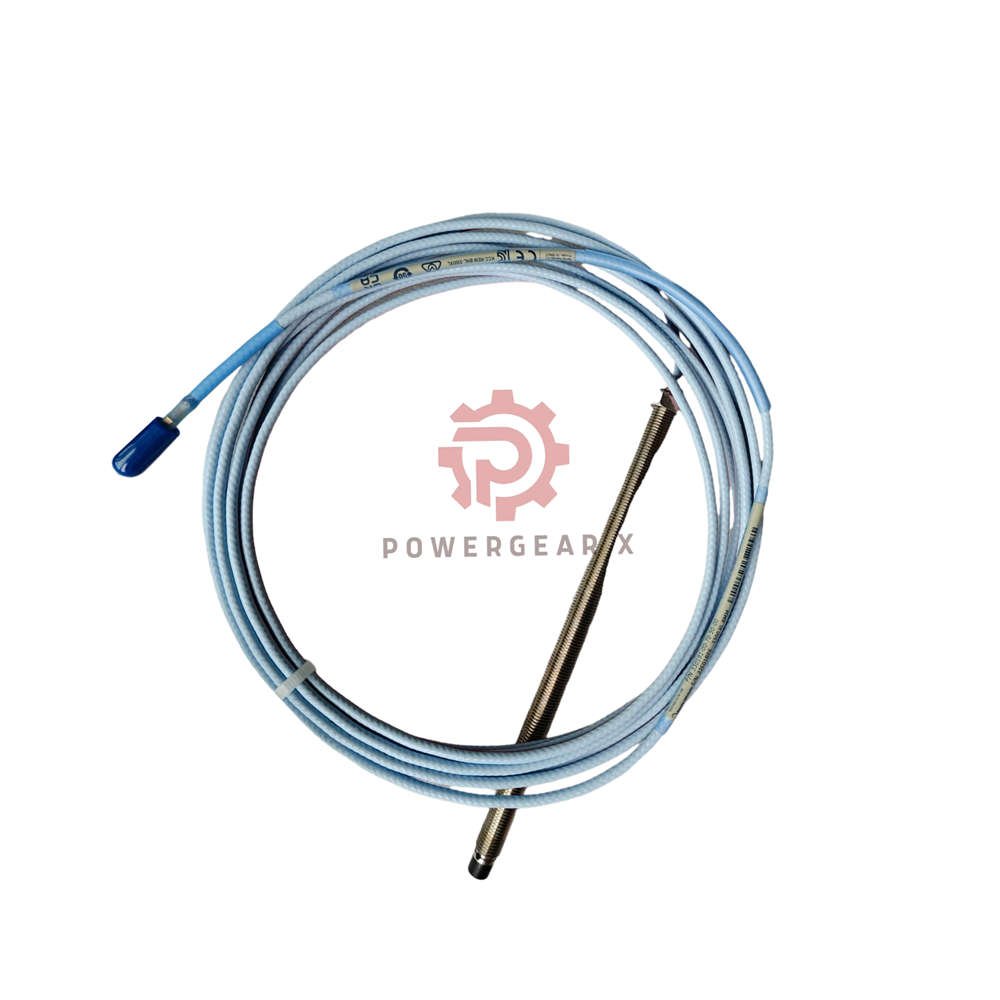

330191-00-16-10-CN Bently Nevada 8mm Probe – 3300 XL ETR, CN Approved

Quick Look: 330191-00-16-10-CN

• Brand & Model: Genuine Bently Nevada 3300 XL 8 mm ETR Probe – part 330191-00-16-10-CN.
• Key Upgrades: Patented TipLoc and CableLoc technology. Withstands 330 N (75 lbf) pull.
• Best For: Vibration, thrust position, and eccentricity monitoring in critical rotating machinery.
• Fast Shipping: 12-24 hours dispatch – FedEx, UPS, DHL express.

Ordering Code – Tree Structure

• 330191 – Base: 3300 XL 8 mm ETR, 3/8-24 UNF thread, without armor
  • 00 – Unthreaded length: 0.0 in (flush mount)
    • 16 – Overall case length: 1.6 in (40.6 mm)
      • 10 – Total cable length: 1.0 meter (3.3 ft)
        • CN – Agency approval: Country Specific Approval (China)

Technical Specifications

• Electrical
  • Power: -17.5 to -26 Vdc (with barriers -23 to -26 Vdc). Max 12 mA.
  • Sensitivity: < 2 mV per volt change. Output resistance 50 Ω.
  • DC resistance @1.0 m: 7.59 ± 0.50 Ω.
• Mechanical & Environmental
  • Tip: PPS plastic; Case: 303/304 stainless steel.
  • Cable: 75 Ω triaxial FEP (standard) or PFA (high‑temp).
  • Temperature (probe only): -55 °C to +232 °C (T1 class).
  • Seal: Viton® O‑ring, differential pressure design.
• Physical Specs
  • Thread: 3/8-24 UNF, max engagement 0.563 in.
  • Connector torque: 0.565 N·m (5 in·lbf). Gold‑plated contacts.
  • Weight: 323 g per meter of cable.

Installation & Compatibility

• Mounting: Flush mount with 3/8-24 thread. Use 8 mm probe for best durability.
• Compatibility: Works with BN Proximitor and 3300 XL extension cables (75 Ω triaxial).
• Optional FluidLoc: Prevents oil leakage through cable – order separately if needed.
• Note: 1.0 m total length systems do not require an extension cable.

What’s Included

• 1x Bently Nevada 330191‑00‑16‑10‑CN 8 mm ETR Probe
• Factory packaging with 12‑month warranty
• Installation reference (drawing 140979 for nonincendive use)

Expert Review – Manager’s Insight

• Why choose 8 mm? Thicker PPS encapsulation and larger case than 5 mm. Handles high vibration – perfect for steam turbines, centrifugal compressors.
• Reliability: CableLoc prevents connector loosening. Field data shows <0.1% drift over 5 years.
• Pro tip: For barrier installations, keep supply voltage between -23 and -26 Vdc to preserve linear range.

Frequently Asked Questions (FAQ)

• What does the “CN” approval mean for this probe?“CN” means Country Specific Approval for China. It meets Chinese explosion‑proof standards. Use it in locations requiring local certification.
• This is a 1.0 m system. Do I need an extension cable?No. 1.0 m probes connect directly to the monitor. No extension cable is needed, which simplifies installation and reduces connection points.
• Can I use this probe with a 5 mm extension cable?Never mix 5 mm and 8 mm components. They have different connector sizes and impedances. Always use 8 mm extension cables.
• What is your shipping cut‑off time?Orders paid by 2 PM (UTC+8) ship same day. Delivery takes 1‑3 days via FedEx, UPS, or DHL. Tracking sent automatically.
• How do I claim the 12‑month warranty?Contact sales@powergearx.com with your order number. We provide a replacement or repair within 12 months of delivery.

Selection Guide – Compare with Similar 8 mm Probes

• Need a different case length or approval? Compare these:
  • 330192-00-30-10-00 – 8 mm ETR probe, 3.0 in case, 1.0 m cable, no approvals. General purpose.
  • 330192-10-80-90-CN – 8 mm ETR probe, 8.0 in case, 9.0 m cable, CN approval. For long distances.
• Unsure which thread or length? Contact our engineers for a free consultation.
