Name: 330192-00-08-50-00 Bently Nevada 3300 XL 8 mm Armored ETR Probe
SKU: 330192-00-08-50-00
Availability: InStock

Product details

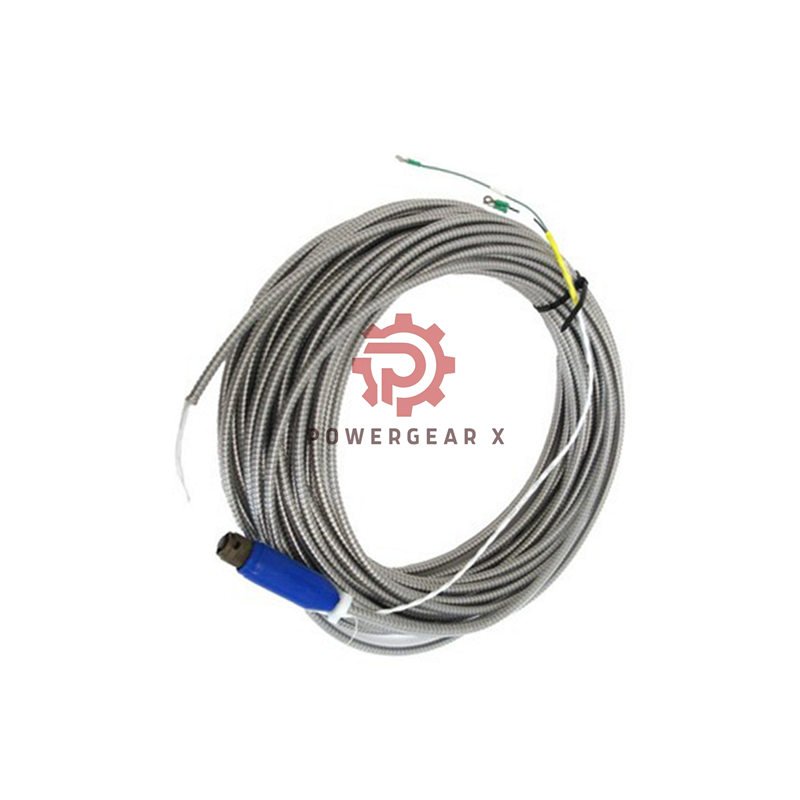

330192-00-08-50-00 Bently Nevada 3300 XL 8 mm Armored Probe

This 330192-00-08-50-00 is a Bently Nevada 3300 XL 8 mm ETR probe with flexible armor. It provides reliable vibration and position data for large rotating machinery. This genuine, factory-new sensor ships globally within 24 hours.

📦 Fast Shipping: 12-24 hour dispatch via FedEx, UPS, DHL worldwide.

📋 Product Description & Key Features

The 3300 XL 8 mm armored probe offers maximum cable protection. Its flexible AISI 302/304 stainless steel armor resists crushing and abrasion. The patented TipLoc design secures the tip to the body. Patented CableLoc provides 330 N (75 lbf) pull strength. This 8 mm probe features a thicker PPS tip for superior durability.

🔧 Technical Specifications (MECE)

General
- Brand: Bently Nevada (Baker Hughes)
- Model: 3300 XL 8 mm ETR Probe with Armor
- Part Number: 330192-00-08-50-00
- Type: Eddy Current Proximity Sensor
- Country of Origin: Made in U.S.A
Electrical & Mechanical
- Probe DC Resistance: 8.73 Ω ± 0.50 (5.0 m length)
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 303/304 Stainless Steel
- Thread Size: 3/8-24 UNF
- Max Thread Engagement: 0.563 inch
- Relative Humidity: < 3% ASF change at 93% humidity (56 days)
Temperature Range
- Standard Probe: -52°C to +177°C
- Extended Range Tip: -52°C to +218°C
- Extended Range Cable: -51°C to +260°C
- Note: Avoid below -34°C to protect pressure seal
Configuration – Part Number Decoded
- 330192 (Base: 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, with armor)
  - 00 (Unthreaded Length Option: Minimum 0.0 in)
  - 08 (Overall Case Length Option: 0.8 in)
  - 50 (Total Length Option: 5.0 meters / 16.4 feet)
  - 00 (Agency Approval Option: Not required)
Armor & Connector
- Armor Material: Flexible AISI 302/304 SST with FEP jacket
- Connector Material: Gold-plated brass/beryllium copper
- Max Connector Torque: 0.565 N•m (5 in•lbf)
- Pressure Seal: Viton® O-ring (not pressure tested)

✅ Installation & Maintenance

Mounting: Use 3/8-24 UNF thread. Max engagement 0.563 inch.
Positioning: 0.0 inch unthreaded section for close mounting.
Torque: Never exceed 0.565 N•m on connectors.
Maintenance: Inspect armor and connectors periodically.

🔌 Compatibility & System Integration

System: Designed for 3300 XL monitoring systems.
Proximitor: 5-meter probes work only with 5 meter Proximitor sensors.
Extension Cables: Use Bently Nevada extension cables (armored or standard).

📜 Certifications & Compliance

Hazardous Area – Intrinsic Safety (ia): Class I, Zone 0; Groups A, B, C, D, E, F, G (with barriers).
Hazardous Area – Nonincendive (nA/ec): Class I, Zone 2; Class 1, Division 2 (per drawing 140979).
Temperature Classification Schedule
- T5: -55°C to +40°C
- T4: -55°C to +80°C
- T3: -55°C to +120°C
- T2: -55°C to +177°C
- T1: -55°C to +232°C

📦 Package & Warranty

Condition: New & Original in Factory Packing.
Warranty: 12 months from delivery.
Included: 1x 330192-00-08-50-00 probe with armor, factory packaging.

🧠 Manager’s Insight & Applications

“The 330192 armored probe is our top pick for harsh environments. The 5-meter length suits large machines where the Proximitor must be mounted far from the probe tip. Flexible armor protects against cable damage during installation and operation. Remember: this 5m probe requires a 5-meter Proximitor for correct calibration. The extended temperature cable option handles extreme heat up to 260°C. For applications with mechanical abrasion or chemical exposure, this armored version outperforms standard probes.”

✅ Ideal Applications: Large steam turbines, gas turbines, centrifugal compressors, hydro generators.
✅ Harsh Environments: Areas with high vibration, cable pulling risk, or temperatures from -52°C to +218°C.
✅ Industries: Power generation, oil & gas exploration, steel mills, marine propulsion.

❓ FAQ – Expert Selection Guide

Q: Why choose this armored 5m probe over a standard 1m probe?A: Use the 5m version when your Proximitor must be located far from the probe. Armor adds protection in high-traffic areas. Choose standard for short runs in clean environments.
Q: Does this probe work with any 3300 XL Proximitor?A: No. The 5.0 meter probe works only with a 5 meter Proximitor. Using it with other Proximitors causes incorrect readings.
Q: How does this compare to the extension cable 330190-035-00-CN?A: This is a complete probe with integral armor. The 330190-035-00-CN is an extension cable without armor. Use cables to extend reach between probe and Proximitor.
Q: When should I choose the armored extension cable 330190-035-01-00?A: Pair this armored probe with the 330190-035-01-00 armored extension cable for full-length protection. This is ideal when the entire signal path is exposed to mechanical risks.
Q: What is the 12-month warranty coverage?A: It covers manufacturing defects and workmanship. We replace any faulty probe within one year of delivery. Fast warranty handling via FedEx, UPS, or DHL.
Q: Can I use this probe in high humidity areas?A: Yes. It passes IEC 68-2-3 humidity testing. Less than 3% scale factor change after 56 days at 93% humidity.
Q: What happens if I operate below -34°C?A: The Viton® pressure seal may fail prematurely. Keep above -34°C during operation to maintain sealing integrity.
