Bently Nevada 330102-36-80-10-02-05 | 8-Inch Armored Vibration Probe

Extra-Long Armored Probe for Imperial Systems

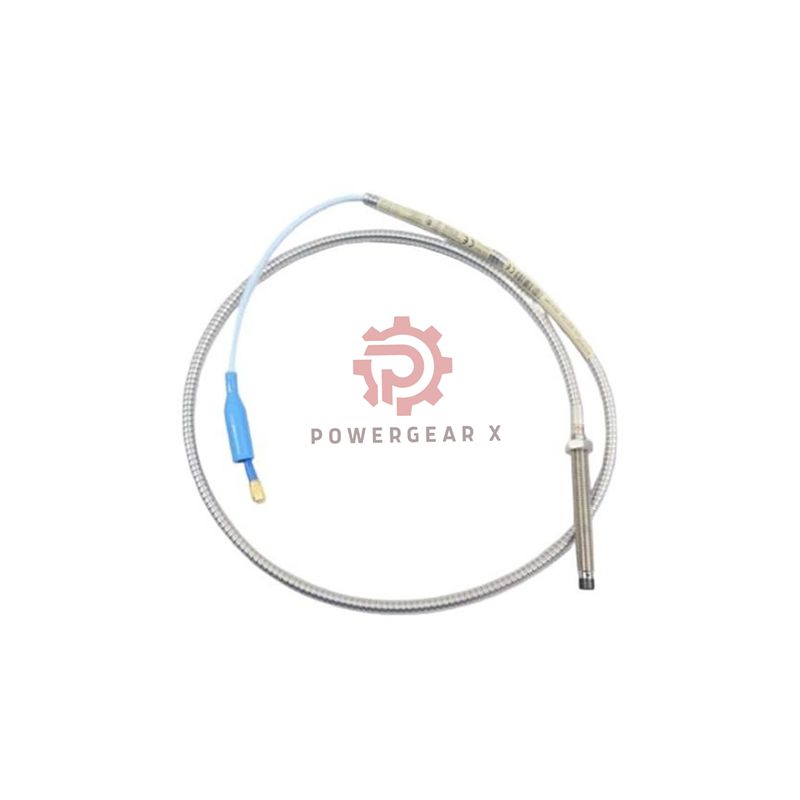

This Bently Nevada 3300 XL 8mm Proximity Probe is built for deep reach in tough conditions. Model 330102-36-80-10-02-05 features an 8.0-inch armored body with a 3.6-inch smooth shank. It uses a standard 3/8-24 UNF thread and includes global hazardous area certifications. This sensor is ideal for machinery requiring long probe penetration.

Configuration Details

• 330102 – Armored 8mm Probe (3/8-24 UNF)
  • 36 – Unthreaded Shank: 3.6 inch
  • 80 – Total Case: 8.0 inch (203mm)
  • 10 – Cable: 1.0 Meter
  • 02 – Connector: ClickLoc
  • 05 – Safety Certs: CSA, ATEX, IECEx

Key Technical Parameters

• Linear Range: 2.0 mm.
• Set Gap: 1.27 mm.
• Operating Temp: -52°C to +177°C.
• Electrical Spec: 7.59 Ω (1m cable).
• Mounting Thread: 3/8-24 UNF.
• Max Thread In: 0.563 inch.
• Protection: Full-length armor.
• Approvals: Complete global set.

Simple Installation Steps

• Guide the long 3.6-inch smooth shank through your mount.
• Screw the threaded end into a 3/8-24 UNF hole.
• Limit engagement to 0.563 inch maximum.
• The armor sleeve protects against physical damage.
• Connect the 1.0m cable to the proximitor.

Expert Q&A

What is the main use for an 8.0-inch probe?

This extra length is for deep-bore applications. It is used in large turbines, generators, or compressors where the sensing target is far inside the housing.

How does the armor benefit installation?

The armor acts as a rigid conduit. It protects the probe from being bent or crushed during installation and from vibration in service.

Why is the smooth shank 3.6 inches long?

The long smooth section allows the probe to pass through very thick mounting plates, cooling jackets, or multiple adapters before threading in.

Are the certifications valid worldwide?

Yes. The CSA (North America), ATEX (Europe), and IECEx (International) approvals make this probe suitable for almost any hazardous area globally.

What is your shipping and support policy?

All products come with a 12-month manufacturer’s warranty. We ship promptly worldwide using FedEx, UPS, and DHL express services.

How to Purchase

Select this model for deep, imperial-threaded applications needing armor protection. Confirm the 8.0-inch length and 3.6-inch shank fit your mechanical design.

For pricing and availability: sales@powergearx.com or WhatsApp +86 18030005825.
