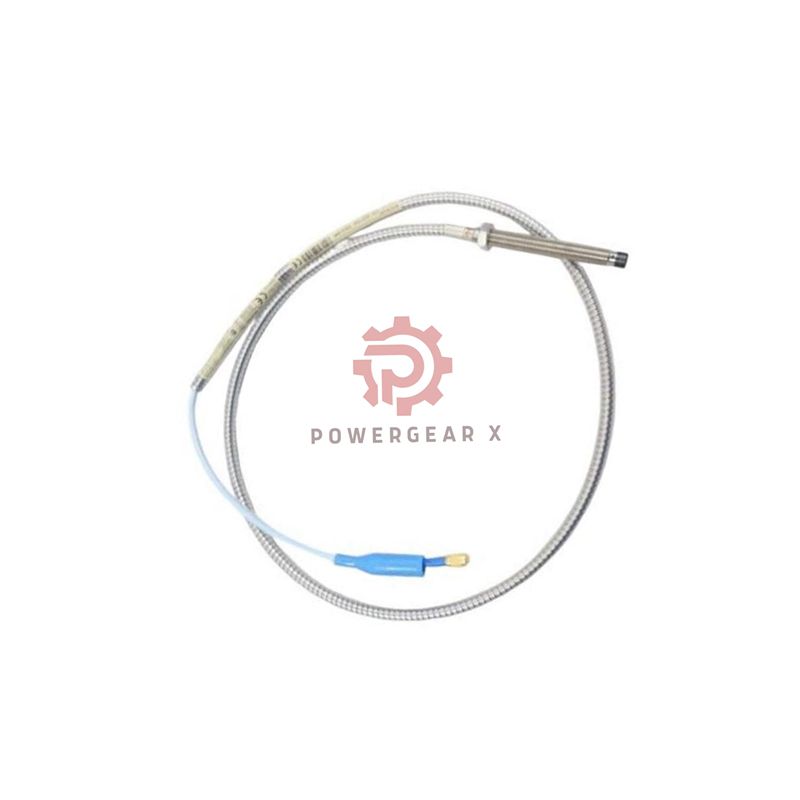

Bently Nevada 330102-00-20-05-01-05 | Short Armored ATEX Vibration Probe

Compact & Certified Armored Probe for Tight Spaces

Protect your machinery where space is limited. This 3300 XL 8mm Proximity Probe offers armor and global certifications in a short 2-inch package. It delivers reliable vibration monitoring for hazardous areas and rugged installations. Ensure compliance and durability with this precision sensor from Bently Nevada.

Model Configuration: 330102-00-20-05-01-05

This part number defines a specific armored probe. Each segment is explained below:

• 330102 – Base Model: 3300 XL 8mm Probe, 3/8-24 UNF thread, armored.
• 00 – Unthreaded Length: 0.0 inches (fully threaded).
• 20 – Total Case: 2.0 inches (approx. 50.8 mm).
• 05 – Cable Length: 0.5 meter (1.6 feet).
• 01 – Connector: ClickLoc with protector.
• 05 – Approvals: CSA, ATEX, IECEx certified.

Essential Technical Specifications

• Manufacturer: Bently Nevada
• Product Code: 330102-00-20-05-01-05
• Probe Type: Short Armored Proximity Vibration Sensor
• Thread Type: Imperial 3/8-24 UNF.
• Measurement Range: Linear from 0.25 mm to 2.3 mm.
• Setup Gap: Optimize at 1.27 mm (50 mils).
• Probe Resistance: 7.45 Ω (±0.50) for 0.5m cable.
• Key Features: Armor, connector protector, multi-certified.

Durability & Compliance Highlights

• Armor: External metal armor for impact resistance.
• Temperature Rating: Operates from -52°C to +177°C.
• Seal Integrity: Viton O-ring; avoid prolonged exposure below -34°C.
• Compact Size: 2-inch case ideal for confined mounting locations.
• Global Approvals: Certified for use in hazardous areas worldwide.

What You Get & Our Guarantee

• One premium 3300 XL 8mm Probe, model 330102-00-20-05-01-05.
• Includes armored body, 0.5m cable, and protected connector.
• Customer Assurance: Protected by a 12-month warranty.
• Fast Logistics: Shipped internationally via FedEx, UPS, or DHL.

Targeted FAQs for This Configuration

Specifications & Use Case

• Why choose a 2-inch case length with armor?
• This combination is perfect for tight spaces where a standard probe might be vulnerable. The armor adds protection without adding extra length, fitting into compact housings.
• What is the advantage of a 0.5m cable with a connector protector?
• The short cable is for installations where the junction box is very close. The connector protector safeguards the connection point in cramped, high-activity areas.

Certifications & Compatibility

• Are all components (armor, cable) covered by the ATEX certification?
• Yes. The certification (suffix -05) applies to the complete assembled probe as supplied, including its armored case and integral cable.
• Can I use this 3/8-24 UNF probe in a metric M10 threaded hole?
• No. The threads are different and incompatible. You must use the correct mounting adapter or order a metric-threaded probe model (330103 series).

Ordering & Support

• What if I need a longer cable for my application?
• You must select the correct model at the time of purchase. For a 1.0m cable, you would look for a model with the suffix “-10” in the cable length position.

Need help matching this probe to your system?
Contact our technical sales team for expert guidance.
