Product details

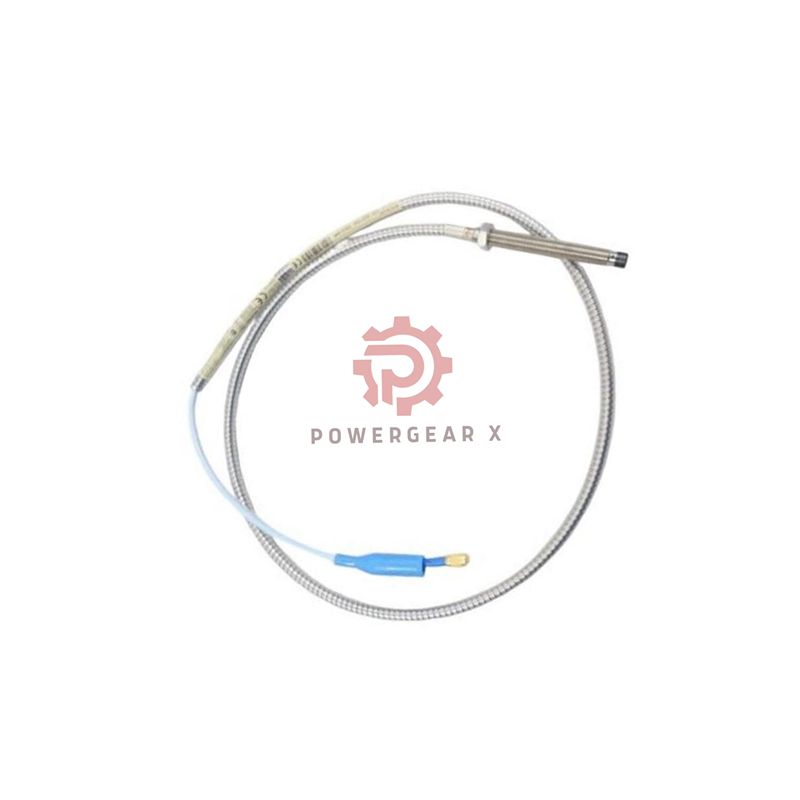

Armored Vibration Sensor for Standard Industrial Protection
Add an extra layer of durability to your monitoring system. This 3300 XL 8mm Proximity Probe features a protective metal armor. It is designed for general industrial areas where physical damage is a concern. Deliver reliable shaft vibration and position data with enhanced sensor lifespan. A robust choice from Bently Nevada for demanding plants.
Model Configuration: 330102-08-15-10-02-00
This part number describes an armored probe with specific dimensions. Review each option below:
- 330102 – Base Model: 3300 XL 8mm Probe, 3/8-24 UNF thread, armored.
- 08 – Unthreaded Section: 0.8 inches (approx. 20.3 mm).
- 15 – Total Case Length: 1.5 inches (approx. 38.1 mm).
- 10 – Cable: 1.0 meter (3.3 feet) integral.
- 02 – Connector: Standard ClickLoc connector.
- 00 – Approvals: No special agency certifications required.
Key Technical Specifications
- Manufacturer: Bently Nevada
- Product Number: 330102-08-15-10-02-00
- Probe Type: Armored 8mm Proximity Vibration Probe
- Thread Standard: Imperial 3/8-24 UNF.
- Linear Range: 0.25 mm to 2.3 mm from target.
- Recommended Gap: Set to 1.27 mm (50 mils).
- Electrical Data: DC Resistance: 7.59 Ω (±0.50).
- Key Build: PPS tip, stainless steel case with external armor.
- Cable Length: 1.0 meter attached cable for flexible routing.
Durability & Operating Conditions
- Armor Benefit: Protects against impact, abrasion, and crushing.
- Temperature Range: Standard operation from -52°C to +177°C.
- Environmental Seal: Viton O-ring; avoid installation below -34°C.
- Mounting: 3/8-24 UNF thread. Maximum engagement 0.563 inches.
- Application: Suitable for general industrial and non-hazardous areas.
Complete Package & Support
- One industrial-grade 3300 XL 8mm Probe, model 330102-08-15-10-02-00.
- Includes armored body, 1.0m standard cable, and ClickLoc connector.
- Warranty: Full 12-month coverage for material and workmanship.
- Shipping: Fast international delivery via FedEx, UPS, and DHL.
Practical FAQs for Armored Probes
Design & Selection
- Why does this armored probe have a 0.8-inch unthreaded section?
- The smooth armored section allows the probe to pass through a mounting bracket or a clearance hole. The threads begin afterwards to secure the probe in the final tapped hole.
- Should I choose armored or non-armored for my plant?
- Choose armor if the probe is in a high-traffic area, near moving parts, or exposed to potential impact. For clean, protected enclosures, standard probes may suffice.
Installation & Maintenance
- Does the armor make installation different?
- The installation steps are the same. Ensure the mounting hole is large enough for the armored diameter to pass through before the threads engage.
- Can the armored casing be repaired if dented?
- No. The armor is integral. Significant physical damage usually requires probe replacement to ensure measurement integrity.
Ordering & Specifications
- What does ’00’ for agency approval mean for this armored probe?
- It is built to general industrial standards, not certified for explosive atmospheres. For hazardous locations, select a model with suffix ‘-05‘ (CSA/ATEX/IECEx).
Unsure if armor is needed for your application?
Our engineers can provide a recommendation.
