Product details
Compact Armored Probe for Imperial Applications

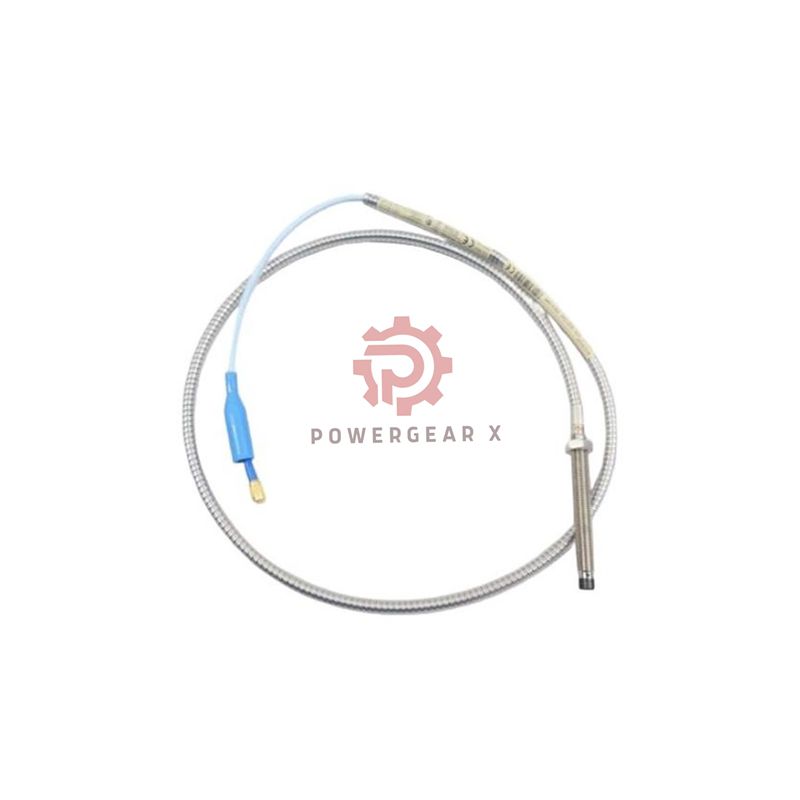

This Bently Nevada 3300 XL 8mm Proximity Probe offers robust protection in a short body. Model 330102-00-30-10-02-00 features a 3.0-inch armored case with a 3/8-24 UNF thread. It is fully threaded for secure mounting in standard holes. This sensor is ideal for general-purpose vibration monitoring in non-hazardous areas.
Part Number Structure
- 330102 – Armored 8mm Probe, 3/8-24 UNF
- 00 – Unthreaded: 0.0 inch (Fully Threaded)
- 30 – Case Length: 3.0 inch (76mm)
- 10 – Cable: 1.0 Meter
- 02 – Connector: ClickLoc
- 00 – Approvals: Standard (Not Required)
Technical Summary
- Measurement Range: 2.0 mm.
- Install Gap: 1.27 mm.
- Temperature: -52°C to +177°C.
- Resistance: 7.59 Ω (1m cable).
- Thread: 3/8-24 UNF.
- Max Engagement: 0.563 inch.
- Protection: Full metal armor.
- Humidity: Excellent stability.
Installation Guide
- The 3.0-inch case is completely threaded.
- Screw directly into a 3/8-24 UNF tapped hole.
- Do not exceed 0.563 inch of thread engagement.
- The armor protects the probe body from damage.
- Route the 1.0m cable to your monitor.
Frequently Asked Questions
What is the advantage of a fully threaded 3-inch probe?
It provides maximum thread contact in shallow mounting holes. This design offers a strong, secure fit in standard-thickness brackets or housings.
When do I need armor on the probe?
Use armored probes in areas with high vibration, potential for physical impact, or where cables may be accidentally pulled or crushed.
Is this probe suitable for hazardous areas?
No. This model has approval option ’00’, meaning it has no special certifications. Use it only in standard, non-hazardous industrial locations.
Can I use this with metric mounting holes?
No. The 3/8-24 UNF thread is imperial. You will need an adapter or a specifically tapped hole to use this probe in a metric system.
What is your delivery and warranty promise?
We stand behind our products with a 12-month quality warranty. Fast worldwide delivery is available via FedEx, UPS, and DHL.
Choosing This Model
Select model 330102-00-30-10-02-00 for general imperial applications needing armor protection. Ensure your site does not require hazardous area certifications.
