Product details

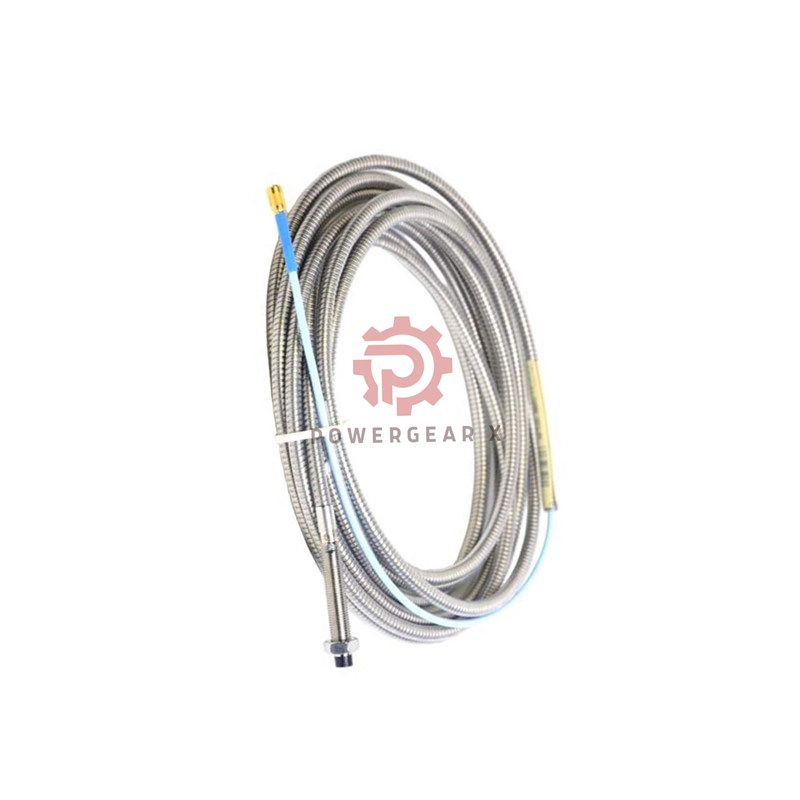

Bently Nevada Fully Threaded Long Armored Probe
Heavy-duty long-length 3300 XL 8mm Proximity Probe with connector protection. Model 330102-00-72-10-01-05 features a 7.2-inch fully threaded armored case and a 1-meter cable with a connector protector. Globally certified for hazardous areas.
Product Code Breakdown
- 330102 – Armored Probe with 3/8-24 UNF Thread
- 00 – Unthreaded Length: 0.0 inch (Fully Threaded)
- 72 – Case Length: 7.2 inch (~183 mm)
- 10 – Cable: 1.0 meter (3.3 feet)
- 01 – Connector: ClickLoc with Protector
- 05 – Approvals: CSA, ATEX, IECEx
Core Technical Specifications
- Brand: Bently Nevada
- Series: 3300 XL Monitoring System
- Complete Model: 330102-00-72-10-01-05
- Probe Type: 8mm Armored Proximity
- Measurement Range: 2.0 mm linear
- Setup Gap: 1.27 mm (50 mils)
- Electrical Characteristic: 7.59 Ω ± 0.50
- Thread: 3/8-24 UNF Imperial
- Case Length: 7.2 inch (Fully Threaded)
- Connector Feature: Includes Protective Boot
Installation Details
- Mounting Thread: 3/8-24 Unified Fine
- Maximum Engagement: 0.563 inch
- Case Design: Threads run the full 7.2-inch length.
- Connector Protector: Guards against dust and impact.
- Application: For deep, threaded mounting passages.
International Certifications
- Certification Code 05: CSA, ATEX, and IECEx Approved
- Hazardous Area Rating: Intrinsically Safe (ia)
- Also Compliant: Non-Incendive (nA/ec)
- Groups: Suitable for A, B, C, D, E, F, G
Order & Delivery Information
- One Factory Original 3300 XL 8mm Proximity Probe
- Complete Certification Documentation
- 12-Month Manufacturer Warranty
- Fast Shipping Options: FedEx, UPS, DHL
- Expert Support: Available for Configuration Questions
Frequently Asked Questions
What is the connector protector?
It is a protective boot or cover that snaps onto the ClickLoc connector. It shields the electrical contacts from dirt, moisture, and physical damage during handling and operation.
Why is the entire 7.2-inch case threaded?
Full threading allows for precise depth adjustment over a long range. This is useful when the probe must pass through a thick, threaded bushing or adapter to reach the measurement point.
Does the armor cover the entire 7.2-inch length?
Yes, the armored sleeve extends along the full case length, providing continuous mechanical protection in challenging environments.
What is a key advantage of the connector protector in the field?
It prevents accidental disconnection and protects against contamination in dusty or oily environments, improving long-term reliability.
How do I select the right length for a fully threaded probe?
Measure the total depth of the threaded path the probe must travel through. Choose a model like the 330102-00-72-10-01-05 where the case length exceeds this depth to ensure the tip can reach the target.
