Rugged & Sealed Sensor for Harsh Industrial Environments

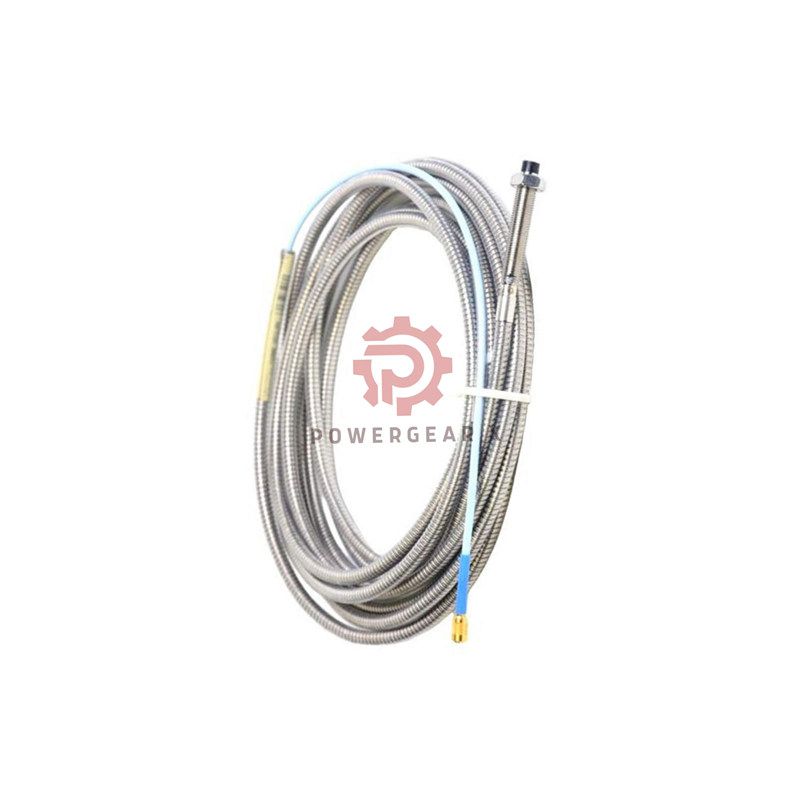

Deploy in wet, oily, or abrasive conditions with confidence. This 3300 XL 8mm Proximity Probe combines a 4-inch armored body with a FluidLoc cable. It offers maximum protection against physical and chemical damage. Ensure reliable vibration monitoring in the toughest plant areas. A durable, high-performance solution from Bently Nevada.
Model Configuration: 330102-00-40-10-11-00
This part number specifies a probe built for harsh duty. Each option is detailed below:
- 330102 – Base Model: 3300 XL 8mm Probe, 3/8-24 UNF thread, armored.
- 00 – Unthreaded Length: 0 inches (fully threaded).
- 40 – Total Case: 4.0 inches (approx. 101.6 mm).
- 10 – Cable: 1.0 meter (3.3 feet) attached.
- 11 – Connector/Cable: ClickLoc with protector & FluidLoc cable.
- 00 – Approvals: For general industrial areas.
Core Technical & Feature Data
- Manufacturer: Bently Nevada
- Product No.: 330102-00-40-10-11-00
- Probe Type: Armored Proximity Probe with FluidLoc Cable
- Thread Standard: Imperial 3/8-24 UNF.
- Sensing Range: Linear from 0.25 mm to 2.3 mm.
- Setup Gap: Optimize at 1.27 mm (50 mils).
- Electrical Value: DC Resistance: 7.59 Ω (±0.50).
- Key Features: 4-inch armor, FluidLoc cable, connector protector.
Enhanced Environmental Protection
- FluidLoc Cable: Resists oil, moisture, and many chemicals.
- Armored Case: 4-inch armored body for impact protection.
- Temperature Range: Operates from -52°C to +177°C.
- Seal System: Viton O-ring; avoid prolonged exposure below -34°C.
- Connector Protector: Guards the electrical connection point.
Complete Package & Guarantee
- One heavy-duty 3300 XL 8mm Probe, model 330102-00-40-10-11-00.
- Includes armored body, 1.0m FluidLoc cable, and protected connector.
- Warranty: Full 12-month manufacturer warranty.
- Global Shipping: Fast delivery via FedEx, UPS, or DHL.
Specialist FAQs for Harsh-Duty Probes
Feature & Application Guidance
- What is the main advantage of FluidLoc cable over standard cable?
- FluidLoc cable has a special jacket that resists degradation from oils, coolants, and solvents. It lasts much longer in wet or chemically exposed environments.
- Is the 4-inch armored body fully threaded?
- Yes, suffix -00 indicates it is fully threaded. Remember, only engage the maximum of 0.563 inches of thread. The extra length provides reach.
Installation & Compatibility
- Can I use this probe in a food & beverage plant washdown area?
- The FluidLoc cable offers good chemical resistance. For sanitary washdowns, verify the specific fluid compatibility and consider additional protective conduit.
- Does the connector protector make connections difficult?
- No. It is a removable shell that protects the connector when not mated. You can easily remove it to make the connection, then reinstall it for protection.
Selection & Ordering
- When should I choose this model over a shorter armored probe?
- Choose this 4-inch model when you need both environmental protection (FluidLoc) and the ability to reach through a deep mounting structure to the measurement point.
