Armored Medium-Length Probe with Connector Protection

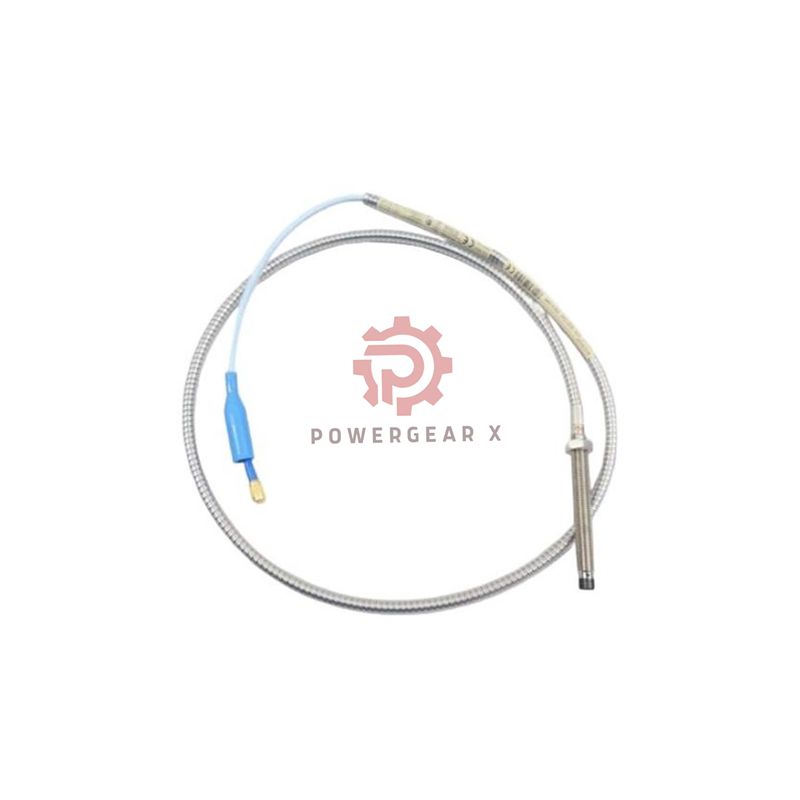

This Bently Nevada 3300 XL 8mm Proximity Probe delivers durability and protection. Model 330102-00-50-10-01-00 features a 5.0-inch armored body and includes a connector protector. Its 3/8-24 UNF thread suits imperial machinery. This sensor is built for reliable vibration monitoring in standard industrial environments.
Part Number Analysis
- 330102 – Armored 8mm Probe (3/8-24 UNF)
- 00 – Unthreaded: 0.0 inch (Fully Threaded)
- 50 – Case Length: 5.0 inch (127mm)
- 10 – Cable: 1.0 Meter
- 01 – Connector: ClickLoc with Protector
- 00 – Approvals: Standard (Not Required)
Core Specifications
- Sensing Range: 2.0 mm linear.
- Set Point: 1.27 mm gap.
- Temperature: -52°C to +177°C.
- Resistance: 7.59 Ω (1m cable).
- Thread: 3/8-24 UNF.
- Max Engagement: 0.563 inch.
- Features: Full armor + connector guard.
Installation Steps
- Screw the fully threaded 5.0-inch probe into place.
- Engage no more than 0.563 inch of threads.
- The armor shields the probe from physical harm.
- Use the included connector protector before wiring.
- Connect the 1.0m cable to your monitoring system.
FAQ
What is the benefit of connector option ’01’?
Option ’01’ includes a plastic protector that snaps onto the ClickLoc connector. It prevents damage to the pins during shipping, handling, and before final connection.
Is a 5.0-inch probe a common size?
Yes, 5.0 inches (127mm) is a versatile medium length. It fits many pump, motor, and compressor applications designed with imperial threads.
Do I need special tools to install the armor?
No. The armor is a fixed, integral part of the probe body. You install it as one complete unit just like a standard probe.
Can this probe be used in wet locations?
The probe itself is humidity-resistant. However, for submerged or high-pressure washdown areas, additional sealing at the connector is required.
What are your shipping and warranty terms?
We provide a 12-month product warranty for peace of mind. Fast global shipping is handled by FedEx, UPS, and DHL.
Ordering Guidance
Choose model 330102-00-50-10-01-00 for imperial applications needing armor and connector protection. Confirm the 5.0-inch length fits your mounting depth.
