Complete Protection Package for Hazardous Areas

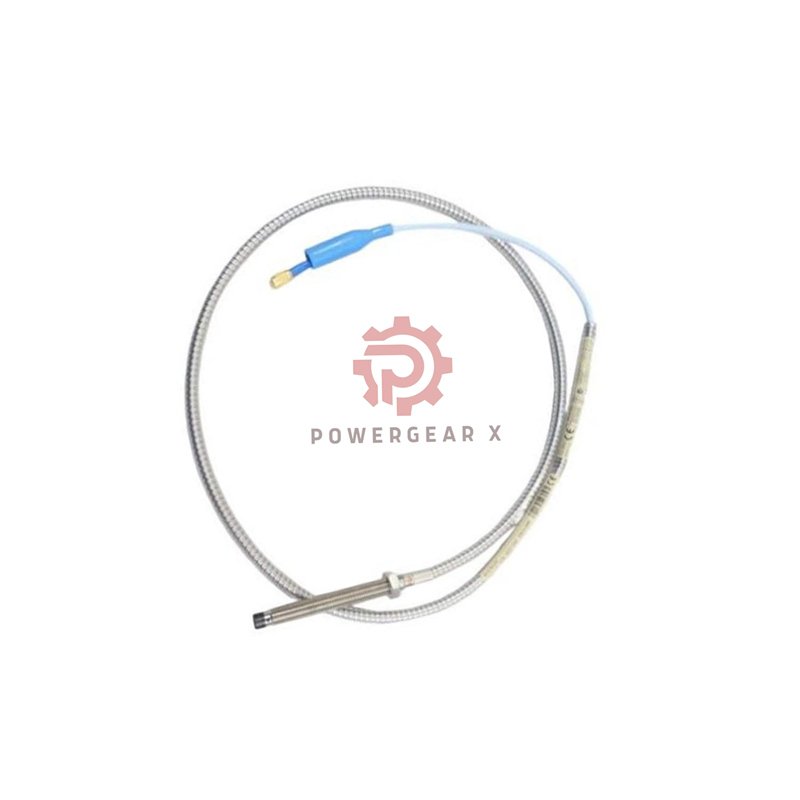

This Bently Nevada 3300 XL 8mm Proximity Probe is the ultimate choice for tough, certified environments. Model 330102-00-50-10-01-05 combines a 5-inch armored body, a connector protector, and full global approvals. Its 3/8-24 UNF thread and 1-meter cable offer a robust, ready-to-install solution.
Product Code Decoded
- 330102 – Armored 8mm Probe (3/8-24 UNF)
- 00 – Unthreaded: 0.0 in (Fully Threaded)
- 50 – Case Length: 5.0 in (127mm)
- 10 – Cable: 1.0 Meter
- 01 – Connector: ClickLoc with Protector
- 05 – Approvals: CSA, ATEX, IECEx
Technical Snapshot
- Linear Range: 2.0 mm.
- Target Gap: 1.27 mm.
- Operating Temp: -52°C to +177°C.
- Electrical Spec: 7.59 Ω (1m cable).
- Mounting: 3/8-24 UNF thread.
- Max Thread In: 0.563 in.
- Protection: Armor + Connector Guard.
- Certifications: Full hazardous area suite.
Quick Installation
- Install in a 3/8-24 UNF tapped hole.
- Keep thread engagement under 0.563 inch.
- The metal armor protects the probe shaft.
- Use the connector protector until final wiring.
- Connect the 1.0m cable to your system.
Expert Q&A
What makes this model a “complete package”?
It includes three key protections: physical (armor), connector safety (protector), and legal (global certifications). This makes it ideal for critical, regulated installations.
Is the 5-inch length a standard for pumps and motors?
Yes. A 5-inch body is a very common size for medium-frame pumps, motors, and compressors using imperial mounting standards.
Why is the connector protector important?
It prevents damage to the delicate coaxial pins during storage, transport, and installation. This ensures a reliable electrical connection when you are ready to wire.
Can I use this probe in Zone 1 areas?
Yes. The ATEX and IECEx certifications cover Zone 0, 1, and 2. The CSA certification covers Class I, Division 1 and 2. Always verify against your local area classification.
What is your delivery and guarantee?
Every order is backed by a 12-month manufacturer’s warranty. We ensure fast delivery worldwide using FedEx, UPS, and DHL.
How to Purchase
Select model 330102-00-50-10-01-05 for fully protected, globally certified applications with imperial threads. Confirm the 5-inch length fits your design.
