Protected Connector Vibration Probe for Industrial Use

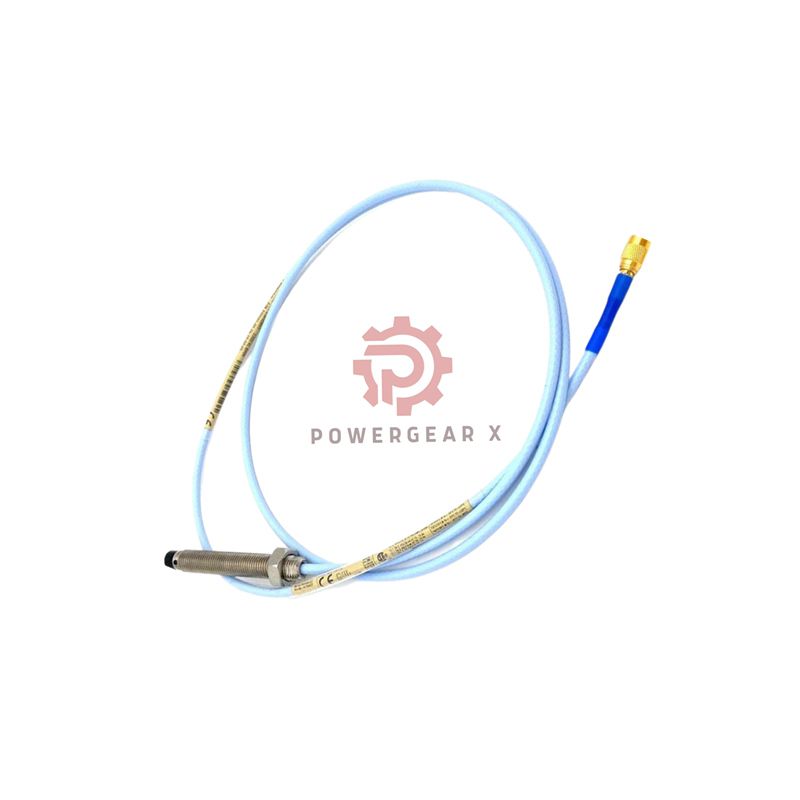

The Bently Nevada 330101-00-40-10-01-00 is a standard 3300 XL 8mm Probe. It includes a special connector protector. This makes it ideal for harsh industrial environments. The probe has a 4.0-inch case and 1-meter cable. It offers reliable vibration monitoring for various machines. This model does not require special safety agency approvals.
Complete Product Code Breakdown
- Full Model Number: 330101-00-40-10-01-00
- 330101: 3300 XL 8 mm Probe, No Armor, 3/8-24 Thread
- -00: Unthreaded Length Option = 0.0 inches
- -40: Overall Case Length Option = 4.0 inches
- -10: Total Cable Length Option = 1.0 meter
- -01: Connector Option = ClickLoc with Protector
- -00: Agency Approval Option = Not Required
Technical Performance Data
- Operating Range: 2.0 mm (80 mils) linear measuring distance
- Setup Point: Best performance at -9 Vdc gap voltage
- Signal Output: 7.87 V/mm sensitivity with ±5% tolerance
- Signal Accuracy: Less than ±0.025 mm deviation from straight line
- Temperature Limits: Works from -52°C to +177°C normally
- Construction Materials:
- Tip: Durable Polyphenylene Sulfide (PPS) Plastic
- Body: Strong AISI 303/304 Stainless Steel
- Seal: Reliable Viton® O-ring
- Electrical Properties:
- Probe Resistance: 7.59 Ω ± 0.50 Ω
- Maximum Cable Run: 305 meters to monitor
- Recommended Wire: 16-24 AWG shielded cable
- Physical Specifications:
- Mounting Thread: Standard 3/8-24 UNF
- Maximum Thread Depth: 0.563 inches
- Installation Torque: 100 in•lbf recommended
Package & Service Information
- One (1) Bently Nevada 330101-00-40-10-01-00 vibration probe
- Includes ClickLoc connector with protective cover
- 12-month quality warranty included
- Fast shipping via FedEx, UPS, or DHL carriers
- Typical uses: Pumps, motors, fans, compressors
Professional Questions & Answers
Product Features
- What makes the “-01” connector option special?
It adds a protective cover over the ClickLoc connector. This prevents damage from impacts, dust, and moisture during operation.
- Is this probe suitable for outdoor installation?
Yes. The stainless steel body and connector protector provide good protection against weather and environmental exposure.
Technical Specifications
- What does “agency approval not required” mean?
It means this probe is for use in standard industrial areas. It does not have certifications for explosive or hazardous locations.
- Can I use this with a 9-meter extension cable?
Yes. You can connect it to longer cables. The total system length should follow the 305-meter maximum guideline.
Ordering & Support
- What is your return policy for this probe?
We accept returns within 30 days for unused items. The 12-month warranty covers manufacturing defects.
Need help selecting the right probe model? Contact our technical team for expert advice. Email sales@powergearx.com or message on WhatsApp: +86 18030005825.
