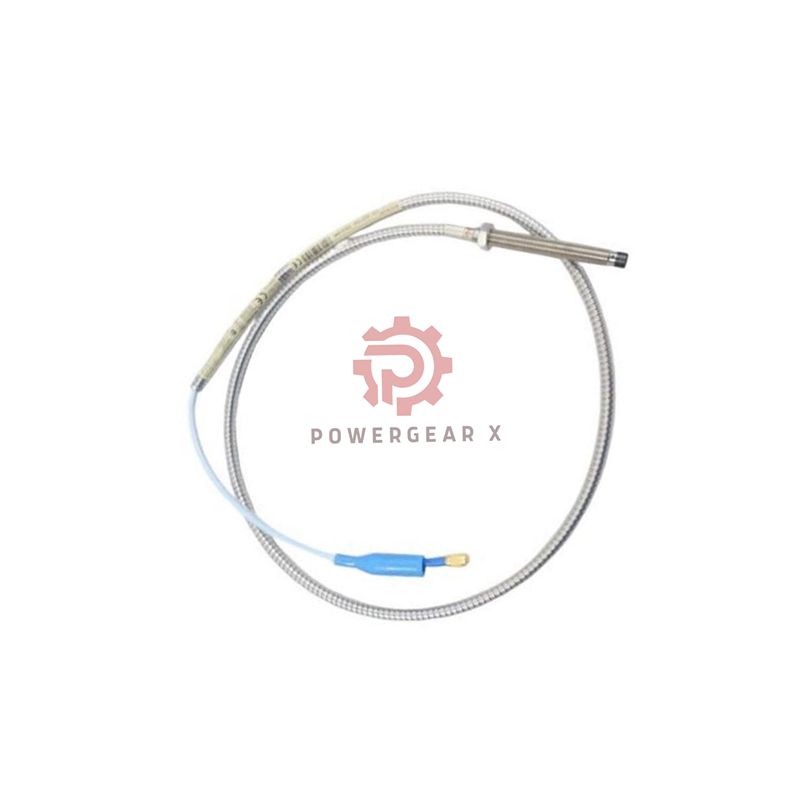

Bently Nevada 330102-00-25-10-02-05 | 2.5-Inch Compact Armored 8mm Probe

Compact Armored Probe for Direct Hazardous Area Mounting

This Bently Nevada 3300 XL 8mm Proximity Probe is a space-saving armored solution. It has zero unthreaded length for flush installation into shallow holes. The 2.5-inch armored body provides essential protection in tight spaces. Fully certified for global hazardous areas, it is perfect for compact machinery in explosive atmospheres.

Designed for Tight, High-Risk Locations

• Minimal Profile: 2.5-inch armored case saves valuable space.
• Direct Thread Start: No unthreaded section for immediate engagement.
• Hazardous Area Approved: Compliant with CSA, ATEX, and IECEx standards.
• Useful Cable Length: 1.0 meter cable offers good routing flexibility.
• Armored Durability: Protects the sensor from physical knocks in congested plants.

Complete Model Specification: 330102-00-25-10-02-05

• Brand: Bently Nevada
• Product Type: 330102 (3300 XL 8mm, Armored, 3/8-24 UNF)
• Detailed Option Analysis:
  • -00: Unthreaded Length = 0 inch (Threads at the tip)
  • -25: Overall Case = 2.5 inch (63.5 mm)
  • -10: Attached Cable = 1.0 Meter (3.3 ft)
  • -02: Connector = Standard ClickLoc
  • -05: Certifications = CSA, ATEX, IECEx

Essential Technical Data

• Sensing Range: 2.0 mm linear range (0.25 to 2.3 mm from target).
• Calibration Point: Target gap of 1.27 mm for -9 Vdc output.
• Electrical Characteristic: DC Resistance: 7.59 Ω ± 0.5 Ω.
• Operating Limits: Standard temperature range -52°C to +177°C.
• Construction: Armored stainless steel, PPS tip, Viton® O-ring seal.
• Mounting: 3/8-24 UNF thread. Max engagement 0.563 inch.

Included & Guaranteed

• One Bently Nevada 330102-00-25-10-02-05 armored probe.
• Supplied as new in original packaging.
• Protected by a Full 12-Month Manufacturer’s Warranty.
• Fast international delivery via FedEx, UPS, or DHL.

Professional FAQ & Selection Support

Configuration & Use Case

• Q: What is the benefit of a “00” unthreaded length on an armored probe?
• A: It allows the probe to mount directly into a shallow, threaded hole on the machine casing. The armored sleeve starts right at the mounting surface, providing maximum protection with minimal space used.
• Q: Is the 2.5-inch length with armor common for pumps?
• A: Yes, the 2.5-inch armored probe is a popular choice for medium-sized pumps and motors in hazardous areas. It offers a good balance of protective length without being overly long.

Installation & Compatibility

• Q: How do I set the gap with no unthreaded shoulder to reference?
• A: The gap is determined by how deep you screw in the probe. You must use a voltmeter to measure the output voltage (-9 Vdc target) while adjusting the probe’s depth in the mounting hole.
• Q: Can I use this probe with a standard (non-armored) mounting bracket?
• A: Yes, but you must ensure the bracket’s hole is large enough to accommodate the slightly larger diameter of the armored sleeve. Standard brackets are typically designed for unarmored probes.

Purchasing & Logistics

• Q: What is your process for ordering and delivery?
• A: For the 330102-00-25-10-02-05, contact us for pricing and stock. We provide a 12-month warranty and ship globally with reliable carriers like FedEx, DHL, and UPS. For immediate assistance, email sales@powergearx.com or message on WhatsApp (+86 18030005825).
