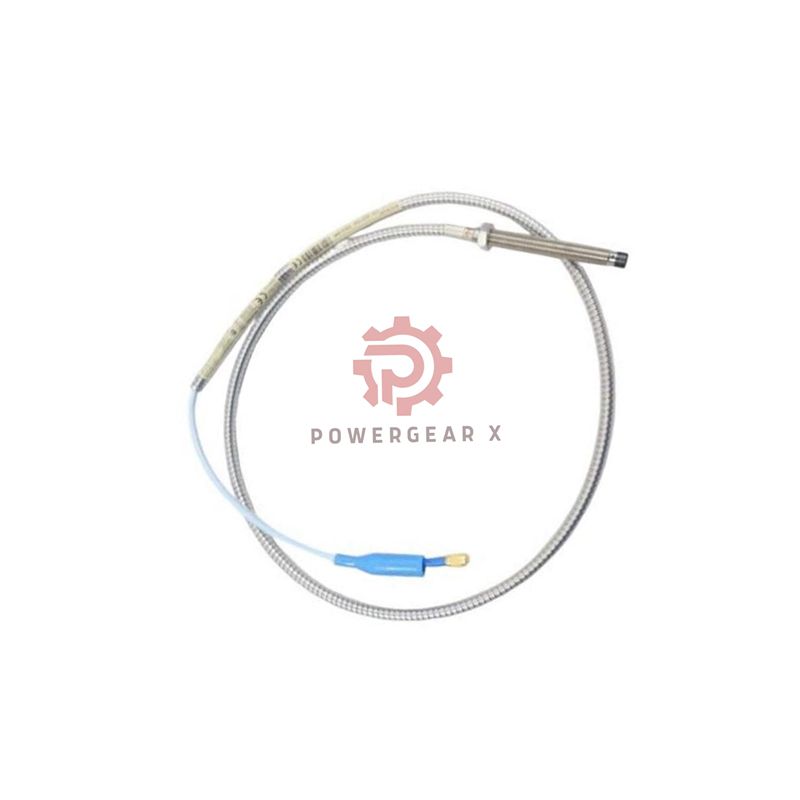

Bently Nevada Long-Reach Armored Probe
Extended-length armored 3300 XL 8mm Proximity Probe for deep or recessed mounting points. Model 330102-04-78-05-02-05 offers a 7.8-inch armored case with a 0.4-inch unthreaded section and global safety approvals.
Configuration Decoded
- 330102 – Base Type: Armored, 3/8-24 UNF Thread
- 04 – Unthreaded Length: 0.4 inch
- 78 – Overall Case: 7.8 inch (Long Reach)
- 05 – Cable: 0.5 meter (1.6 feet)
- 02 – Connector: Standard Mini ClickLoc
- 05 – Certifications: CSA, ATEX, IECEx
Technical Specifications
- Brand: Bently Nevada
- System: 3300 XL Vibration Monitoring
- Full Part Number: 330102-04-78-05-02-05
- Probe Type: 8mm Armored Proximity Sensor
- Linear Range: 2.0 mm (80 mils)
- Target Gap: 1.27 mm (50 mils)
- DC Resistance: 7.45 Ω ± 0.50
- Thread: 3/8-24 UNF Imperial
- Case Length: 7.8 inch (~198 mm)
- Key Feature: Long armored body for deep access
Mechanical & Installation
- Mounting Thread: 3/8-24 Unified Fine
- Maximum Engagement: 0.563 inch
- Unthreaded Section: 0.4 inch near tip
- Application: For reaching through deep cavities or housings.
- Environment: Certified for hazardous areas.
Global Approvals
- Approval Code 05: Full CSA, ATEX, IECEx Certification
- Safety Ratings: Intrinsically Safe (ia) & Non-Incendive
- Compliance: Suitable for Zones 0, 1, 2, Divisions 1 & 2
- Groups: A, B, C, D, E, F, G
Order & Support Information
- One Genuine 3300 XL 8mm Proximity Probe
- Manufacturer’s Data and Certificates
- 12-Month Quality Assurance Warranty
- Express Delivery: Via FedEx, UPS, or DHL
- Technical Help: Available for Application Questions
Frequently Asked Questions
What applications require a 7.8-inch long probe?
This length is needed when the measurement point is deep inside a machine, such as through a thick bearing housing, a long sleeve, or a deep access port on large turbines or compressors.
What is the purpose of the 0.4-inch unthreaded section?
The short unthreaded portion at the tip helps center the probe in the mounting hole before the threads engage. This ensures the probe is straight for accurate gap setting.
Is the long armored case more flexible or prone to bending?
The armored construction provides excellent rigidity. While long, it is designed to resist bending, maintaining alignment even in extended installations.
What is a key installation tip for long probes?
Support the probe body during installation. For very long probes, avoid letting it cantilever unsupported, as this can misalign the tip and damage threads.
How do I choose between long armored and long standard probes?
Choose the armored version (330102-04-78-05-02-05) if the long probe will pass through an area with potential for physical contact or abrasion. If the path is clear, a standard long probe may be suitable.
Need assistance selecting a probe for a deep mounting application? Contact us: sales@powergearx.com or +86 18030005825.
