Bently Nevada 330102-05-40-05-02-05 | 4-Inch Armored 8mm ATEX Vibration Probe

Versatile Armored Probe for Standard Hazardous Installations

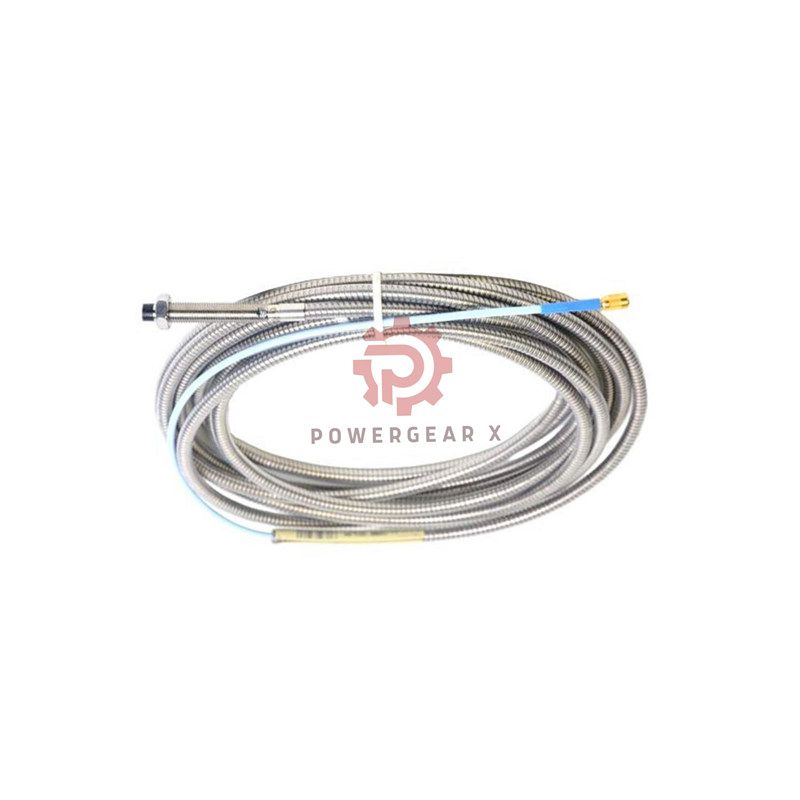

This Bently Nevada 3300 XL 8mm Proximity Probe offers balanced protection and size. It has a 4.0-inch armored body with a 0.5-inch unthreaded section. The compact 0.5-meter cable ensures a tidy setup. Fully certified for explosive atmospheres, it is a reliable, go-to choice for protected monitoring in hazardous plants.

Optimized for Common Hazardous Area Needs

• Practical Armored Length: 4.0-inch case fits most standard mounting depths.
• Global Hazardous Area Certs: Ready for CSA, ATEX, and IECEx approvals.
• Short Integrated Cable: 0.5-meter length minimizes excess at the connection point.
• Standard Imperial Thread: 3/8-24 UNF for wide compatibility.
• Robust Protection: Armored sleeve defends against impact in busy industrial areas.

Model Configuration Details: 330102-05-40-05-02-05

• Brand: Bently Nevada
• Series: 330102 (3300 XL 8mm, Armored, 3/8-24 UNF)
• Configuration Explained:
  • -05: Unthreaded Length = 0.5 inch (12.7 mm)
  • -40: Case Length = 4.0 inch (101.6 mm)
  • -05: Cable Length = 0.5 Meter (1.6 ft)
  • -02: Connector = Standard ClickLoc
  • -05: Safety Approvals = CSA, ATEX, IECEx

Key Performance Specifications

• Linear Range: 2.0 mm (80 mils).
• Target Gap: 1.27 mm (50 mils) from the shaft.
• Electrical Spec: DC Resistance: 7.45 Ω ± 0.5 Ω.
• Operating Temperature: -52°C to +177°C.
• Build: Armored stainless steel housing, PPS tip, Viton® seal.
• Mounting: 3/8-24 UNF thread. Do not exceed 0.563 inch engagement.

Package & Warranty

• One Bently Nevada 330102-05-40-05-02-05 armored probe.
• Delivered in original factory condition.
• Supported by a 12-Month Product Warranty.
• Express global shipping via FedEx, UPS, or DHL available.

Professional FAQ & Guidance

Configuration & Selection

• Q: When would I select the 0.5-inch unthreaded option?
• A: This is useful when mounting the probe through a thin bracket or spacer. The 0.5-inch smooth section positions the threaded part correctly, ensuring you can achieve the right sensing gap.
• Q: Is the 4.0-inch length a common replacement size?
• A: Yes, the 4.0-inch (approx. 100mm) armored probe is a very common size in industry. It often serves as a direct replacement for existing probes on pumps, motors, and fans in hazardous areas.

Installation & Use

• Q: How does the armored design affect gap setting?
• A: It does not affect the electrical gap setting process. You still set the gap based on the output voltage (-9 Vdc target). The armor is just an external protective layer over the standard probe body.
• Q: Can I use this 0.5m probe if my monitor is far away?
• A: Absolutely. The 0.5m cable has a connector. You can attach longer, properly shielded field wiring from this point to your monitor, up to the system maximum of 305 meters.

Ordering & Support

• Q: What is the lead time and how do I get support?
• A: For the 330102-05-40-05-02-05, contact us for current stock status. All purchases include a 12-month warranty and can be shipped via DHL, FedEx, or UPS. For immediate help, email sales@powergearx.com or WhatsApp +86 18030005825.

Contact for Standard Armored Solutions

For reliable, certified protection in common hazardous area applications.
