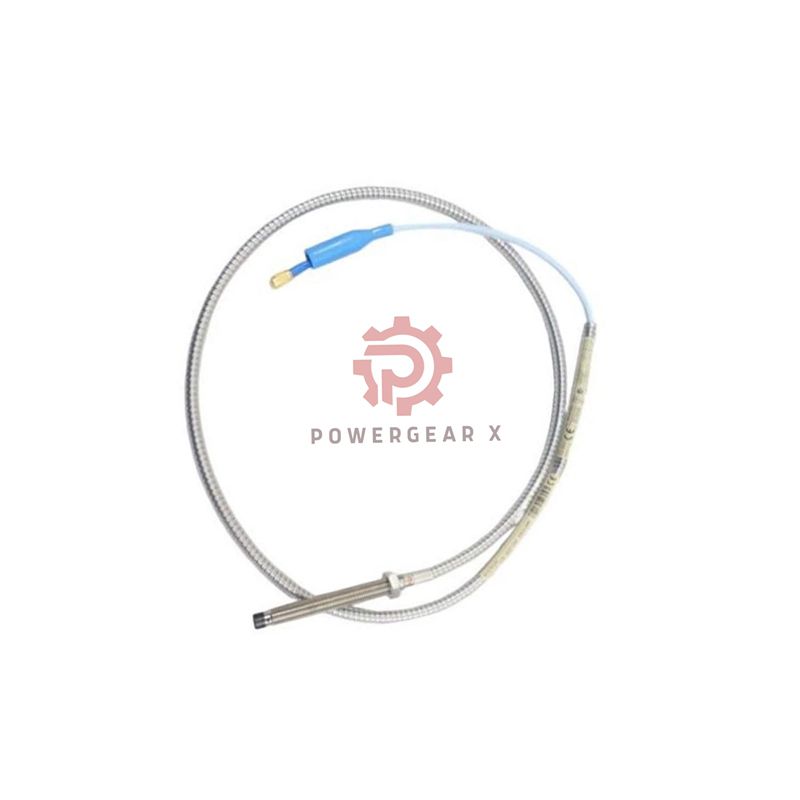

6-Inch Long Armored Probe: Bently Nevada 330102-00-60-10-01-05 with ATEX

Extra-Long Armored & Certified Probe

This is the longest armored option. The 3300 XL 8mm Proximity Probe, model 330102-00-60-10-01-05, features a 6-inch case for deep reach. It includes a connector protector and full global safety certifications for demanding applications.

Detailed Model Analysis

• Full Product Specification: 330102-00-60-10-01-05
  • 330102 – Armored Probe, 3/8-24 UNF
    00 → Unthreaded: 0.0 in
    60 → Case: 6.0 in (152 mm)
    10 → Cable: 1.0 m (3.3 ft)
    01 → Connector: ClickLoc with Protector
    05 → Approval: CSA, ATEX, IECEx

Key Product Attributes

• Extended Reach Design
  • Long 6-inch (152mm) armored stainless steel case.
  • Fully threaded 3/8-24 UNF body.
  • Integrated connector protector guards the pins.
• Global Compliance
  • Carries CSA, ATEX, and IECEx certifications.
  • Suitable for use in classified hazardous areas worldwide.
• Technical Specifications
  • Standard 2.0 mm linear measurement range.
  • Probe resistance (1.0m): 7.59 Ω.
  • Robust construction with PPS tip and Viton® seal.

Professional FAQ

Application & Selection

• When is a 6-inch long case necessary?
• It is used when the measurement point is deep within a machine, such as inside a large bearing housing or through a thick casing wall.
• What is the benefit of the “01” connector with a protector?
• The protector shields the delicate connector pins from impact, dust, and moisture during handling and before installation, which is crucial in rough industrial environments.

Installation & Certification

• How do I handle the long probe during installation?
• Support the probe body during threading to avoid bending moments. Ensure the long body has clear axial alignment with the mounting hole.
• Are the certifications still valid if I remove the connector protector?
• Yes, the protector is a mechanical guard. The intrinsic safety certifications relate to the electrical design of the probe itself.

Procurement & Support

• What is the typical lead time for this long, certified model?
• This is a specialized configuration. Please contact us for current stock status and delivery estimates. We provide tracked shipping via FedEx, UPS, or DHL and back it with a 12-month warranty.

Order This Premium Probe

• Package Includes: One Bently Nevada 3300 XL 8mm Probe (330102-00-60-10-01-05) with connector protector and certification paperwork.
• Warranty Coverage: Full 12-month manufacturer’s warranty.
• Shipping: Reliable international shipping with tracking.
• For Custom Quotes & Sizing Help:Email Technical Sales: sales@powergearx.com

  Direct WhatsApp Inquiry: +86 18030005825
