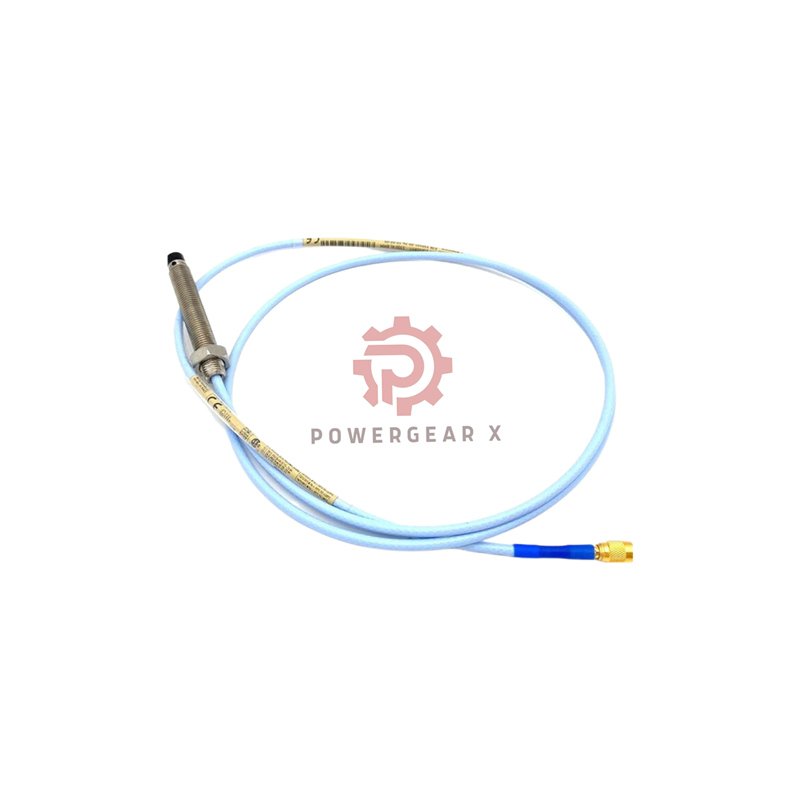

Bently Nevada 330101-20-36-10-02-00 | 2 in Unthreaded Vibration Probe

Special Unthreaded Section Vibration Probe

The Bently Nevada 330101-20-36-10-02-00 is uniquely configured with a 2-inch unthreaded body section. This 3300 XL 8mm Probe allows installation through clearance holes or brackets before engaging threads. Made in the USA for precision and durability. It provides flexible mounting solutions for custom machinery setups.

Model Configuration Details

• Complete Product Code: 330101-20-36-10-02-00
  • 330101: 3300 XL 8mm Diameter, No Armor, 3/8-24 UNF
  • 20: Unthreaded Length = 2.0 inches
  • 36: Overall Case Length = 3.6 inches
  • 10: Cable Length = 1.0 meter (3.3 feet)
  • 02: Connector = Standard ClickLoc
  • 00: Approval = Not Required

Key Design Features & Benefits

• Unique Unthreaded Section: 2.0 inches of smooth body for passing through brackets or thermal insulation.
• Precise Thread Engagement: Only the final portion is threaded, ensuring accurate mounting depth.
• Robust 8mm Construction: Thicker body and PPS tip provide superior physical protection.
• Patented Reliability: TipLoc molding and CableLoc design ensure long-term performance.
• Standard Compatibility: 1-meter cable with ClickLoc connector works with all 3300 XL systems.

Technical Specifications Summary

• Measurement Performance:
  • Linear Range: 2.0 mm (80 mils)
  • Optimal Gap: -9 Vdc (approximately 1.27 mm)
  • Sensitivity: 7.87 V/mm ±5%
  • Linearity: Better than ±0.025 mm
• Environmental Specifications:
  • Temperature Range: -52°C to +177°C operation
  • Construction: PPS Tip, 304 SST Body, Viton® Seal
  • Humidity Resistance: Stable in high humidity conditions
• Electrical & Mechanical Data:
  • Probe Resistance: 7.59 Ω ± 0.50 Ω
  • Maximum Cable Run: 305 meters to monitor
  • Thread: 3/8-24 UNF (partial length)
  • Torque: 100 in•lbf recommended

Package Contents & Service Information

• One (1) Bently Nevada 330101-20-36-10-02-00 special configuration probe
• 1-meter attached cable with ClickLoc connector
• 12-month manufacturer warranty against defects
• Fast worldwide delivery via FedEx, UPS, DHL
• Ideal for custom brackets and insulated housings

Expert Questions & Answers

Product Configuration

• What is the purpose of the 2-inch unthreaded section?

It allows the probe to pass through mounting brackets, insulation, or spacers before the threads engage in the final mounting surface.

• How much of the probe is actually threaded?

With a 3.6-inch total case and 2-inch unthreaded section, approximately 1.6 inches of the case contains threads for secure mounting.

Installation Guidance

• How do I install this probe correctly?

Insert the unthreaded section through the clearance hole or bracket. Then thread the probe into the final mounting surface until properly seated.

• Can I use this probe with a standard 3/8-24 mounting hole?

Yes. The threaded portion is standard 3/8-24 UNF. Ensure your mounting hole depth accommodates the threaded section only.

Selection & Ordering

• When would I choose this over a fully-threaded probe?

Choose this model when mounting through an intermediate bracket or thick insulation layer before reaching the final threaded mounting point.

Unsure if this configuration fits your application? Our technical team can help. Contact sales@powergearx.com or message on WhatsApp: +86 18030005825.
