Product details
Versatile 8mm Vibration Probe with Standard Shank

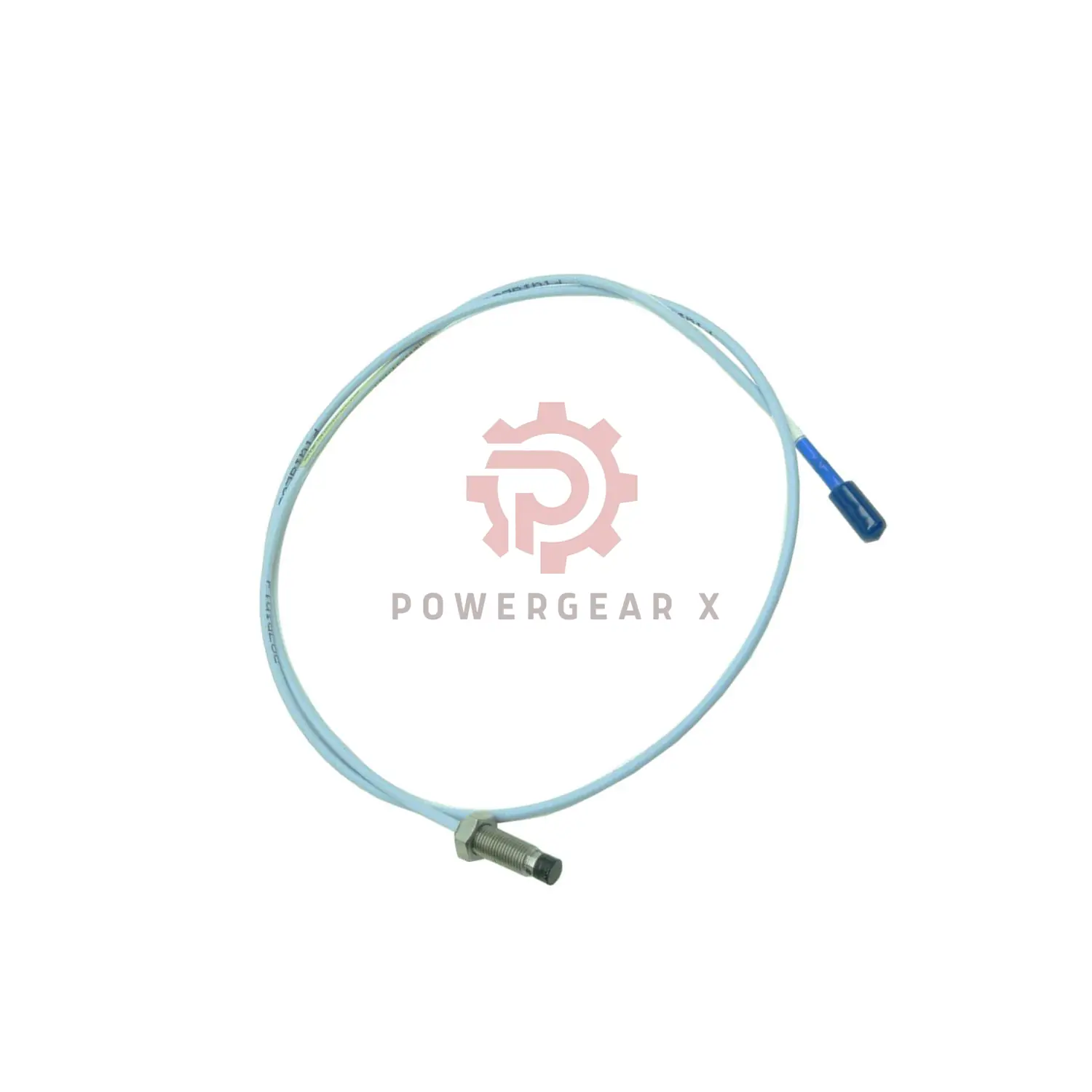

This is the Bently Nevada 330101-24-35-10-02-00. It is a popular mid-length 3300 XL 8mm Proximity Probe. The design features a 2.4-inch smooth shank and a 3.5-inch total case. This versatile length suits a wide range of common industrial applications. It offers the perfect balance of easy installation and rugged 8mm durability.
Top Features & Benefits
- Optimal Standard Length: The 3.5-inch case is a common choice. It provides enough length for easy handling and installation in most machines.
- Useful Smooth Shank: The 2.4-inch unthreaded section (-24 suffix) allows for precise positioning before the threads engage. It simplifies alignment.
- Proven Ruggedness: Built with the robust 8mm stainless steel body. It resists damage better than smaller 5mm probes.
- Cable Stays Put: The patented CableLoc grips the cable with 75 lbs of force. This prevents disconnection from machine vibration.
- Reliable in All Conditions: Operates from -52°C to +177°C. Performance stays stable even in high humidity environments.
Product Configuration & Key Data
Understanding Your Model:
- Product Family: Bently Nevada 3300 XL 8mm Probe
- Your Exact Part: 330101-24-35-10-02-00
- -24: Unthreaded Shank = 2.4 inches
- -35: Overall Case = 3.5 inches
- -10: Cable = 1.0 meter attached
- -02: Connector = Standard ClickLoc
- -00: Certifications = Not Required
Critical Performance Specifications:
- Measurement Window: 2.0 mm (80 mil) linear range, starting 0.25 mm from the target.
- Setup Target: Adjust the probe to achieve -9 Vdc output for optimal vibration reading.
- Output Signal: 7.87 Volts per millimeter of movement, with high accuracy.
- Environmental Rating: Tough PPS tip and SST case withstand oils and coolants.
- Thermal Range: Standard operating temperature from -52°C to +177°C.
- Electrical: Probe resistance is 7.59 Ω. Compatible with long cable runs using proper shielded wire.
Simple Installation & Use Guide
- This is a great general-purpose probe for pumps, motors, fans, and compressors.
- The smooth shank lets you slide the probe into the mounting hole to check fit and alignment before tightening.
- Ensure the threaded portion engages correctly. Do not exceed 0.563 inches of thread engagement in the mounting tap.
- Use a torque wrench on the probe’s hex flats. Tighten to the recommended 100 in-lbf.
- It connects directly to Bently Nevada 3300 XL system monitors. It is a plug-and-play replacement part.
- Maintenance is minimal. Keep the sensing tip clean and inspect the cable jacket periodically.
Complete Purchase Details
- Included: One probe with integrated 1-meter cable and ClickLoc connector.
- Warranty Protection: Every unit comes with a 12-month product warranty.
- Fast Logistics: We ship globally using reliable carriers: FedEx, UPS, and DHL.
- Typical Applications: Ideal for monitoring vibration on industrial motors, mid-sized pumps, and process fans.
- Machine Diagnostics: The data helps identify issues like rotor unbalance, misalignment, and rolling element bearing defects.
Practical Questions Answered
What is the advantage of having an unthreaded shank (-24)?
The smooth section makes initial installation easier. You can insert the probe fully to visually check the tip-to-target gap before final tightening, ensuring correct positioning.
Can I use this probe for axial thrust position measurement?
Yes, this probe can be used for axial position. However, you must set the gap within the linear range and calibrate the system accordingly, often targeting a different voltage like -12 Vdc.
What is the difference between the -00 and -05 approval suffix?
The -00 suffix means no hazardous area certifications. The -05 suffix includes CSA, ATEX, and IECEx approvals for use in explosive atmospheres. Choose -05 for those environments.
How do I know if my old probe is a direct replacement with this model?
Check the part number on your old probe. If it starts with 3301 and is an 8mm probe, this is likely a direct upgrade. Compare the suffix numbers for length and connector type to ensure a match.
What is your lead time and shipping cost?
Items in stock ship within 1-2 business days. Shipping cost depends on your location and chosen service (FedEx/UPS/DHL). You will see options and costs at checkout.
Need a different cable length or connector?
We can source various configurations. The suffix -10 is for 1m cable. Other common lengths are -50 (5m) and -90 (9m). Contact us with your requirements for the 330101-24-35-XX-02-00 variant.
