Product details
Compact & Efficient: Short Cable, Standard Case Probe

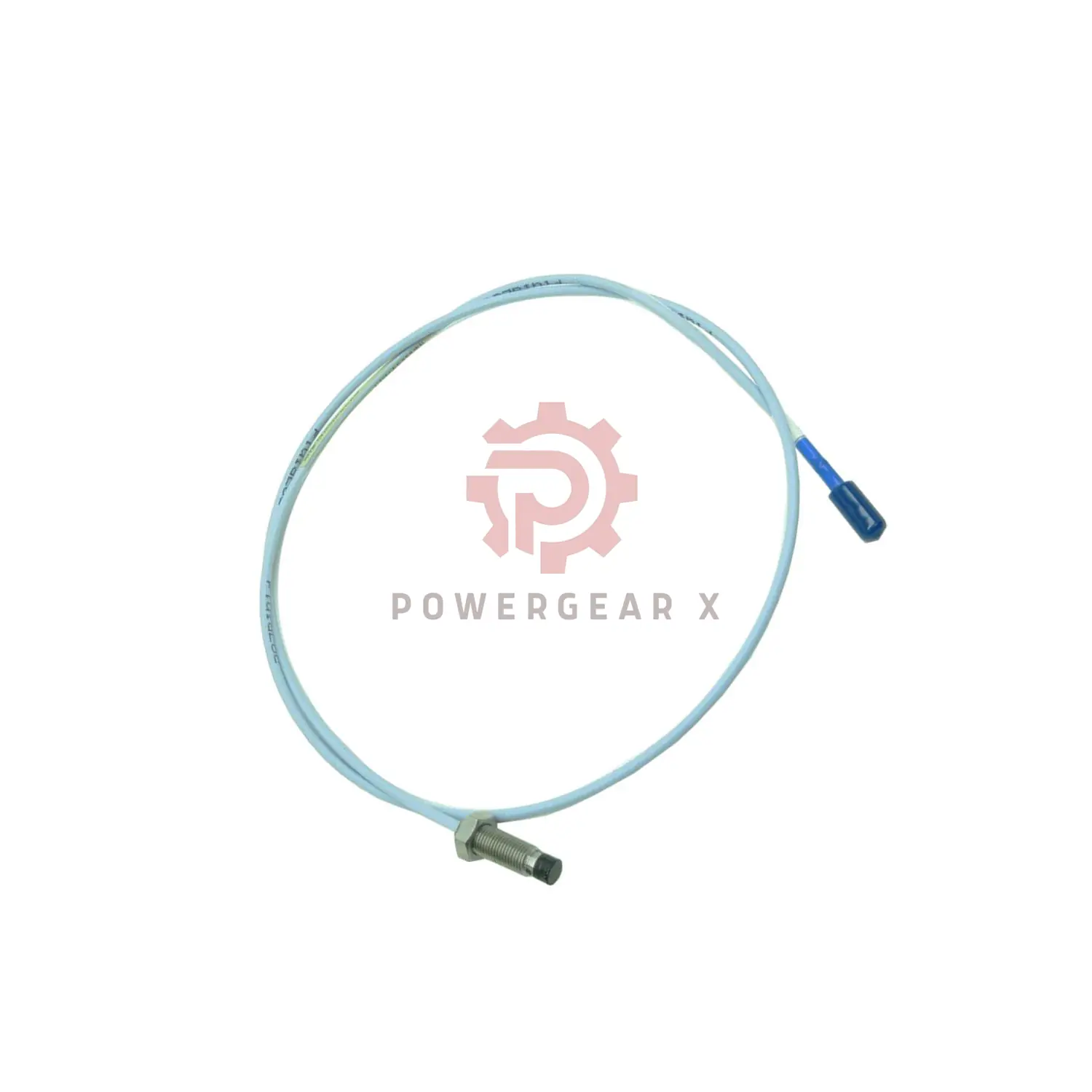

This is the 3300 XL 8mm Proximity Probe, model 330101-00-28-05-02-00. Made by Bently Nevada in the USA, it features a practical 2.8-inch fully threaded case and a short 0.5-meter cable. This space-saving design is ideal for installations where the sensor must be close to the machinery, minimizing cable run and clutter.
Detailed Product Configuration
- Product Overview
- Manufacturer: Bently Nevada
- Product Line: 3300 XL System Component
- Specific Model: 330101-00-28-05-02-00
- Part Number Decoder Guide
- 330101 – Base 8mm Probe, 3/8-24 UNF Thread
- 00 – Unthreaded Length: 0.0 in (Fully Threaded)
- 28 – Case Length: 2.8 inches
- 05 – Cable Length: 0.5 meter (1.6 ft)
- 02 – Connector: Standard ClickLoc
- 00 – Agency Certs: None Required
- Performance & Electrical Specs
- Linear Range: 2.0 mm (80 mils).
- Target Gap: 1.27 mm (50 mils) for -9 Vdc output.
- Scale Factor: 7.87 V/mm (200 mV/mil).
- Linearity: Deviation less than ±0.025 mm.
- Resistance (0.5m cable): 7.45 Ω ± 0.50 Ω.
- Durability & Operating Envelope
- Temperature: Wide range from -52°C to +177°C.
- Construction: All-metal stainless steel housing.
- Tip Material: High-strength PPS plastic.
- Sealing: Viton® O-ring for internal pressure sealing.
- Cable Pull Strength: High 330 N (75 lbf) retention.
Frequently Asked Questions
Design & Application
- Why is a 2.8-inch case considered a standard size?
The 2.8-inch length is a common industry standard. It fits most typical machinery mounting holes designed for proximity probes, providing a versatile solution.
- When should I use a probe with a 0.5-meter cable?
Use this when the proximitor module mounts directly on the machine casing or very close by. It avoids excess cable that requires looping and securing.
Technical Specifications
- The resistance is listed as 7.45 Ohms. Why is this important?
The probe resistance is part of the system’s electrical tuning. The value of 7.45 Ω for this 0.5m model is correct and must be matched with the correct proximitor calibration.
- Can I use this in a high-vibration environment?
Yes. The 8mm body and patented CableLoc design are specifically engineered to withstand high-vibration conditions and prevent cable pull-out.
Ordering & Support
- What is the delivery time and warranty?
We offer fast dispatch and ship via FedEx, UPS, or DHL. All probes include a full 12-month manufacturer’s warranty for your protection.
Ready to Purchase This Compact Solution?
For clean, efficient machine monitoring, this probe is an excellent choice. Contact us for availability and competitive pricing.
