Long-Reach, Short-Cable Vibration Probe

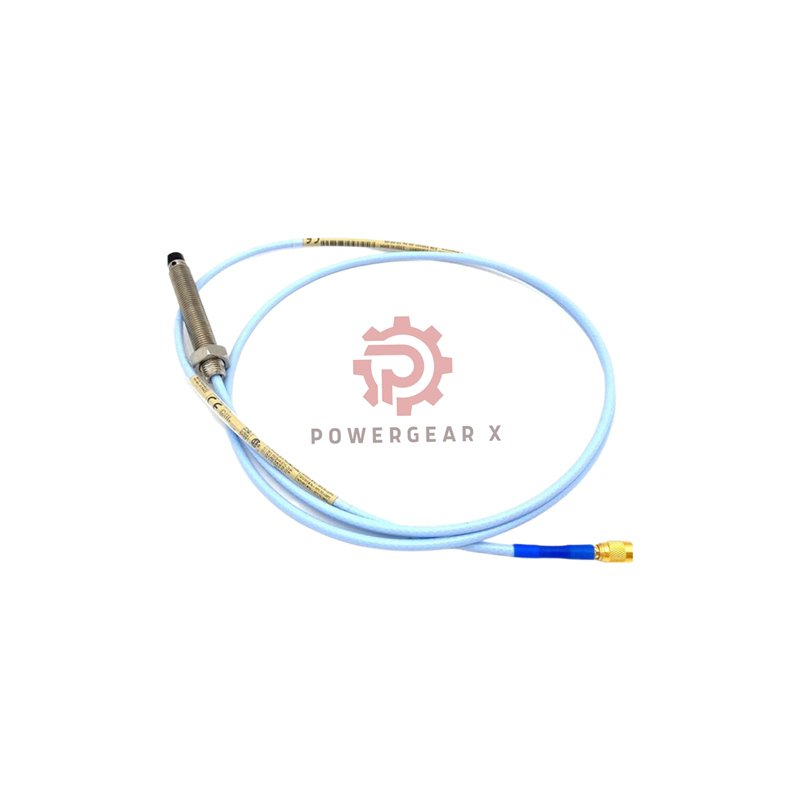

This is the 3300 XL 8mm Proximity Probe, model 330101-00-76-05-01-00. Made by Bently Nevada in the USA, it features a long 7.6-inch case and a short 0.5-meter integrated cable. This configuration is perfect for deep mounting holes where the monitoring cabinet is nearby, reducing excess cable clutter.
Product Specifications & Details
- Core Product Information
- Brand: Bently Nevada
- Series: 3300 XL Machinery Monitoring
- Exact Model: 330101-00-76-05-01-00
- Model Breakdown: What Each Number Means
- 330101 – Base: 8mm Probe, 3/8-24 UNF Thread
- 00 – Unthreaded: 0.0 in (Fully Threaded)
- 76 – Case Length: 7.6 inches
- 05 – Cable Length: 0.5 meter (1.6 ft)
- 01 – Connector: ClickLoc with Protector
- 00 – Approvals: Standard
- Critical Performance Specifications
- Linear Range: 2.0 mm (80 mils).
- Gap Setting: 1.27 mm (50 mils) for -9 Vdc.
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil).
- Linearity Error: Less than ±0.025 mm (±1 mil).
- Probe Resistance (0.5m): 7.45 Ω ± 0.50 Ω.
- Construction & Environmental Limits
- Temperature: Operates from -52°C to +177°C.
- Materials: Stainless Steel body, durable PPS plastic tip.
- Sealing: Viton® O-ring for pressure differential.
- Connector: Includes a protective shell for the ClickLoc connector.
Customer Questions & Expert Answers
Configuration & Use Cases
- Why would I choose a probe with a very short 0.5m cable?
A short cable is ideal when the proximitor sensor is mounted directly on or very near the machine. It eliminates excess cable that needs coiling and management.
- What is the connector protector for?
The connector protector (Option 01) is a physical shell. It guards the delicate ClickLoc connector from damage during handling and installation in tight spaces.
Technical & Compatibility
- The resistance is 7.45 Ohms. Is this different from other probes?
The resistance is slightly lower because the built-in cable is only 0.5 meters long. This is normal and specified for this model 330101-00-76-05-01-00.
- Can I add an extension cable to this short probe?
Yes. You can connect a standard Bently Nevada extension cable between this probe’s cable and the proximitor to reach the required distance.
Purchasing & Support
- What support can I expect after purchase?
Your purchase includes our standard 12-month warranty. We also offer support for installation questions. We ship quickly via FedEx, UPS, or DHL.
Order Your Deep-Mount Probe Now
For secure deep-hole monitoring, this is the ideal sensor. Contact us for stock availability and to place your order.
