Extra-Long Certified Probe for Deep Machine Mounting

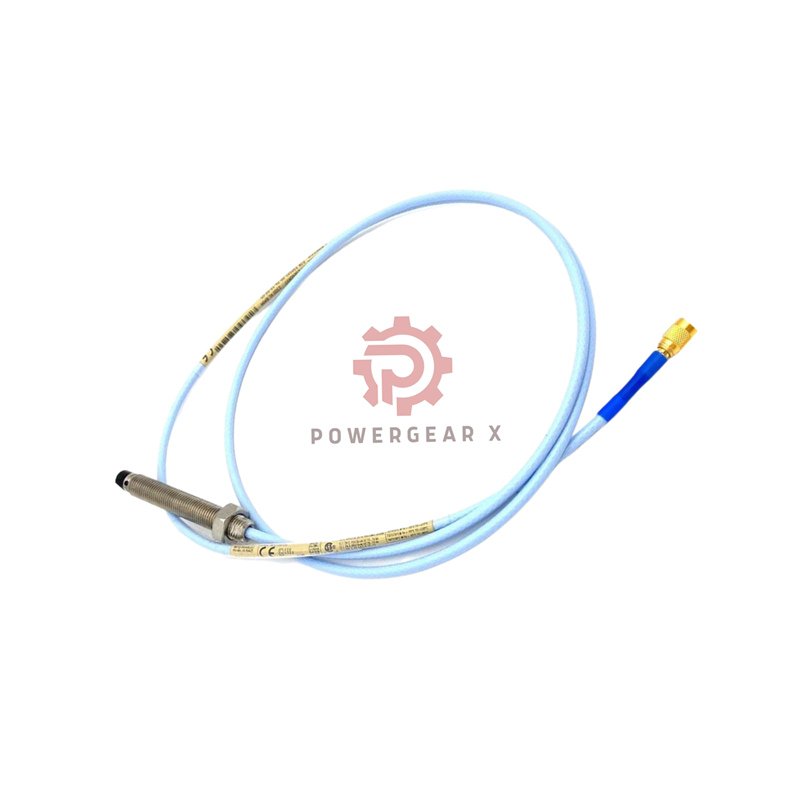

Meet the Bently Nevada 3300 XL 8mm Probe with extreme reach. Its standout feature is a massive 9.6-inch long case for penetrating deep housings. Fully certified with CSA, ATEX, and IECEx approvals for hazardous areas. This model 330101-00-96-10-02-05 delivers rugged reliability where standard probes cannot reach. Perfect for thick-walled compressors, turbines, and gearboxes.
Part Number Structure Explained
Understand every detail of your 330101-00-96-10-02-05 probe.
- Root: 330101
- 3300 XL 8mm Probe, 3/8-24 UNF, No Armor
- Branch 1: -00
- Unthreaded Length = 0.0 inch (Fully Threaded)
- Branch 2: -96
- Overall Case Length = 9.6 inches
- Branch 3: -10
- Probe Cable Length = 1.0 meter
- Branch 4: -02
- Connector = ClickLoc Miniature Coaxial
- Branch 5: -05
- Agency Approval = CSA, ATEX, IECEx
Core Technical Data
- Manufacturer & Model: Bently Nevada 3300 XL 8mm
- Case Length: 9.6 inches (Suffix -96)
- Threading: Fully Threaded (Suffix -00)
- Linear Range: 2.0 mm (80 mils)
- Sensitivity (Scale Factor): 7.87 V/mm ±5%
- Linearity: < ±0.025 mm (±1 mil)
- Gap Voltage: -9 Vdc (at 1.27 mm / 50 mils)
- Probe Resistance: 7.59 Ω ± 0.50 Ω
- Operating Temp: -52°C to +177°C
- Hazardous Area Certs: CSA, ATEX, IECEx
- Body Material: 303/304 Stainless Steel
Installation & Handling Notes
- This is a fully threaded, 9.6-inch long probe.
- Use a deep mounting bushing or nut for support.
- Maximum thread engagement is 0.563 inches only.
- Apply torque carefully to avoid bending the long case.
- Support the cable to prevent stress on the connector.
Why This Probe Is Unique
- Deep Access Design: 9.6″ length reaches through the thickest machine walls.
- Hazardous Area Safe: Carries full international explosion-proof certifications.
- Maximum Strength: Fully threaded case provides superior mounting rigidity.
- Standard Cable: 1.0-meter cable offers flexibility for cabinet mounting.
- Proven Reliability: Built with Bently Nevada’s patented TipLoc and CableLoc.
Purchase with Confidence
- In the Box: One extra-long, certified vibration probe.
- Warranty Protection: Covered by a 12-month manufacturer’s warranty.
- Fast Global Shipping: Reliable delivery via FedEx, UPS, or DHL.
- Technical Support: Contact us for application engineering.
Email: sales@powergearx.com
WhatsApp (Tech Support): +86 18030005825
Specialist FAQs: Extra-Long Probes
What machines need a 9.6-inch long probe?
Use this probe for large equipment with very thick casing walls. Examples include high-pressure barrel compressors, certain steam turbines, and large industrial gearboxes.
How do I install a fully threaded, long probe securely?
You must use a matching threaded mounting bushing or a long nut. This supports the probe along its length and prevents vibration or bending.
Will the long length affect measurement accuracy?
No. The sensing performance is identical to shorter probes. The long case is mechanically rigid to ensure the tip position remains stable.
Can I get this long probe without hazardous area certification?
Yes. You would order a different suffix than -05. For example, suffix -00 indicates no approvals. Confirm your area classification needs first.
Is special packaging required for the 9.6-inch probe?
Yes. We ship it in a specially designed long package to prevent damage during transit via FedEx, UPS, or DHL.
