✅ Standard-Length Industrial Vibration Sensor

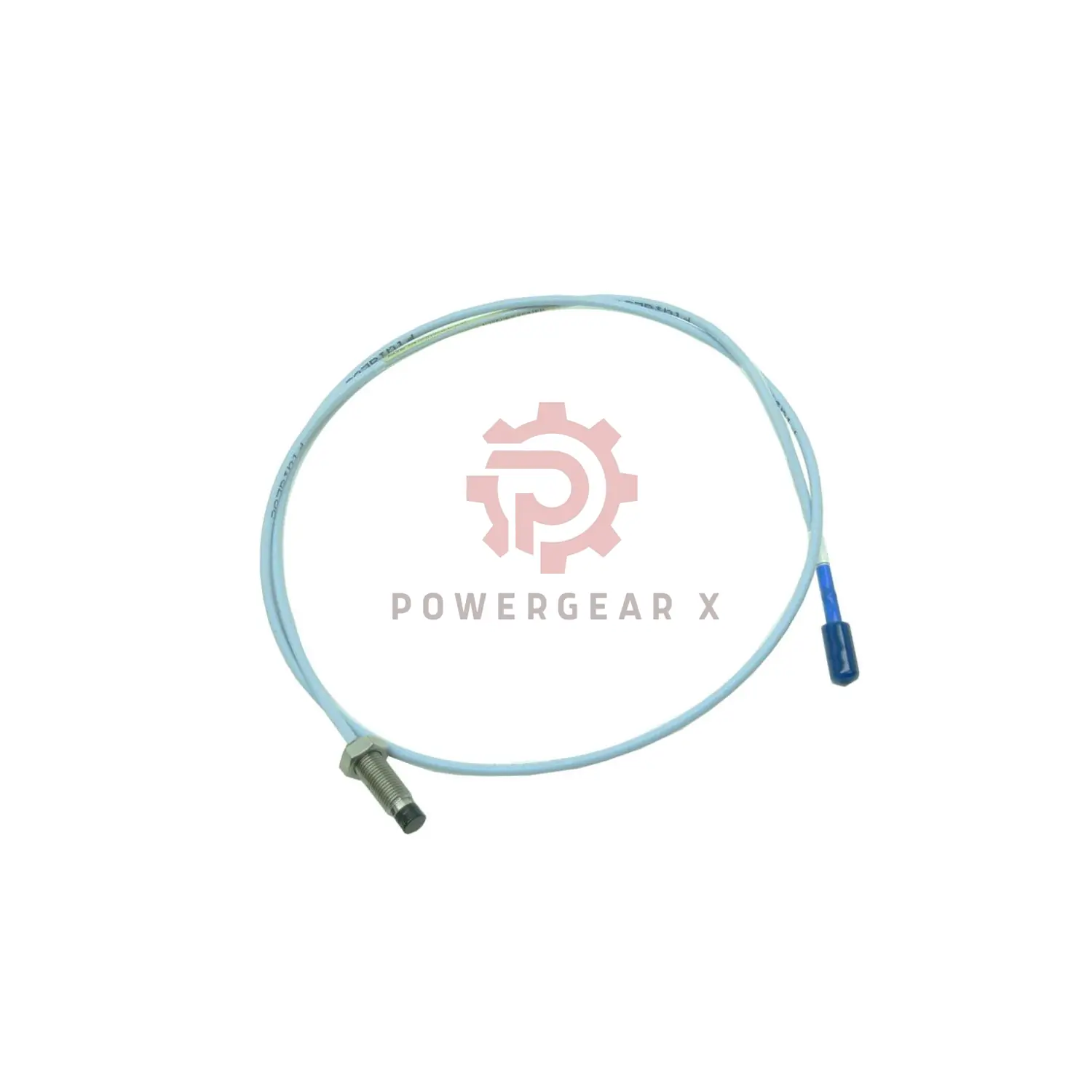

This 3300 XL 8mm Probe is a versatile, all-purpose sensor. It is designed for standard mounting in most industrial machines. The probe measures vibration and position accurately. It helps protect motors, pumps, and fans from unexpected failure. Its robust 8mm design ensures long life in tough conditions.
📐 Product Configuration: 330101-00-56-10-02-00
- 330101 – Bently Nevada 3300 XL 8mm Probe
- 00 – Unthreaded Portion: 0.0 inch (Threads start immediately)
- 56 – Case Length: 5.6 inches total
- 10 – Cable: 1.0 meter (3.3 feet)
- 02 – Connection: ClickLoc Coaxial Connector
- 00 – Approvals: Standard (Non-hazardous area use)
⚡ Key Performance Data
- Application: Machinery Vibration Monitoring
- Manufacturer: Bently Nevada
- Product Line: 3300 XL 8mm Series
- Linear Range: 2.0 mm (0.25 to 2.3 mm)
- Setup Gap: 1.27 mm for -9 Vdc output
- Scale Factor: 7.87 V/mm (±5%)
- Probe Resistance (1m): 7.59 Ω ± 0.50 Ω
- Construction: Stainless Steel Case, PPS Tip
- Temp Rating: -52°C to +177°C Operating
- Environmental Seal: Viton® O-Ring
- Cable Strength: 330 N (75 lbf) pull resistance
🤔 Frequently Asked Questions
What does “00” unthreaded length mean for installation?
It means the probe has no smooth shank. The 3/8-24 UNF threads start right at the tip. This is for standard mounting in pre-tapped holes or mounting brackets.
Is this probe suitable for high-temperature applications?
Yes, the standard probe works up to +177°C (+350°F). For hotter environments up to +218°C, please inquire about the Extended Temperature Range (ETR) version.
What is the “00” agency approval option?
“00” means the probe has no specific hazardous area certifications (like ATEX). It is intended for use in general, non-explosive industrial environments only.
How do I prevent seal damage in cold climates?
Avoid prolonged exposure below -34°C (-30°F). While it operates to -52°C, very cold storage can weaken the seal. Store probes in a controlled environment when possible.
What is the typical application for this 5.6-inch case length?
The 5.6-inch length is a common standard. It fits most motor and pump bearing housings. It provides a good balance of strength and easy installation.
🛒 Easy Ordering & Reliable Support
Best For: This model (330101-00-56-10-02-00) is an excellent default choice for general machinery protection in safe areas.
