Extra-Long Reach Vibration Probe
The Bently Nevada 3300 XL 11 mm Proximity Probe with a 230mm body is engineered for deep mounting. It is perfect for applications where the sensing point is far inside a machine housing. This model includes a fluid-resistant cable for harsh environments. Ensure precise monitoring where standard probes cannot reach. For standard length 8mm solutions, see our 3300 XL 8mm Proximity Probes.
Model Number Analysis
- Manufacturer: Bently Nevada

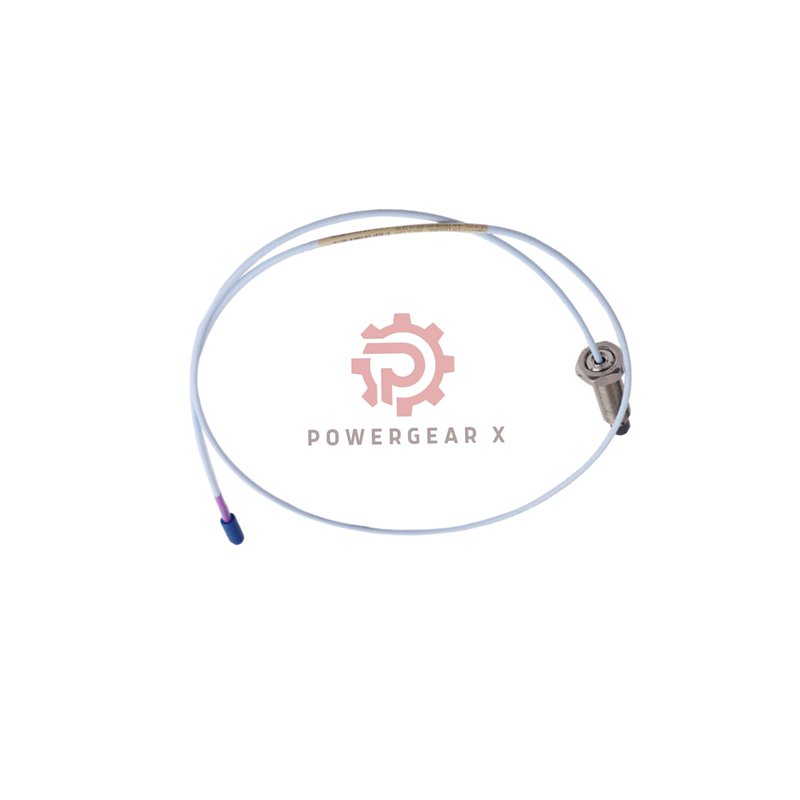

- Full Part Number: 330709-000-230-50-11-00
- Detailed Feature Breakdown:
- 330709: Core 11mm Probe, M16x1.5 Thread
- 000: Unthreaded Portion = 0 mm
- 230: Extended Case Length = 230 mm
- 50: Cable Length = 5.0 Meters
- 11: ClickLoc Connector with Protector & FluidLoc Cable
- 00: No Special Agency Approvals
Essential Technical Data
- Electrical Specifications
- Probe Resistance (5m): 7.2 Ω ± 0.8 Ω
- Cable Type: 75 Ω Triaxial, FEP FluidLoc
- Mechanical Design
- Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
- Thread Size: M16 x 1.5
- Thread Engagement: Do Not Exceed 24 mm
- Installation Parameters
- Minimum Target: Flat 30.5 mm / Shaft 152 mm
- Case Torque (Recommended): 21.1 N•m
- Connector Torque: Hand Tight (Max 0.565 N•m)
- Min Cable Bend: 25.4 mm Radius
- Environmental Specifications
- Operating Temp: -52°C to +177°C
- Seal Warning: Avoid storage below -34°C.
System Compatibility & Use Cases
- Designed for use with a 5-meter Bently Nevada Proximitor.
- FluidLoc cable protects against oil and coolant exposure.
- Ideal for deep bore mounting on large gearboxes, turbines, or fans.
Order & Service Details
- Package contains one 330709-000-230-50-11-00 probe.
- Protected by a full 12-month manufacturer’s warranty.
- Shipped promptly worldwide via FedEx, UPS, or DHL.
Expert FAQ & Guidance
Product Application
- What is the purpose of the 230mm case length?
- It allows the probe to reach through thick machine walls or insulation to get the sensing tip close to the measurement point.
- Is this probe more fragile due to its length?
- No. It is made from robust stainless steel. Care should be taken during handling to avoid bending the long body before installation.
Installation & Selection
- How do I install such a long probe correctly?
- Ensure the mounting hole is straight and clean. Use the recommended torque. Support the cable to avoid stressing the probe base.
- When should I choose this over an 80mm probe?
- When the distance from the mounting surface to the target (shaft) is greater than what an 80mm probe can physically reach.
Purchasing & Logistics
- Is the 230mm probe always in stock?
- This is a specialized length. Please contact us to confirm current stock levels and lead time before placing your order.
- How is the long probe packaged for safe transport?
- It is securely packed in a long, rigid box with protective padding to prevent damage during FedEx/UPS/DHL shipping.
For deep reach application support, contact our engineers.
