Bently Nevada 107770-01-02 Velocity Transducer Housing – CENELEC Approved

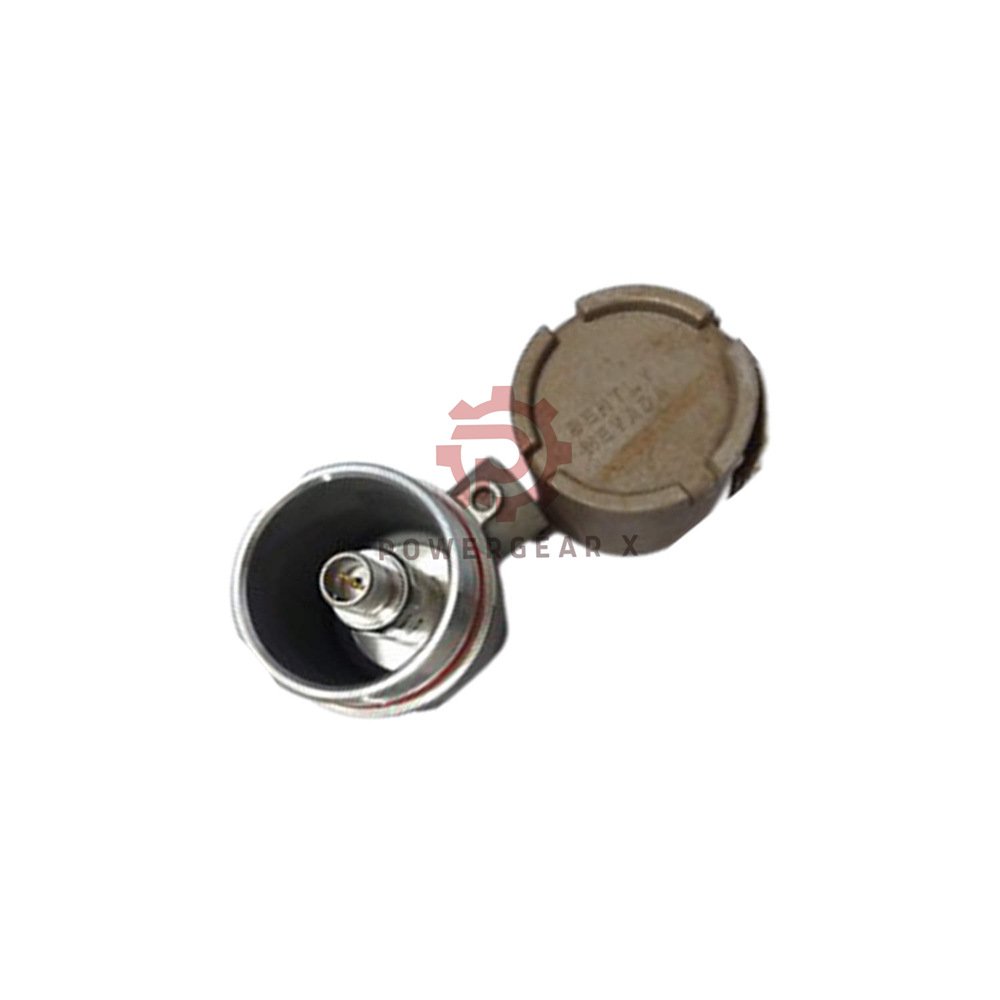

Bently Nevada 107770-01-02 Velocity Transducer Housing

Bently Nevada delivers reliable protection for velocity sensors in tough conditions.
The 107770-01-02 housing combines the 330500 Velomitor sensor and 21128 housing.
It is CENELEC approved for Zone 1 and Group IIC hazardous areas.

• Manufacturer: Bently Nevada
• Model: 107770 – Velocity Transducer Housing – CENELEC approved
• Mounting Option: 01 = Unthreaded
• Cable Exit: 02 = 1/2-14 NPT explosion-proof
• Material: 303 Stainless Steel for corrosion protection
• Ingress Rating: IP65 / NEMA 4X compliant
• Operating Temp: −40 °C to +120 °C
• Frequency Response: 0.5 Hz to 10 kHz (sensor dependent)
• Sensitivity: ~2.5 mV/(mm/s) typical
• RoHS: Directive 2011/65/EU compliant
• Certifications: ATEX / IECEx Zone 0, 1, 2
• Warranty: 12 Months Factory Warranty

Performance Highlights

• Compact structure reduces space and vibration coupling.
• Pre-assembled for easy installation and sensor alignment.
• Supports dynamic velocity measurement up to 100 mm/s RMS.
• Excellent shielding against EMI and RFI noise.
• Compatible with all standard Bently Nevada monitoring systems.

Safe Use in Hazardous Areas

• Zone 0/1: Connect only to certified equipment meeting listed entity parameters.
• Use cable type A or B according to EN 60079-25 specifications.
• Zone 2: Ensure supply parameters stay below rated limits.
• Always confirm entity parameters before energizing.

Installation & Handling

• Mount housing on a clean, rigid surface using approved screws.
• Use explosion-proof glands on the 1/2-14 NPT port.
• Seal cable entries to maintain IP rating integrity.
• Ground the housing properly to prevent EMI disturbance.
• Check alignment before tightening sensor connections.

Shipping & Delivery

• Delivered worldwide through FedEx, UPS, or DHL.
• Packed in original factory box with protective foam inserts.
• Tracking number provided upon shipment confirmation.

Packaging Contents

• 1 × Pre-assembled 107770-01-02 Velocity Transducer Housing
• Mounting hardware & installation leaflet
• Calibration tag & unique serial label

FAQ — Technical Insights

• How can I check compatibility with older Velomitor sensors?
  Verify connector type and sensitivity rating; older 330500 sensors fit directly.
• Can this housing operate in outdoor refineries?
  Yes, stainless steel and IP65 rating protect against water and dust exposure.
• What happens if the cable gland is not sealed properly?
  Ingress protection fails, possibly causing corrosion or false vibration signals.
• Does orientation affect reading accuracy?
  Yes, install the sensor vertically for optimal sensitivity and linearity.
• How can I reduce installation noise interference?
  Use shielded cables and bond housing to ground; avoid routing near power lines.

Contact & Support

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825
• Reference part number 107770-01-02 when contacting support.
