ABB AI930S 3KDE175511L9300 Overview

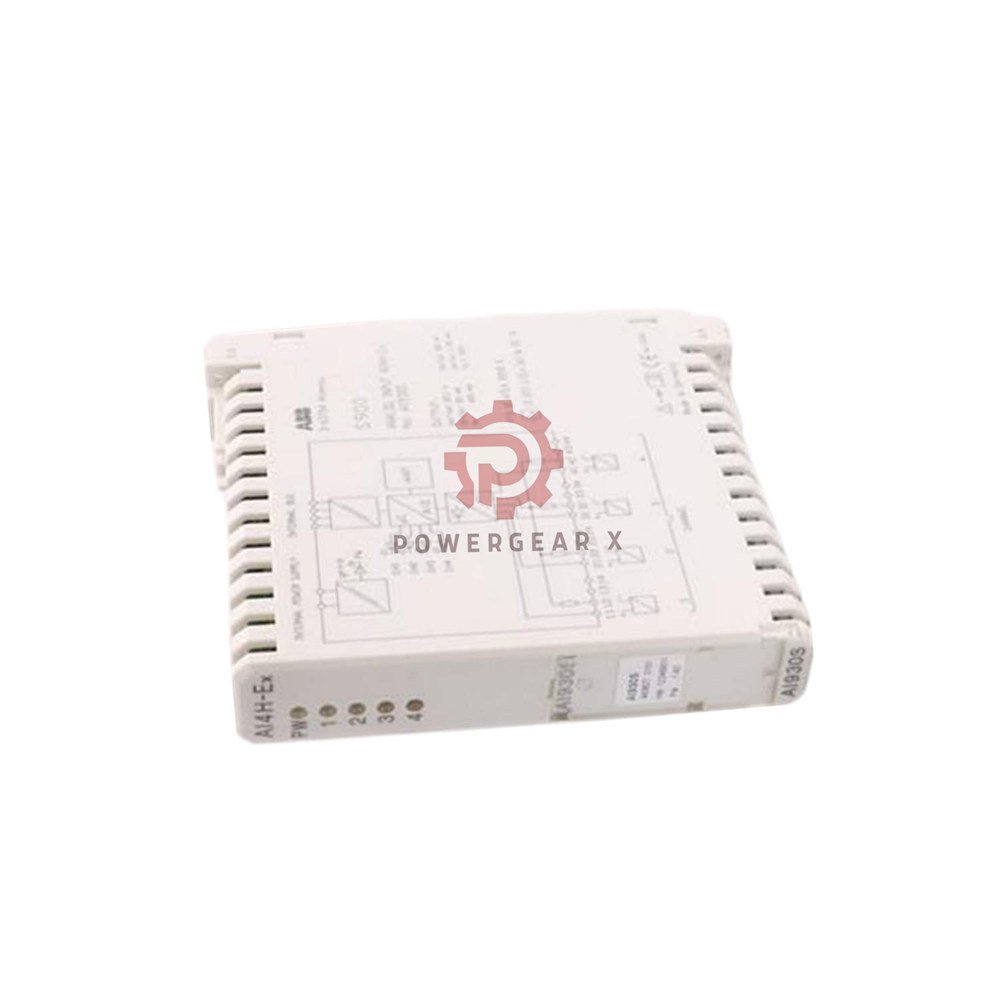

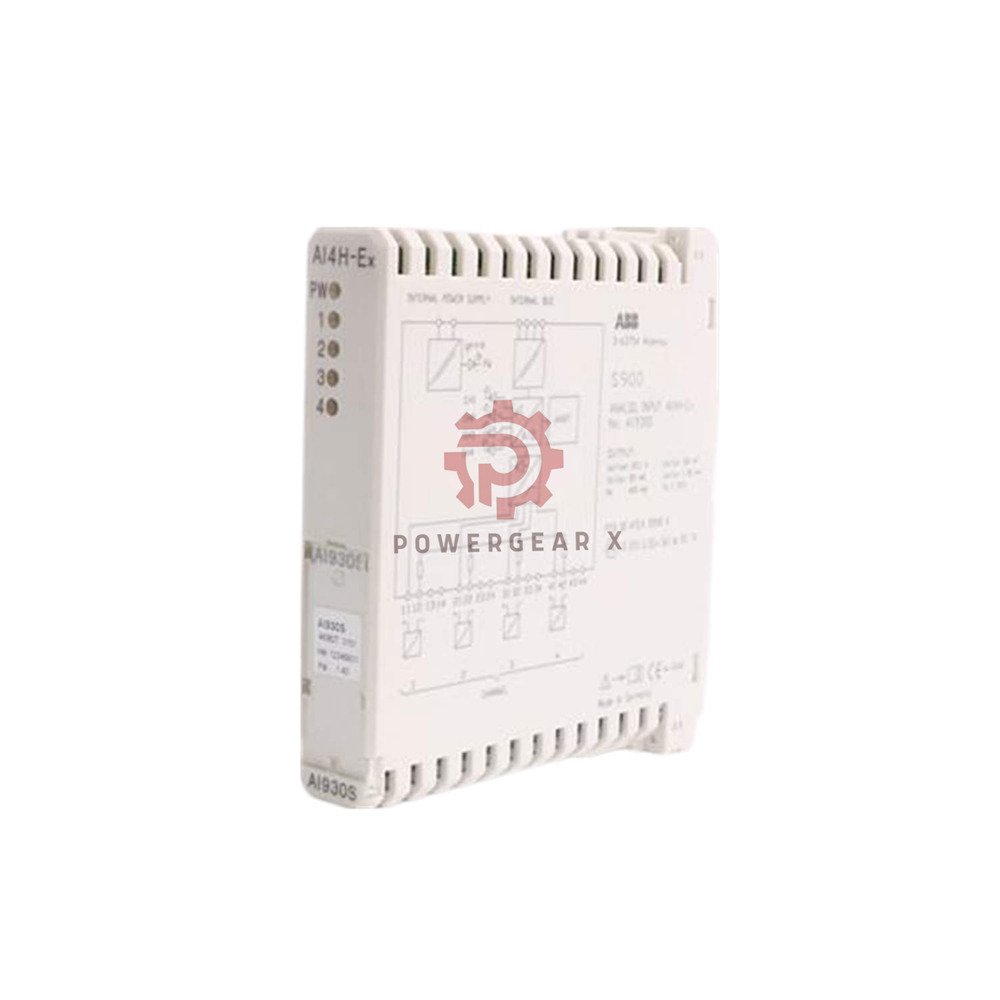

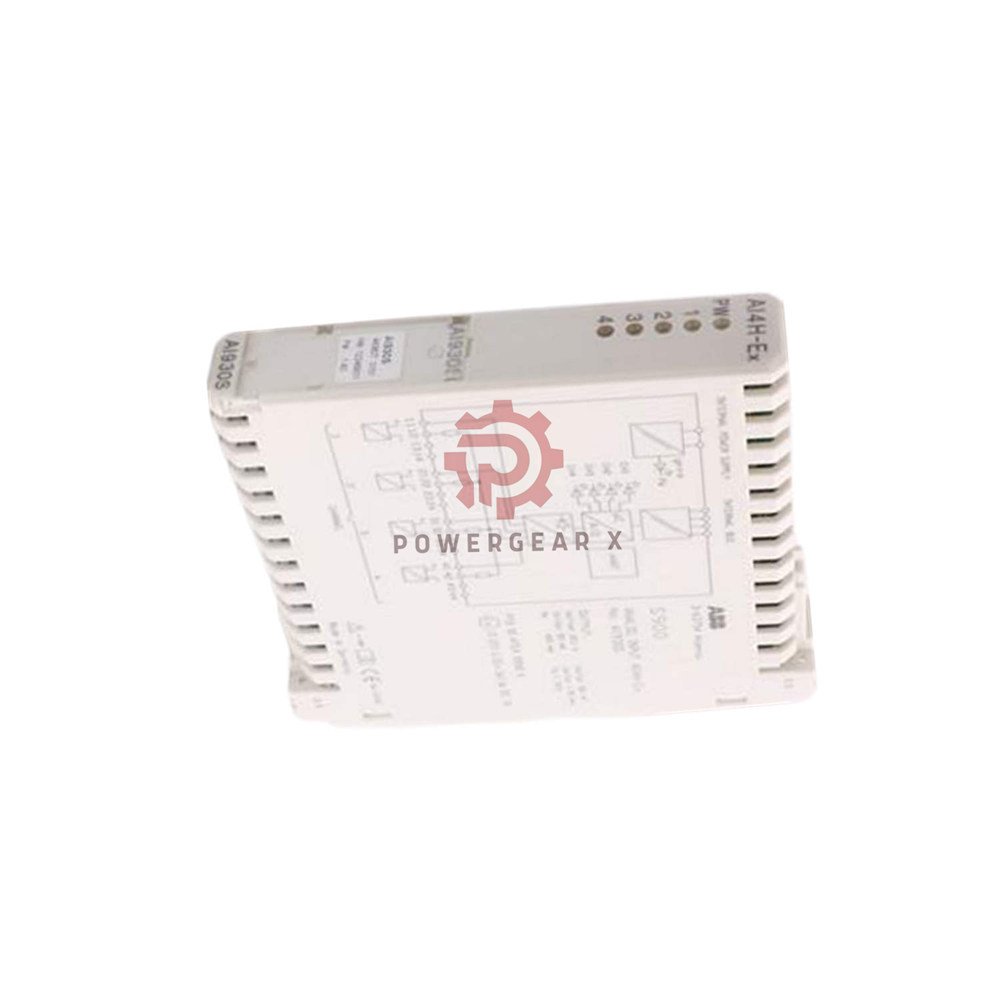

- ABB 3KDE175511L9300 (AI930S) – S900 HART analog input module for Zone 1 hazardous areas
- Installs directly in Zone 1 – reduces marshalling and wiring costs
- Accepts 4…20 mA loop-powered 2-wire transmitters with HART
- Transmits HART frames via PROFIBUS – access all HART variables
- ATEX certified for Zone 1, connects to sensors in Zone 0/1/2
Key Features & Benefits
- Hazardous area ready
- ATEX Zone 1 certification – safe for explosive environments
- Intrinsic safety for field devices in Zone 0/1/2
- G3 coating – protects against corrosive atmospheres (ISA-S71.04)
- HART communication
- Transmits HART frames via PROFIBUS – no separate HART multiplexer
- Cyclic HART variables – access secondary process values
- Full HART device integration via FDT/DTM
- Operational flexibility
- Hot Configuration in Run – change settings without stopping
- Hot Swap functionality – replace module during operation
- Redundancy ready – power and communication redundancy supported
- Diagnostics & maintenance
- Extended self-diagnostics – auto-detects faults
- Short circuit and wire break detection per channel
- FDT/DTM support – detailed configuration and asset management
Technical Specifications
- General information
- Brand: ABB
- Model: 3KDE175511L9300 (AI930S)
- Series: S900 I/O System Type S
- Module type: HART Analog Input (AI4H-Ex)
- Input characteristics
- Channels: 4 differential inputs
- Signal type: 4…20 mA (loop-powered 2-wire transmitters)
- HART: Yes – cyclic and acyclic communication
- SOE: Not applicable
- Intrinsic safety: Yes – Ex ia for Zone 0/1/2 sensors
- Isolation & protection
- Electrical isolation: input to bus, input to power
- Short circuit detection per channel
- Wire break detection per channel
- Common return for all 4 inputs
- Redundancy support
- Power redundancy: yes (via S900 system)
- Communication redundancy: yes (PROFIBUS DP)
- Module redundancy: no (individual module non-redundant)
Environmental & Certification
- Hazardous location
- ATEX: Zone 1 certified (module in Zone 1)
- Field devices: Connect intrinsically safe sensors in Zone 0/1/2
- Climatic conditions
- Operating temperature: -20°C to +60°C
- Humidity: Max 93% ±3% at 40°C (non-condensing)
- Corrosion protection
- G3 coating: Meets ISA-S71.04 for corrosive environments
- Compliance
- CE mark: Yes
- RoHS: Directive 2011/65/EU (EN 50581:2012)
- WEEE: Directive 2012/19/EU, Small Equipment category
Mechanical Specifications
- Dimensions (W×H×D)
- Width: 20 mm (0.79 in) – ultra-slim
- Height: 104 mm (4.09 in)
- Depth: 104 mm (4.09 in)
- Weight
- 0.14 kg (0.30 lbs) – lightweight
- Mechanics
- S900 Type S format – for Zone 1 installation
- Fits standard S900 backplanes and DIN rails
Installation Guidelines
- Hazardous area installation
- Suitable for Zone 1 directly – follow ATEX installation rules
- Use certified Zener barriers if required (intrinsically safe)
- Mounting
- Snap onto S900 DIN rail base (ordered separately)
- Requires S900 power supply and communication modules
- Wiring
- Use shielded twisted pair for HART signals
- Observe common return wiring for all channels
System Integration
- Communication
- PROFIBUS DP interface – connect to ABB or third-party DCS/PLC
- Redundant PROFIBUS supported
- HART integration
- Access primary variable (PV) and secondary HART variables
- Configure HART devices via FDT/DTM (e.g., ABB Field Information Manager)
- Configuration
- FDT/DTM technology – use any FDT frame application
- Hot configuration – change parameters while running
Package Contents & Warranty
- Box includes:
- 1× ABB AI930S (3KDE175511L9300) HART analog input module
- Product documentation with ATEX certificate
- Mounting instructions
- G3 coating compliance note
- Warranty: 12 months against manufacturing defects
- Certifications: ATEX Zone 1, CE, RoHS, WEEE
Shipping Information
- Express couriers: FedEx, UPS, DHL – insured worldwide
- Handling time: Ships within 24 hours on business days
- Tracking: Email notification with tracking number
Frequently Asked Questions
- Q: Can AI930S be used in Zone 0?A: No – module is for Zone 1 only. But it can read sensors installed in Zone 0.
- Q: What HART data can I get from this module?A: Primary variable (PV) plus up to 4 cyclic HART variables. All device data via FDT.
- Q: Does it power 2-wire transmitters?A: Yes – module provides loop power internally (intrinsically safe).
- Q: Can I mix AI930S with non-HART modules on same bus?A: Yes – S900 system supports mixed module types on same PROFIBUS segment.
- Q: What is the difference between AI930S and AI910B?A: AI930S has HART and Zone 1 certification. AI910B is non-HART for Zone 2.
- Q: How many HART devices can I connect?A: 4 channels – each channel supports one HART transmitter.
- Q: Does it support burst mode HART?A: Yes – cyclic HART variables can be transmitted in burst mode.
- Q: What software works best with AI930S?A: ABB Field Information Manager (FIM) or any FDT-compliant tool.
Selection Guide
- Choose AI930S if you need:
- HART communication with 4-20mA signals
- Zone 1 hazardous area installation
- Intrinsically safe loop power for transmitters
- G3 corrosion protection for harsh plants
- Consider alternatives if:
- No HART needed – choose ABB AI910B (Zone 2) or AI920B (HART optional)
- Zone 2 only – select AI910B to save cost
- Temperature sensors – use AI930B RTD/TC module
