Product details
⚡ Product Overview
- ABB AI930N 3KDE175513L9300 – 4-channel analog input module for S900 I/O systems.
- Designed for safe area (non-hazardous) installation, reducing marshalling and wiring costs.
- Powers 4-20 mA loop-powered 2-wire transmitters directly from the module.
- Supports HART communication and cyclic HART variables via PROFIBUS DP.
- Hot swap capability: replace modules without interrupting power supply.
📋 Key Features
- Redundancy & Flexibility
- Redundancy: Power and communication (system level)
- Hot Configuration in Run – no downtime
- Hot Swap functionality – replace during operation
- Diagnostics & Maintenance
- Extended Diagnostic via FDT/DTM
- Auto-diagnostics for simplified maintenance
- Short circuit and break detection per channel
- Protection & Environment
- G3 coating for corrosive atmospheres (ISA-S71.04)
- Electrical isolation: input/bus and input/power
- Common return for all inputs
- Communication
- PROFIBUS DP interface to control system
- Transmission of HART frames via fieldbus
- Cyclic HART variables available
🔧 Technical Specifications
- Product Identity
- Brand: ABB
- Model: AI930N | Article No: 3KDE175513L9300
- Type: Analog Input Module | Series: S900 I/O
- Input Specifications
- Channels: 4 analog inputs
- Signal Type: 4…20 mA (loop-powered 2-wire transmitters)
- HART: Yes – supports HART frames
- SOE: Not Available
- Redundancy: No (module level)
- Intrinsic Safety: No (for safe area)
- Environmental & Certification
- CE Mark: Yes
- RoHS: DIRECTIVE/2011/65/EU (EN 50581:2012)
- WEEE: DIRECTIVE/2012/19/EU | Category: Small Equipment
- Corrosive Atmosphere: ISA-S71.04 G3 coated
- Operating Temp: -20°C to +60°C
- Humidity: Max 93% ±3% at 40°C
- Mechanical Data
- Mechanics: S900 system format
- Width: 20 mm (0.79 in)
- Depth: 104 mm (4.09 in)
- Height: 104 mm (4.09 in)
- Weight: 0.135 kg (0.297 lbs)
🛠️ Installation & Operation
- Mounting: Snap-on DIN rail mounting for S900 backplane.
- Wiring: Direct field connection – eliminates marshalling cabinets.
- Replacement: Hot swap design – remove module while system runs.
- Configuration: Via FDT/DTM, PROFIBUS DP master.
- Diagnostics: Per-channel open/short detection, HART status.
📦 Package & Logistics

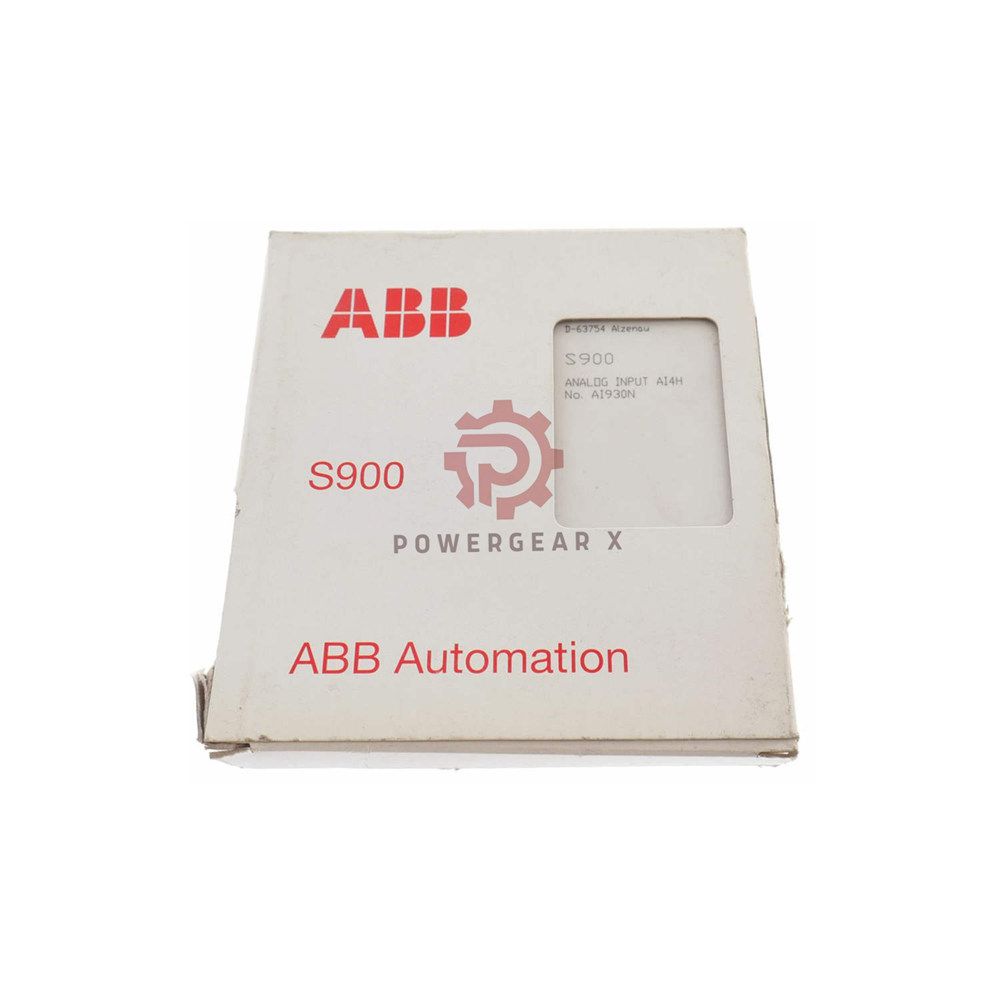

- Package includes: 1x ABB AI930N module (3KDE175513L9300), anti-static bag, product label.
- Warranty: 12 months against manufacturing defects from invoice date.
- Shipping:
- Express couriers: FedEx, UPS, DHL – fully tracked.
- Orders dispatched within 24 hours (stock available).
❓ FAQ – Selection & Experience Guide
- Q: Can AI930N be installed in Zone 1 hazardous area?A: No, this is Type N for safe (non-hazardous) areas. For Zone 1/2, use ABB S900 intrinsically safe variants.
- Q: Does this module provide 24V loop power to transmitters?A: Yes, AI930N supplies power for 4-20 mA loop-powered 2-wire transmitters directly.
- Q: What is G3 coating and why is it important?A: G3 coating protects against corrosive gases. It ensures long life in harsh industrial environments.
- Q: How do I configure HART variables?A: Use FDT/DTM frame application. HART frames transmit cyclically via PROFIBUS to the control system.
- Q: Can I replace this module without shutting down?A: Yes, hot swap is supported. Remove and insert new module while power remains on.
