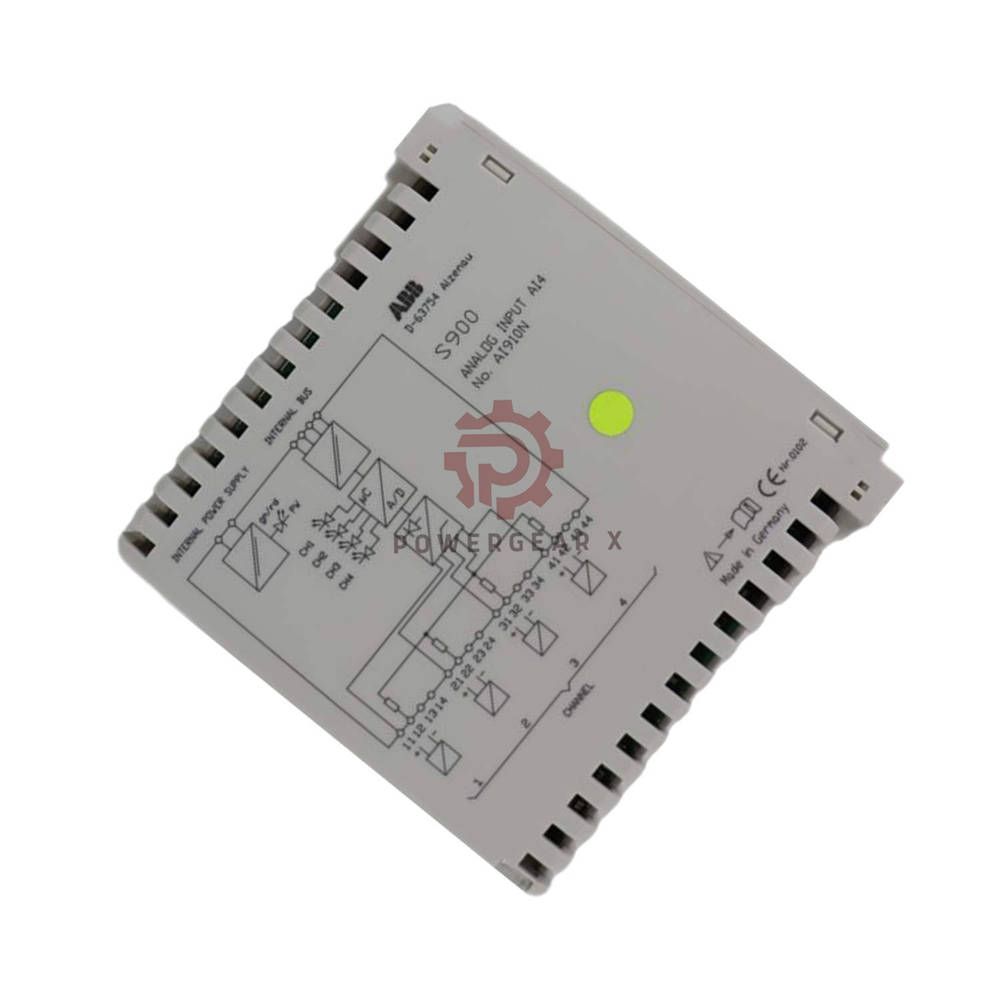

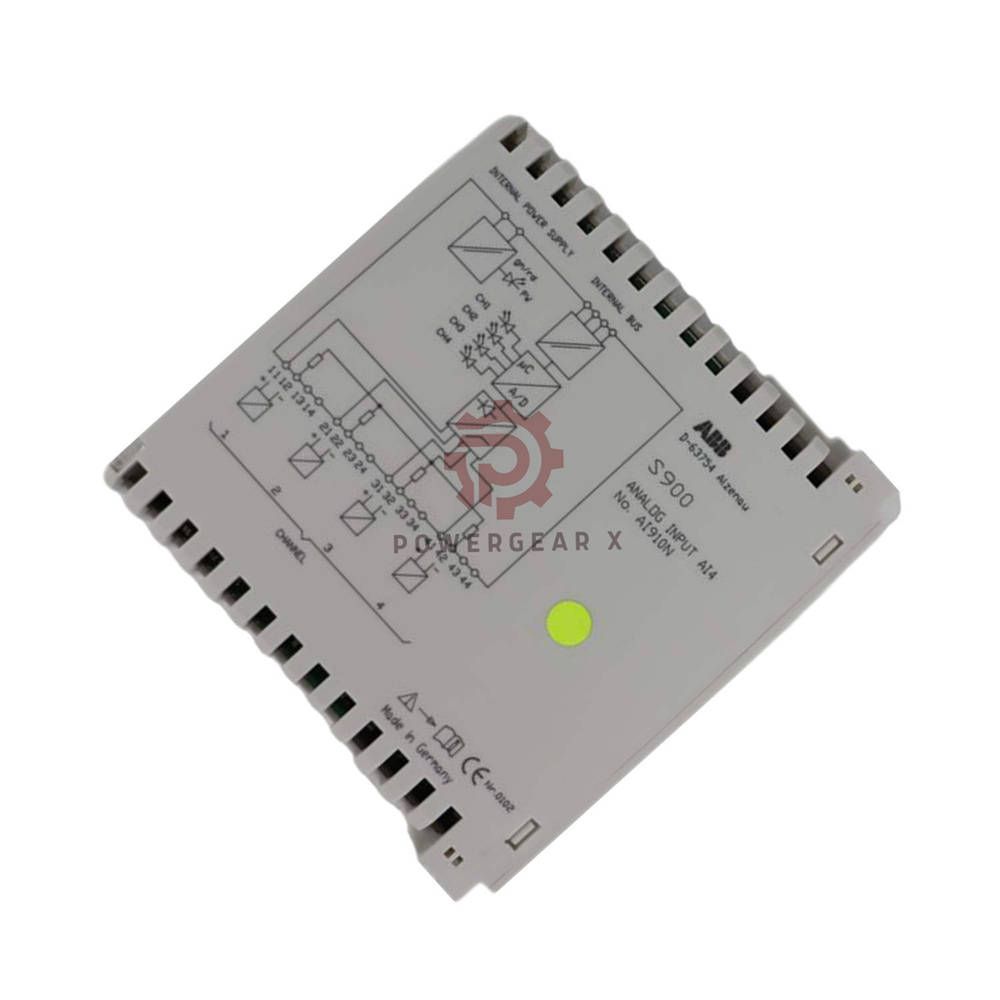

ABB AI910N 3KDE175513L9100 Redundancy Module | S900 I/O Series

Product Brief
The ABB AI910N (3KDE175513L9100) is an analog input module for the S900 remote I/O system. It accepts 4…20 mA signals from 2‑wire loop‑powered transmitters. Designed for non‑hazardous areas, it offers 4 channels with electrical isolation, short/break detection, and hot‑swap capability. The module features G3 coating for harsh environments and supports advanced diagnostics via FDT/DTM.

Technical specifications

Brand & Model
- Brand: ABB
- Model: AI910N
- Article number: 3KDE175513L9100
- Series: S900 I/O (Type N, safe area)
Module type
- Type: Analog input
- Channels: 4
- Signal: 4…20 mA (loop powered)
- HART: No
- SOE: N/A
- Redundancy: No (module itself)
- Intrinsic safety: No
Key features
- Redundancy support: Power & communication (system level)
- Hot Configuration in Run
- Hot Swap – replace during operation
- Extended diagnostics via FDT/DTM
- G3 coating for corrosive atmospheres
- Short & break detection
- Electrical isolation: Input/bus, input/power
- Common return for all inputs
Environmental & certification
- CE mark: Yes
- Corrosive atmosphere: ISA-S71.04 G3
- Operating temperature: -20…60°C
- Humidity: 93% RH at 40°C
- RoHS: 2011/65/EU
- WEEE: 2012/19/EU, small equipment
Mechanical data
- Width: 20 mm (0.79 in)
- Depth: 104 mm (4.09 in)
- Height: 104 mm (4.09 in)
- Weight: 0.13 kg (0.29 lbs)
- Mechanics: S900 system

Installation & setup

Mounting: On S900 backplane (safe area only)
Wiring: 2‑wire loop‑powered transmitters to 4 channels
Communication: PROFIBUS DP to control system
Replacement: Hot swap without power interruption

Maintenance & diagnostics

Self‑diagnostics: Short, break, and loop status
Configuration: FDT/DTM for detailed setup
Auto‑diagnostics: Simplifies maintenance
G3 coating: Protects electronics in harsh air

Compatibility & integration

System: ABB S900 remote I/O
Protocol: PROFIBUS DP
Location: Safe (non‑hazardous) areas
Transmitters: 4…20 mA loop‑powered 2‑wire

Package contents & shipping

Includes: ABB AI910N module, documentation
Warranty: 12 months against defects
Couriers: FedEx, UPS, DHL – worldwide tracked

Typical applications

Process automation (safe area)
Oil & gas monitoring
Chemical plant data acquisition
Water treatment analog sensing
Industrial machine diagnostics

FAQ – selection guide & experience

Can AI910N be used in Zone 1 hazardous area?
No. This Type N module is only for safe (non‑hazardous) areas. For Zone 1/2, choose AI910S variant.
Does it support HART communication?
No. AI910N is 4…20 mA only without HART. For HART, consider ABB AI930 models.
What does G3 coating mean for durability?
G3 protects against corrosive gases per ISA‑71.04. Good for industrial and marine environments.
Can I replace it while system is running?
Yes. Hot swap is supported. No need to cut power to the backplane.
