Product details
Product Brief

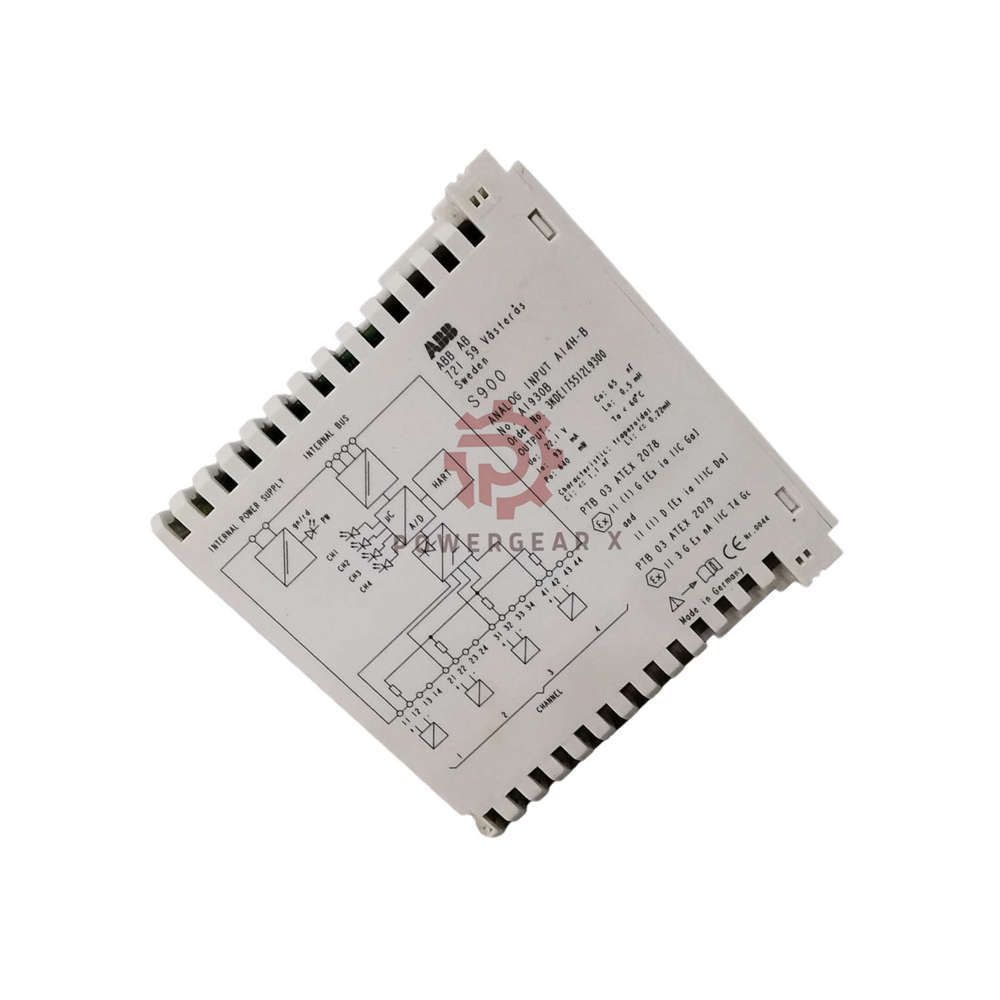

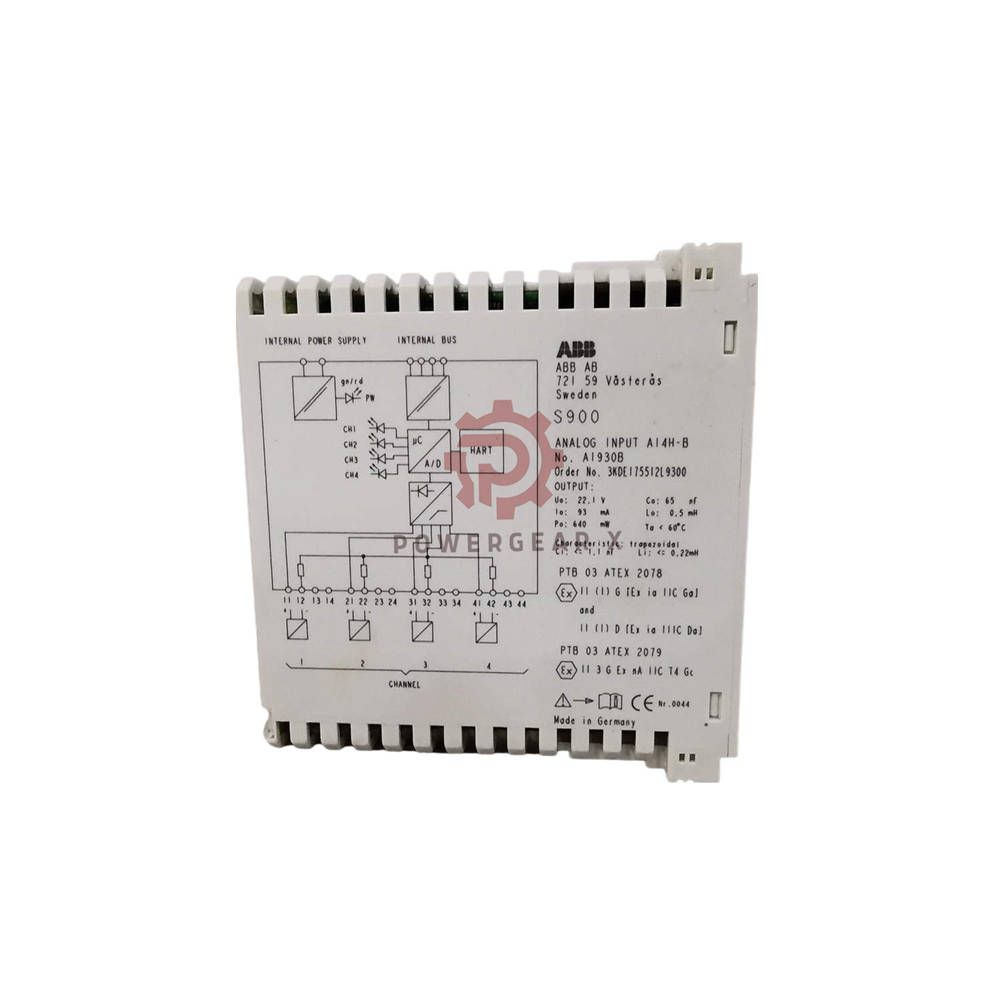

- AI930B 3KDE175512L9300 – ABB analog input module for S900 I/O system
- Install in non-hazardous areas or directly in Zone 2 hazardous locations
- Communicates via PROFIBUS DP with control system level
- Field installation reduces marshalling and wiring costs
- Sturdy, error-tolerant design with easy service features
- Integrated disconnection allows replacement during operation
- For connecting intrinsically safe field devices in Zone 2, Zone 1 or Zone 0
- Input and power supply for 4…20 mA loop powered 2-wire transmitters
Key Features & Benefits
- Safety & certification
- ATEX certification for Zone 2 installation
- Intrinsic safety for hazardous locations
- G3 coating for corrosive atmosphere protection
- CE marked, RoHS and WEEE compliant
- Operational flexibility
- Hot swap functionality – replace during operation
- Hot configuration in run without stopping system
- Redundancy options for power and communication
- Diagnostic capabilities
- Extended diagnostic with auto-diagnostics
- Short circuit and break detection
- Configuration via FDT/DTM tools
- Signal & communication
- 4 channels analog input 4…20 mA
- HART protocol support – cyclic HART variables
- Transmission of HART frames via fieldbus
- Electrical isolation between input/bus and input/power
- Common return for all 4 inputs
Technical Specifications
- Brand & model
- Brand: ABB
- Model: AI930B
- Article number: 3KDE175512L9300
- Type: Analog Input Module
- Series: S900 I/O System
- Input specifications
- Number of channels: 4
- Signal type: 4…20 mA
- HART support: Yes
- SOE: Not available
- Intrinsic safety: Yes
- Redundancy: No
- Mechanical
- Mechanics: S900 format
- Width: 20 mm (0.79 in)
- Depth: 104 mm (4.09 in)
- Height: 104 mm (4.09 in)
- Weight: 0.14 kg (0.31 lbs)
- Environmental & certification
- CE mark: Yes
- Hazardous location: ATEX Zone 2
- Corrosive atmosphere: ISA-S71.04 G3
- Operating temperature: -20 °C to 60 °C
- Humidity: max 93% ±3% at 40°C
- RoHS: DIRECTIVE/2011/65/EU
- WEEE: DIRECTIVE/2012/19/EU
- WEEE category: Small Equipment
Installation & maintenance
- Install directly in Zone 2 hazardous areas
- Hot swap capability – no primary voltage interruption
- Integrated disconnection mechanisms for safe replacement
- Auto-diagnostics for simplified maintenance
- FDT/DTM based configuration tools
Package contents
- ABB AI930B 3KDE175512L9300 analog input module ×1
- Documentation and quick reference guide
- 12‑month warranty against manufacturing defects
Shipping & delivery
- Express carriers: FedEx, UPS, DHL
- Tracking number provided for all shipments
- Secure anti‑static packaging for sensitive electronics
Typical applications
- Oil and gas industry hazardous areas
- Chemical processing plants Zone 2 locations
- Connecting 2-wire 4-20 mA transmitters
- Remote I/O in harsh industrial environments
- Process automation with HART devices
FAQ – experience & selection guide
- Can I use AI930B in Zone 1 hazardous area?Yes, it connects intrinsically safe devices installed in Zone 1, though module itself is Zone 2 rated.
- What HART features does this module support?Transmits HART frames via fieldbus and provides cyclic HART variables.
- Is the AI930B hot-swappable in a running system?Yes, integrated disconnection allows replacement during operation without interrupting power.
- What does G3 coating mean for this module?G3 coating protects against corrosive industrial atmospheres per ISA-S71.04 standard.
- 选购指导: Need redundancy for critical applications?AI930B itself has no redundancy, but S900 system supports redundant power and communication.
- How fast is shipping with FedEx or DHL?Express delivery typically 3-5 business days worldwide with full tracking.
- Does the 12-month warranty cover field failures?Yes, warranty covers manufacturing defects under normal operating conditions.
- Can I configure this module without special software?Requires FDT/DTM based tools for full configuration and diagnostics.
