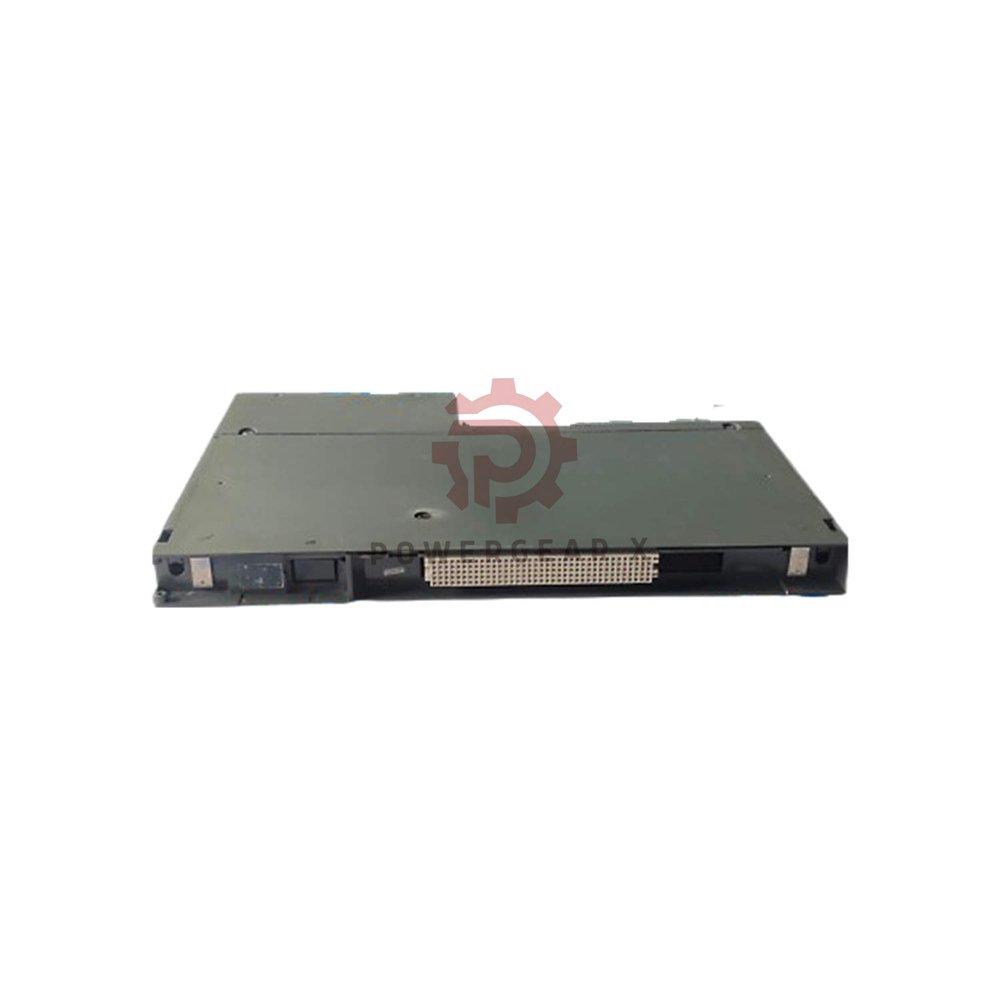

6ES7463-2AA00-0AA0 Siemens S7-400 IM463-2 Transmitter Interface Module

Product Overview

• Siemens 6ES7463-2AA00-0AA0 – transmitter interface module for SIMATIC S7-400 systems
  • Connects S7-400 to distributed SIMATIC S5 expansion modules via IM314
  • Extends your existing S5 I/O infrastructure into a modern S7-400 system
  • Supports cable runs up to 600 meters between modules
  • Ideal for system upgrades where you want to keep legacy S5 I/O

Technical Specifications – Hierarchical View

• General information
  • Brand: Siemens
  • Model: 6ES7463-2AA00-0AA0
  • Series: SIMATIC S7-400
  • Product type: IM463-2 Transmitter Interface Module
  • Weight: approx. 360 g
  • Dimensions: 25 x 290 x 217 mm (W x H x D)
• Power supply
  • Backplane bus voltage: 5 V DC
  • Current draw: max. 1320 mA from backplane bus
  • No external 24 V supply required
• Hardware configuration
  • Connects to S5 expansion modules via IM314 interface
  • Maximum cable length: 600 meters between first and last module
  • Supports distributed I/O architectures

Expert Review – Engineer’s Insight

• This module solves a common upgrade problem: connecting new S7-400 CPUs to existing S5 I/O racks. You avoid replacing working field hardware.
• The 600-meter cable length offers flexibility for large plant layouts. You can locate I/O racks far from the central CPU.
• Power draw is significant at 1320 mA. Check your S7-400 rack power budget before installation.
• This is a pure interface module. It does not process logic or perform control functions itself.

Compatible Devices & Applications

• Works with SIMATIC S7-400 CPUs (standard and redundant systems)
• Connects to SIMATIC S5 expansion racks via IM314 interface modules
• Ideal for: system upgrades, plant expansions, legacy I/O preservation
• Typical industries: automotive, chemical, power generation, manufacturing
• Use when you have significant installed S5 I/O that you want to keep

Installation & Wiring Guide

• Installation steps
  • Mount IM463-2 in an S7-400 rack (U-bus connector required)
  • Connect the interface cable to the S5 IM314 module
  • Keep total cable length under 600 meters
  • Verify rack power budget before power-up (1320 mA draw)
• Configuration notes
  • Configure the S7-400 CPU to recognize remote S5 I/O
  • Use STEP 7 hardware configuration to assign addresses
  • S5 I/O appears as standard peripheral in S7-400 address space

Package Contents

• 1x Siemens 6ES7463-2AA00-0AA0 transmitter interface module
• No cables or connectors included (order separately)
• No configuration software included

Shipping & Warranty

• 12-month warranty against manufacturing defects
• Shipping: FedEx, UPS, DHL (calculated at checkout)
• Orders dispatch within 12-24 hours on business days

Comparison – IM463-2 vs IM463-1

• 6ES7463-2AA00-0AA0 (IM463-2) – transmitter interface for S5 expansion via IM314, 600m cable length, distributed I/O support
• 6ES7463-1AA00-0AA0 (IM463-1) – receiver interface module for S5 expansion (opposite end), works with IM463-2
• You need one IM463-2 (transmitter) and one IM463-1 (receiver) for each distributed S5 rack
• Choose IM463-2 for the S7-400 side of the connection

Frequently Asked Questions

• Q: What is the purpose of the IM463-2 module?
  • A: It connects an S7-400 CPU to remote S5 expansion racks. This allows you to keep existing S5 I/O modules in a new S7-400 system.
• Q: Which S5 module works with the IM463-2?
  • A: It connects to the S5 IM314 interface module. The IM314 sits on the S5 expansion rack side.
• Q: How far can I place the S5 rack from the S7-400 CPU?
  • A: Up to 600 meters between the IM463-2 and IM314 modules. This covers most plant layouts.
• Q: Can I connect multiple S5 racks to one IM463-2?
  • A: No, each IM463-2 connects to a single S5 expansion rack. Use multiple IM463-2 modules for multiple racks.
• Q: Does the IM463-2 require external 24V power?
  • A: No, the module draws all power from the S7-400 backplane (5V DC, 1320 mA). No external power supply needed.

Buying Guide – Selection Advice

• Choose 6ES7463-2AA00-0AA0 when upgrading from S5 to S7-400 while keeping S5 I/O modules.
• You will also need the IM463-1 receiver module on the S5 side of the connection.
• Verify your S7-400 rack power budget: IM463-2 draws 1320 mA. This is a high-current module.
• Order cables separately: use shielded twisted-pair cable for the 600m run.
• Check compatibility: confirm your S5 IM314 is the correct version for this interface.
