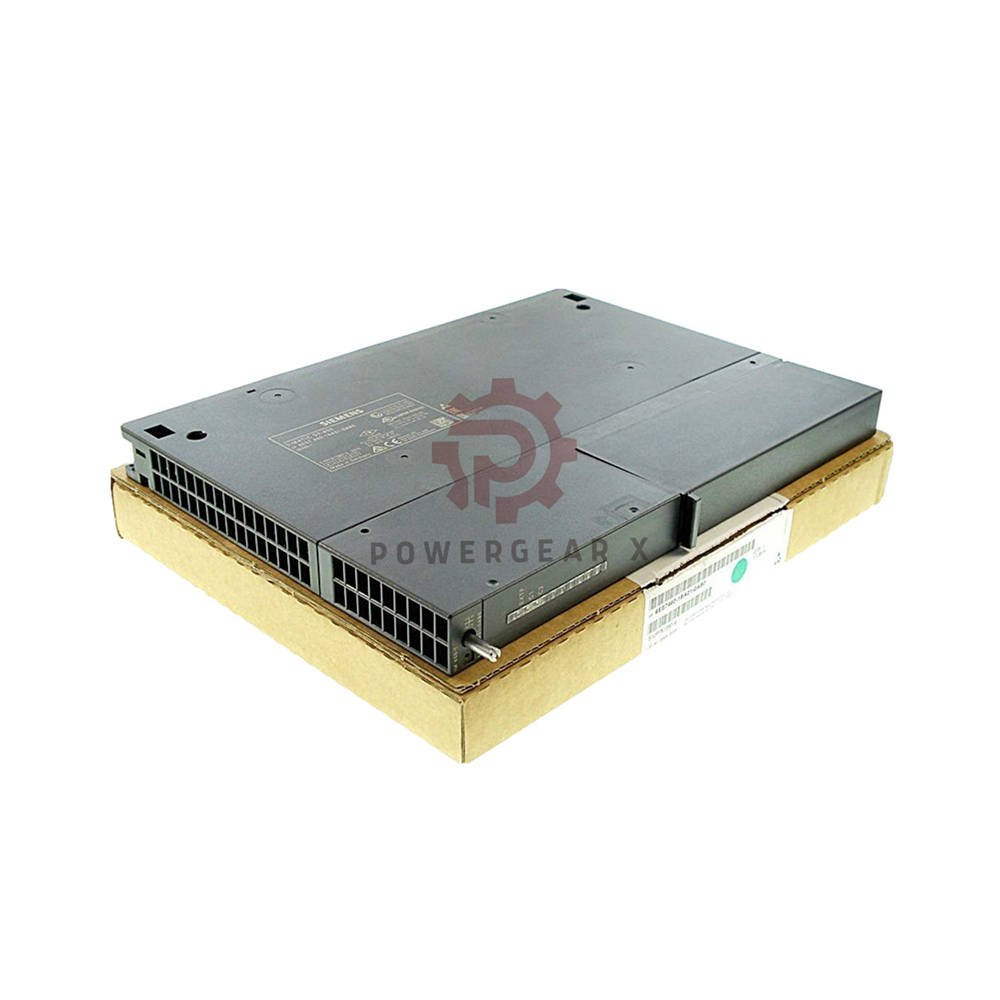

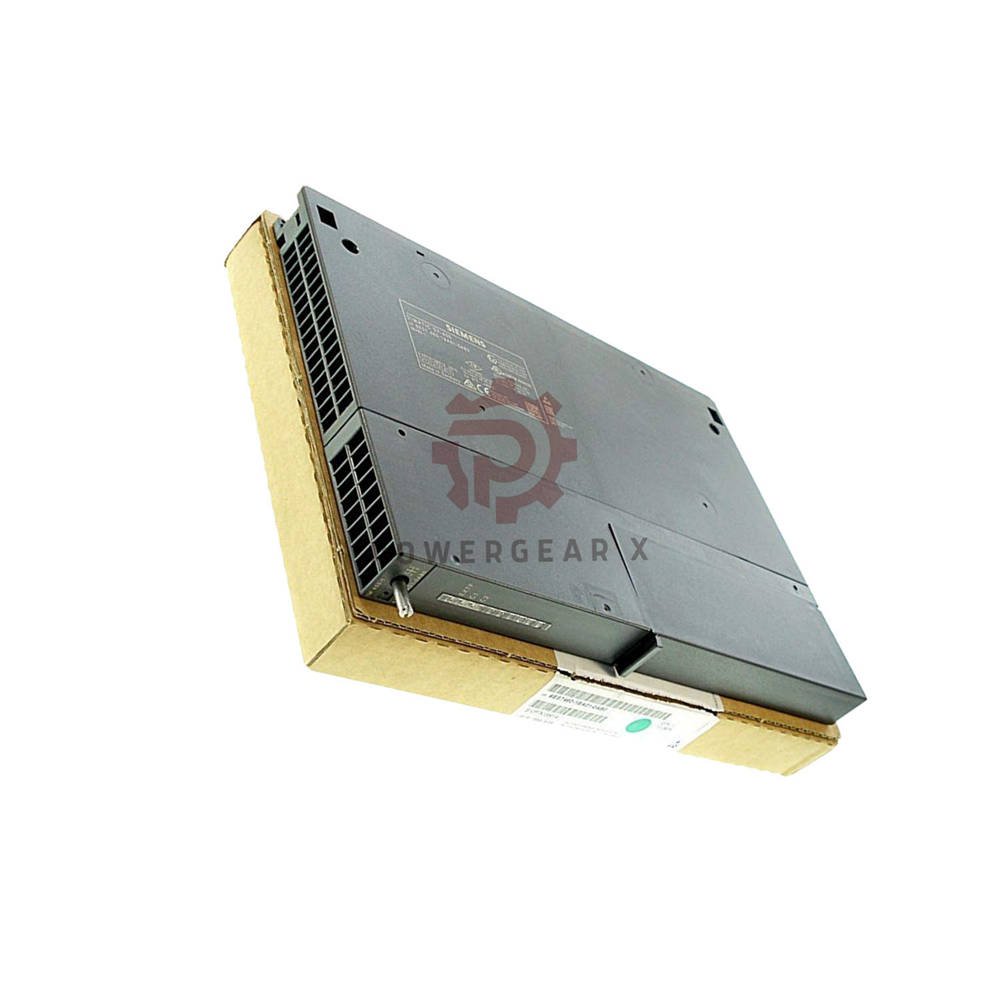

6ES7460-1BA01-0AB0 Siemens S7-400 Interface Module | Send IM 460-1

Product Overview

• Siemens 6ES7460-1BA01-0AB0 is an interface module for the SIMATIC S7-400 system.
  • Works as a Send IM 460-1 for central coupling with PS transfer.
  • Connects central racks in multi-rack configurations.
  • Does not include C bus functionality.

Key Features at a Glance

• Central coupling interface
  • Connects the central rack to expansion racks.
  • Transfers data via the S7-400 backplane bus.
• Low power consumption
  • Draws only 85mA from the 5V backplane bus.
  • Maximum power loss: 425mW.
• Simple hardware configuration
  • Supports cable lengths up to 1.5 meters.
  • Easy installation in standard S7-400 racks.
• Compact design
  • Width: 25mm, saves rack space.
  • Standard S7-400 form factor.

Technical Specifications

• Brand & Model
  • Brand: Siemens
  • Model: 6ES7460-1BA01-0AB0
  • Series: SIMATIC S7-400
  • Type: Interface Module (Send IM 460-1)
• Power Supply
  • Backplane bus: 85mA at 5V DC
  • Power loss: max. 425mW
• Hardware Configuration
  • Max cable length: 1.5 meters
  • Between first and last interface module
• Dimensions & Weight
  • Width: 25mm | Height: 290mm | Depth: 280mm
  • Weight: approx. 600g
• Special Note
  • This module does NOT include C bus functionality.
  • For C bus applications, choose different IM module.

Expert Review – Field Engineer’s Perspective

• The 6ES7460-1BA01-0AB0 is essential for expanding S7-400 systems.
  • Connects central rack to expansion racks reliably.
  • Low power consumption keeps system cool.
  • Simple design reduces configuration time.
• Recommended for large automation systems with multiple racks.
  • Ideal for automotive, chemical, and power plants.
  • Works with UR1, UR2, and CR3 racks.

Manager’s Insight – Selection Advice

• Choose 6ES7460-1BA01-0AB0 for basic rack-to-rack connections.
  • Use when you do NOT need C bus communication.
  • Cost-effective for standard expansion needs.
• For C bus support, consider 6ES7460-1BA00-0AB0 or 6ES7460-1BA01-0AB0 with C bus.
• For longer distances, use fiber-optic IM modules.

Compatible Systems & Applications

• Compatible PLCs
  • Siemens SIMATIC S7-400 CPUs (all models)
  • Works with UR1, UR2, and CR3 racks
• Compatible Interface Modules
  • Use with IM 461-0 for receive interface.
  • Works with standard S7-400 bus connectors.
• Typical Applications
  • Multi-rack S7-400 systems with up to 1.5m distance
  • Distribution of I/O across multiple cabinets
  • Centralized control with remote I/O racks
  • System upgrades requiring additional rack slots

Installation Guide

• Mounting
  • Insert module into any S7-400 slot.
  • Use in central rack (CR) only.
  • Secure with locking mechanism.
• Wiring & Configuration
  • Connect to IM 461-0 in expansion rack.
  • Max cable length: 1.5 meters.
  • No external power supply needed.
• Configuration Tips
  • No separate configuration required in STEP 7.
  • Module automatically recognized by CPU.
  • Check bus connector alignment carefully.

Package Contents

• 1x Siemens 6ES7460-1BA01-0AB0 interface module
• No cables or bus connectors included

Shipping & Warranty

• Warranty: 12 months against manufacturing defects
• Dispatch: Within 12-24 hours on business days
• Shipping: FedEx, UPS, or DHL

Comparison with Similar Models

• 6ES7460-1BA01-0AB0 vs 6ES7460-1BA00-0AB0
  • BA01 is newer version with updated components.
  • BA00 is older version, may have limited availability.
  • BA01 offers better reliability and compatibility.
• 6ES7460-1BA01-0AB0 vs 6ES7460-1BJ00-0AB0
  • BJ00 supports longer cable distances (up to 100m).
  • BJ00 requires external power supply (24V DC).
  • BA01 is for short distance (1.5m) and draws power from backplane.
• 6ES7460-1BA01-0AB0 vs 6ES7460-1CA00-0AB0
  • CA00 includes C bus functionality for communication.
  • BA01 does NOT have C bus.
  • CA00 is for systems requiring C bus data exchange.

Frequently Asked Questions

• Q: What is the maximum distance this module supports?
  • A: The maximum cable length is 1.5 meters between the first and last interface module.
• Q: Does this module require external power supply?
  • A: No, the module draws 85mA from the 5V backplane bus. No external power supply needed.
• Q: Can I use this module with any S7-400 rack?
  • A: Yes, it works with UR1, UR2, and CR3 racks. Install it in the central rack only.
• Q: What is the difference between Send IM and Receive IM?
  • A: Send IM (IM 460) goes in the central rack. Receive IM (IM 461) goes in the expansion rack.
• Q: Why does this module not have C bus?
  • A: C bus is for communication between CPUs in multi-processor systems. This module is for standard I/O rack expansion only.

Buyer’s Selection Guide

• Choose 6ES7460-1BA01-0AB0 for short-distance rack expansion (up to 1.5m).
• Need longer distance? Select 6ES7460-1BJ00-0AB0 for up to 100m.
• Need C bus for multi-CPU communication? Choose 6ES7460-1CA00-0AB0.
• Always match with the correct receive module (IM 461) in expansion racks.
