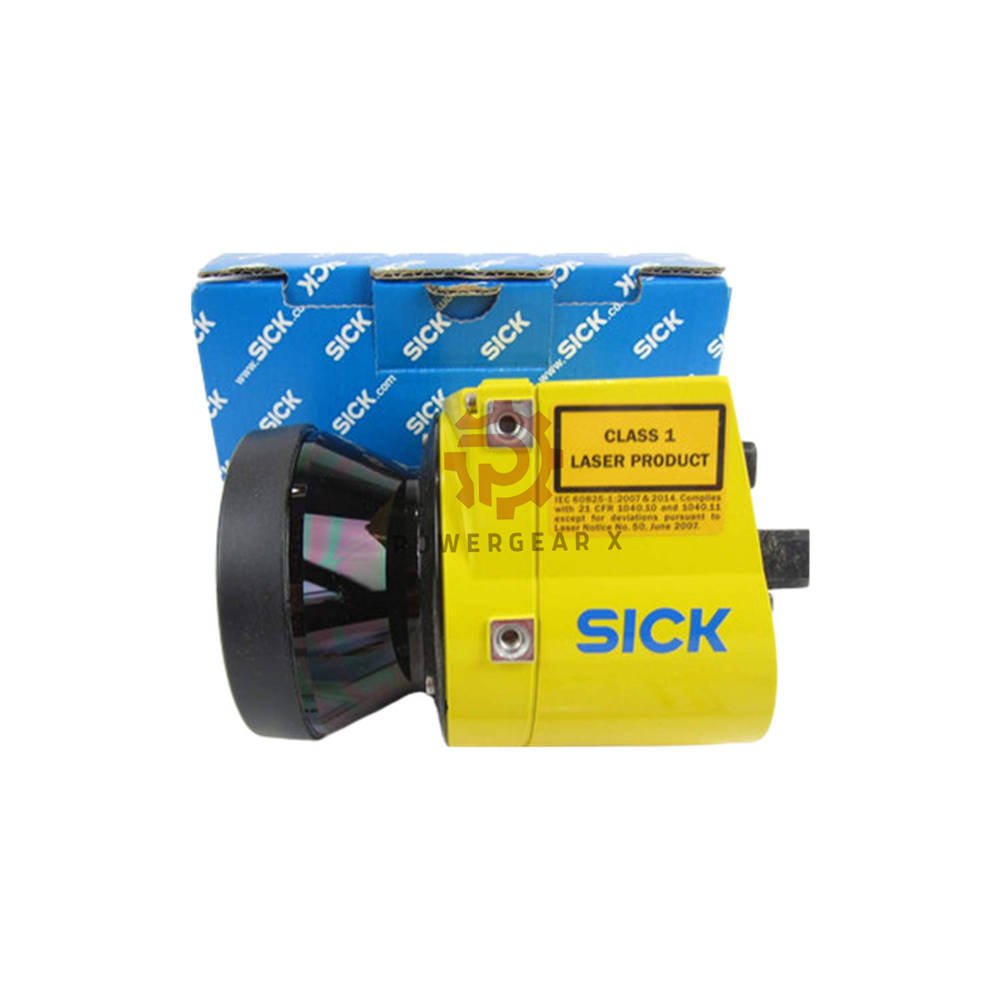

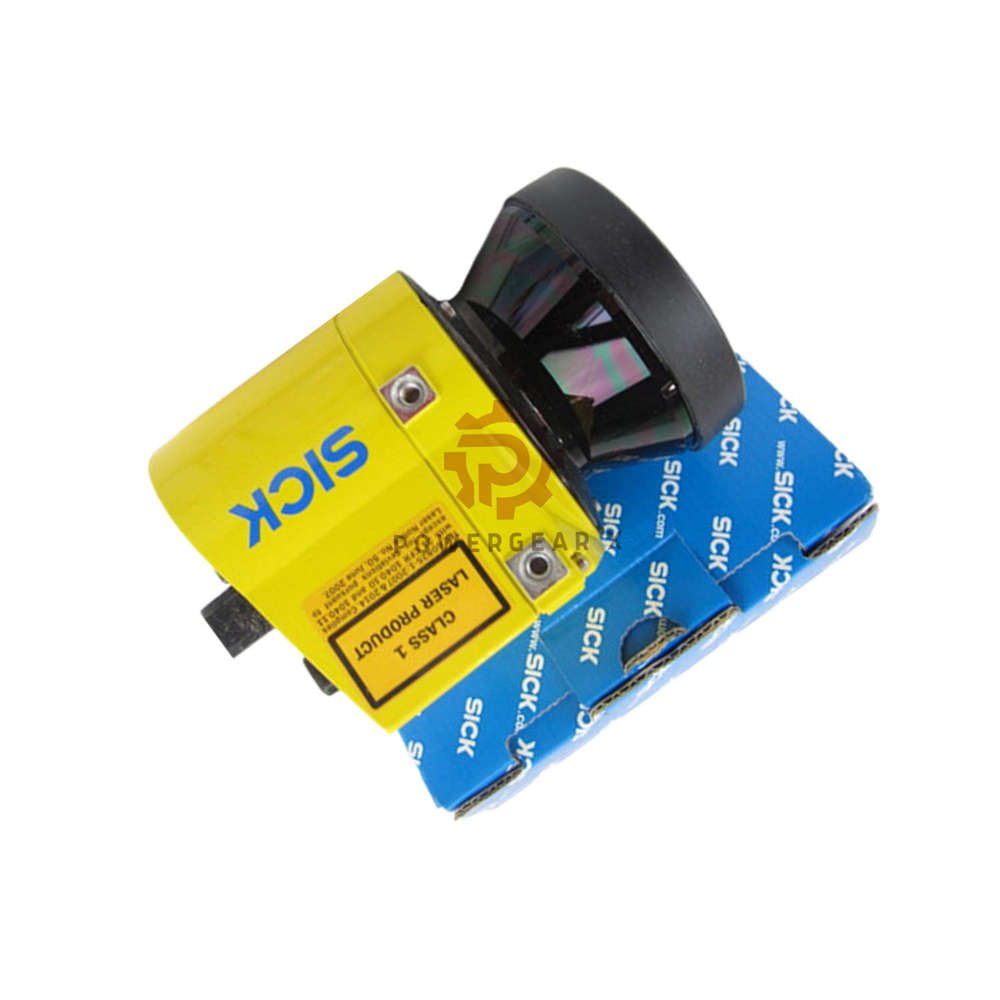

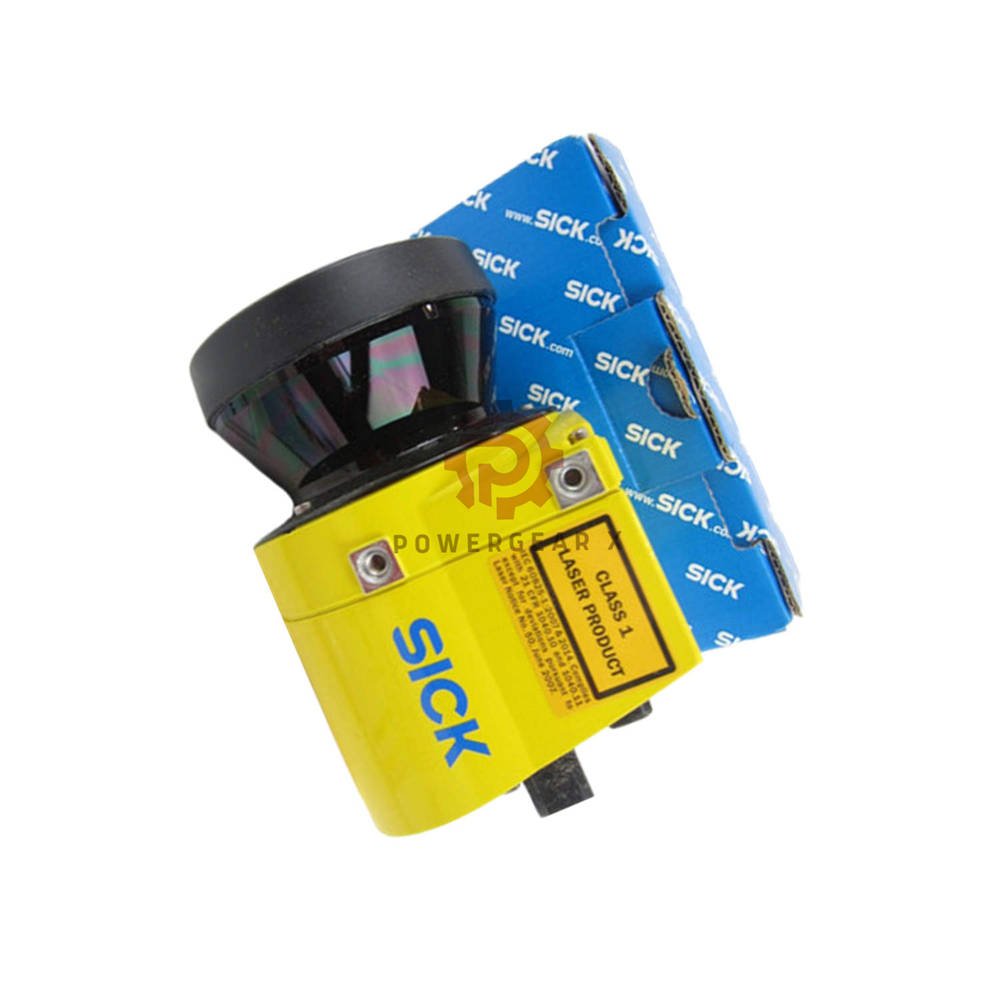

SICK S30B-2011BA Safety Laser Scanner S300 Standard

Product Overview

The SICK S30B-2011BA is a rugged Type 3 safety laser scanner for indoor use. It offers a 2 m protective field and an 8 m warning field. This sensor provides reliable object detection with a 270° scanning angle. It is ideal for mobile and stationary machine safeguarding.

Key Features

• Safety integrity: SIL 2 (IEC 61508) and PL d (EN ISO 13849)
• Protective field: 2 m range with 100 mm supplement
• Warning field: 8 m at 15% reflectivity
• Scanning angle: 270° with 0.5° angular resolution
• Response time: 80 ms for fast machine stopping
• Configuration: up to 3 fields via CDS software
• Interfaces: RS-232, RS-422, and EFI for safe communication
• Housing: IP65, aluminum die-cast, yellow RAL 1021

Technical Specifications

• Brand: SICK
• Model: S30B-2011BA
• Series: S300 Standard
• Measurement range: 0 m to 19 m (30 m max distance)
• Resolution (configurable): 30 / 40 / 50 / 70 mm
• Angular resolution: 0.5°
• Response time: 80 ms
• Supply voltage: 24 V DC (16.8 V … 30 V DC)
• Power consumption: 0.33 A (typical), 1.7 A (max)
• Outputs: 2 OSSD pairs (250 mA each) + 3 diagnostic outputs
• Ambient temperature: –10 °C … +50 °C
• Enclosure rating: IP65 (IEC 60529)
• Vibration & shock: Class 5M1 (IEC 60721-3-5)
• Laser class: 1 (eye-safe, 905 nm)
• Detectable remission: 1.8% … >1000% (reflectors)

Installation & Commissioning

• Mount the scanner with 270° aperture facing the hazard zone.
• Use the M12 5-pin male connector for power and I/O.
• Configure field sets via PC and CDS software (RS-232).
• Adjust multiple sampling (2–16) and reset delay (2–60 s).
• EDM (external device monitoring) and restart interlock are integrated.

Maintenance & Diagnostics

• Integrated configuration memory stores all settings.
• Diagnostic outputs provide real-time status signals.
• RS-422 interface outputs measured distance data.
• Easy firmware updates via EFI (SICK device communication).
• Scratch-resistant polycarbonate cover ensures long life.

Compatibility & Certifications

• Complies with IEC 61496 (Type 3), IEC 61508 (SIL 2), EN ISO 13849 (PL d).
• Works with most PLCs and safety relays via OSSD outputs.
• EFI interface supports SICK safety controllers.
• Laser class 1 (IEC 60825-1) – safe for human exposure.
• IP65 rated – protected against dust and water jets.

Package Contents

• SICK S30B-2011BA safety laser scanner
• M12 5-pin male connector (without cable)
• Quick start guide (digital download)
• CDS configuration software (download link)
• Mounting bracket kit (optional, order separately)

Warranty & Shipping

• Warranty: 12 months from date of invoice.
• Shipping: 12–24 hours dispatch (stock permitting).
• Couriers: FedEx, UPS, or DHL (tracked).

Expert Review

The SICK S30B-2011BA delivers robust safety for AGVs and industrial robots. Its 270° field and 80 ms response time meet high safety demands. Configuration via CDS is intuitive. The EFI interface simplifies integration with SICK safety networks. For indoor use, this scanner is a reliable choice.

Manager’s Insight

This model balances cost and performance for standard applications. The triple field set allows flexible zone switching. The IP65 housing reduces downtime in dusty environments. With 20-year mission time, it offers long-term ROI. We recommend it for palletisers and automated guided vehicles.

Applicable Devices & Scenarios

• Mobile robots: AGVs, AMRs, and forklifts.
• Stationary machinery: palletisers, packaging lines.
• Material handling: conveyor systems and gantries.
• Access protection: door monitoring and hazardous area guarding.

Frequently Asked Questions (FAQ)

• What is the protective field range?
  The protective field range is 2 m with a 100 mm supplement.
• Can I configure the resolution?
  Yes. You can set 30, 40, 50, or 70 mm via CDS.
• Is the laser safe for eyes?
  Yes. It is class 1 laser (IEC 60825-1).
• What is the response time?
  The response time is 80 ms.
• Does it support EDM?
  Yes. External device monitoring is built-in.
• What is the maximum cable length?
  Up to 50 m with 0.22 mm² conductor.
• How many field sets are available?
  One triple field set (3 fields) per monitoring case.
• Can I use it outdoors?
  No. This is an indoor version.

Experience-Based Buying Guide

• Choose this scanner for indoor AGV collision avoidance.
• If you need longer range, consider the S300 Advanced series.
• For outdoor use, select the S300 Outdoor model.
• Verify the M12 connector pinout matches your system.
• Use the RS-422 interface for distance data logging.
• Always test field sets with a test rod during commissioning.
• Keep the optics clean; use soft cloth and isopropyl alcohol.
