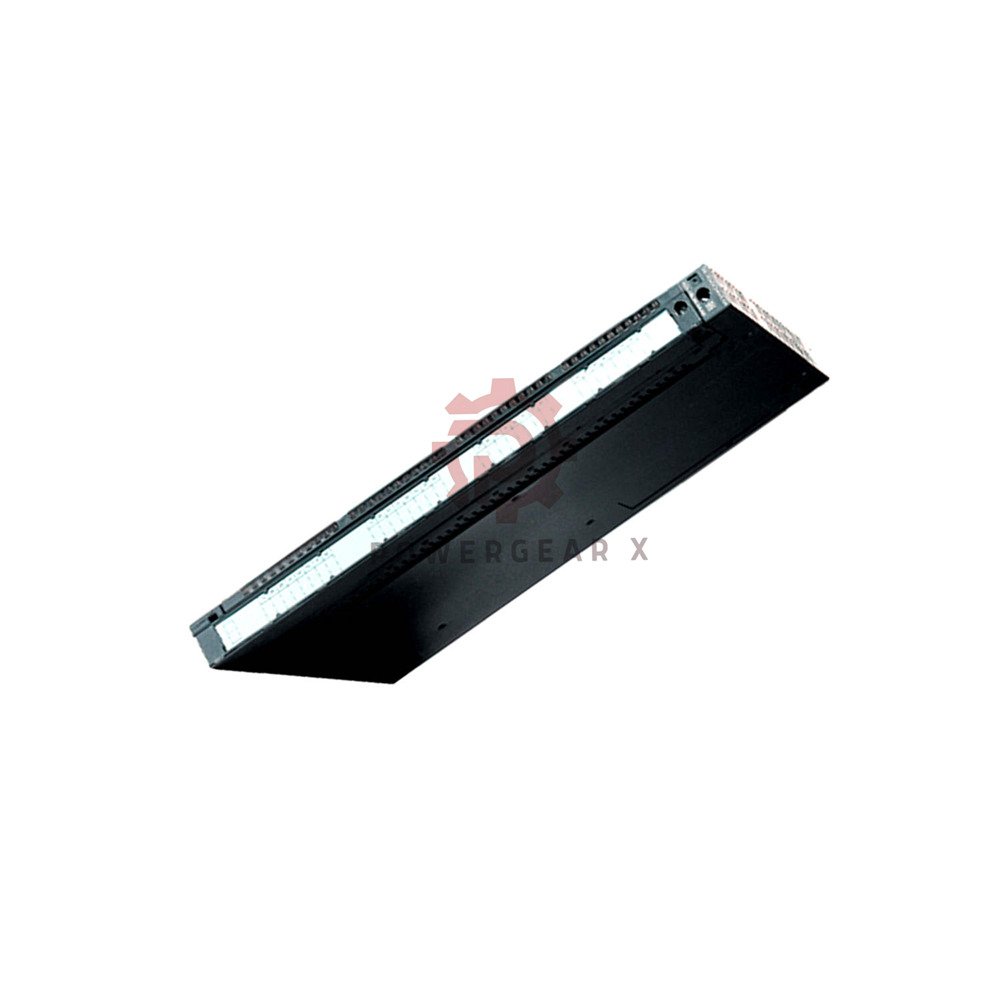

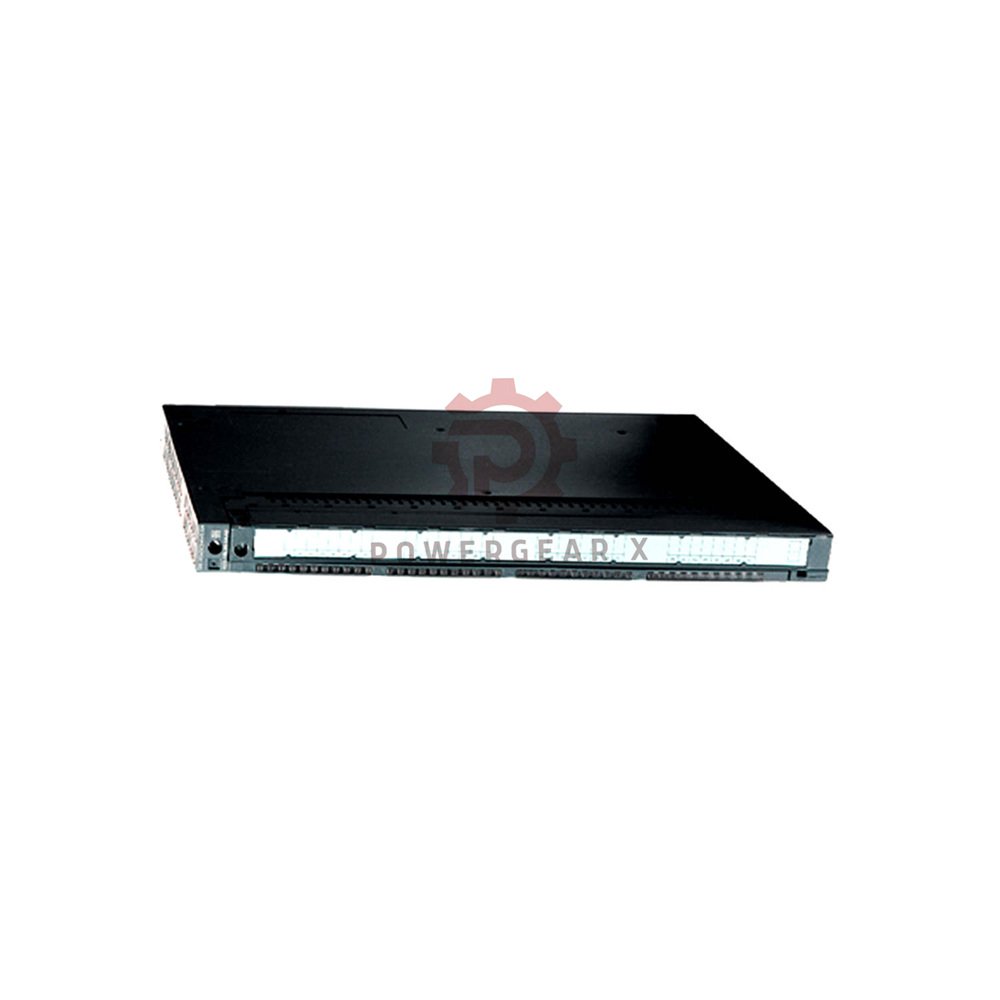

6ES7421-7DH00-0AB0 Siemens S7-400 16-Channel DI Module | Isolated

Product Overview

• Siemens 6ES7421-7DH00-0AB0 – isolated digital input module for SIMATIC S7-400
  • 16 channels with individual isolation per channel
  • Accepts 24‑60 V UC (AC/DC) input signals
  • Built‑in wire‑break detection and diagnostics
  • Adjustable input delay for noise filtering

Technical Specifications

• General data
  • Brand: Siemens
  • Model: 6ES7421-7DH00-0AB0
  • Series: SIMATIC S7-400
  • Product type: Digital input module (SM 421)
  • Weight: approx. 600 g
• Input characteristics
  • Number of inputs: 16 isolated channels
  • Input voltage type: AC/DC
  • Rated voltage: 24‑60 V UC
  • Signal “0”: -6 to +6 V DC / 0‑5 V AC
  • Signal “1”: 15‑72 V DC / 15‑60 V AC
  • Input current for signal “1”: 4‑10 mA (typical 4 mA)
• Performance & protection
  • Input delay: 0.5 / 3 / 10 / 20 ms (parameterizable)
  • Wire‑break monitoring: fixed current limits (18‑56 kΩ)
  • Diagnostics: parameterizable with readable status
  • Alarm functions: diagnostic alarm and hardware interrupt
  • Isolation: 1500 V AC between channels and backplane
• Power & environment
  • Backplane current: max. 150 mA @ 5 V DC
  • Power loss: 3.5‑8 W (depending on input voltage)
  • Cable length (shielded): max. 1000 m
  • Cable length (unshielded): max. 600 m
  • Dimensions: 25 mm × 290 mm × 210 mm

Expert Review

• This module suits engineers who need reliable high‑voltage AC/DC inputs.
• Individual channel isolation prevents ground loop problems in noisy plants.
• Adjustable input delay helps filter contact bounce and electrical noise.
• Wire‑break detection saves troubleshooting time on long cable runs.
• Diagnostic alarms notify the PLC immediately when faults occur.

Manager’s Insight

• This module reduces downtime with smart diagnostics and wire‑break alerts.
• You can read diagnostic information remotely through the PLC system.
• The module supports 2‑wire sensors with low quiescent current (0.5‑2 mA).
• Use shielded cable for runs over 600 m to maintain signal integrity.

Suitable Applications & Compatible Systems

• Compatible systems
  • SIMATIC S7‑400 PLC systems (all CPUs)
  • S7‑400 racks and power supplies
  • ET 200M distributed I/O (with IM 153 interface)
• Typical applications
  • Process automation with mixed 24‑60 V AC/DC signals
  • Manufacturing lines with long sensor cables
  • Water treatment plants requiring diagnostics
  • Power plants with high‑voltage digital inputs

Installation Guide

• Mounting steps
  • Insert the module into a free S7‑400 slot
  • Connect the 5 V DC backplane power automatically
  • Wire field devices to the 16 input terminals
  • Use shielded cable for runs over 600 m
• Configuration tips
  • Set input delay in hardware configuration
  • Enable diagnostic alarms for wire‑break events
  • Define hardware interrupt for fast response
  • Monitor diagnostic status via PLC program

Maintenance & Debugging

• Diagnostic LEDs show input status (green) on each channel
• Read diagnostic data through STEP 7 or TIA Portal
• Check wire‑break detection if inputs stay “0” unexpectedly
• Verify input voltage stays within rated range (24‑60 V UC)
• Clean dust from module using dry compressed air

Package Contents & Warranty

• Package includes
  • 1x Siemens 6ES7421-7DH00-0AB0 module
  • 1x front connector (sold separately in some configurations)
  • 1x product documentation (digital download)
  • 1x warranty card (12 months)
• Shipping & warranty
  • 12‑month warranty against manufacturing defects
  • Express shipping via FedEx, UPS, or DHL
  • Same‑day dispatch for orders before 2 PM (EST)

Frequently Asked Questions

• Q: What voltage range does the module accept?
  • A: The module accepts 24‑60 V AC/DC. Signal “1” requires 15‑72 V DC or 15‑60 V AC.
• Q: Can I connect both AC and DC signals to the same module?
  • A: Yes, the module handles mixed AC/DC inputs on different channels. Each channel is fully isolated.
• Q: How do I enable wire‑break detection?
  • A: Enable the diagnostic alarm in STEP 7 hardware configuration. The module detects currents above 0.7 mA.
• Q: What is the maximum cable length?
  • A: Use shielded cable up to 1000 m. Unshielded cable works up to 600 m for slower input delays.
• Q: Does this module replace the 6ES7421-1DH00-0AB0?
  • A: Yes, the 7DH00 version adds diagnostics and wire‑break detection. It is fully backward compatible.

Buying Guide & Selection Tips

• Choose this module for 24‑60 V AC/DC signals with diagnostic needs.
• For 120 V AC inputs, select the 6ES7421‑1EH00‑0AB0 model instead.
• Need more channels? Stack up to 4 modules per S7‑400 rack.
• Always use shielded cable for runs longer than 600 m.
• Verify your CPU firmware supports diagnostic alarms (FW 3.0 or higher).
