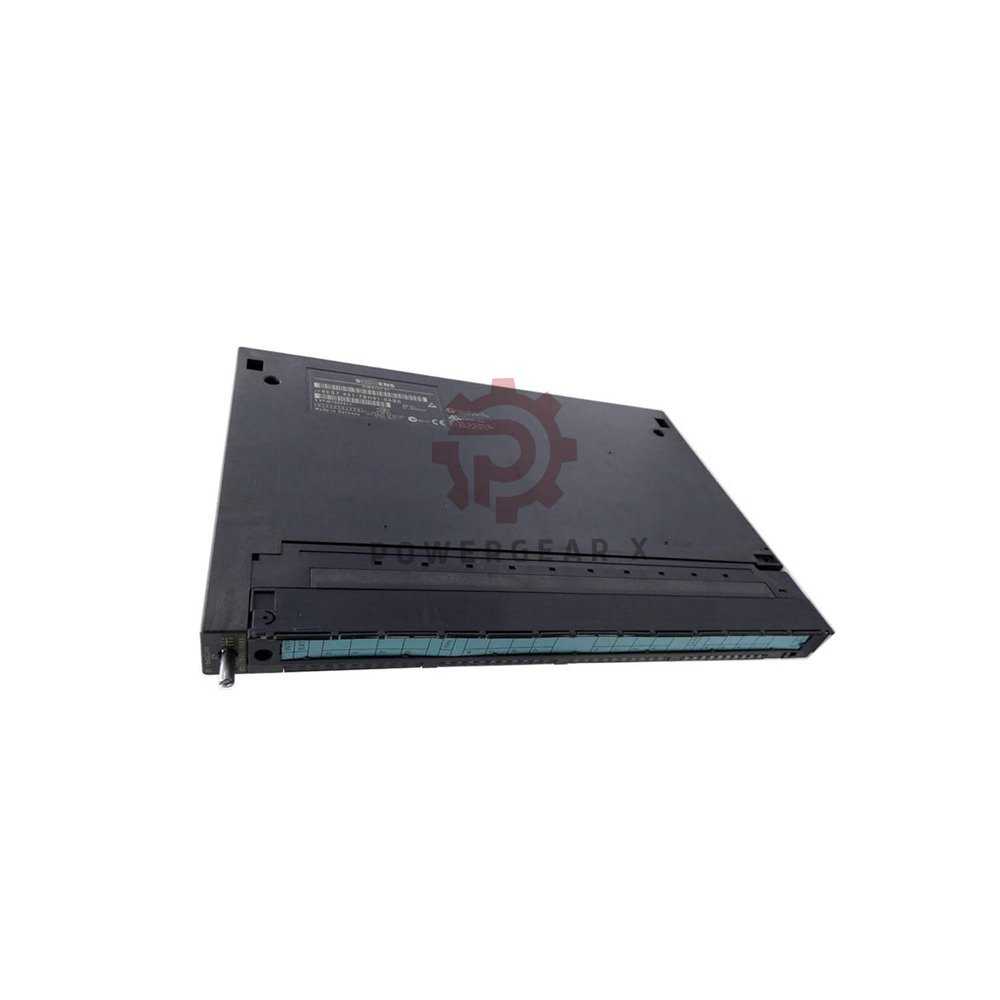

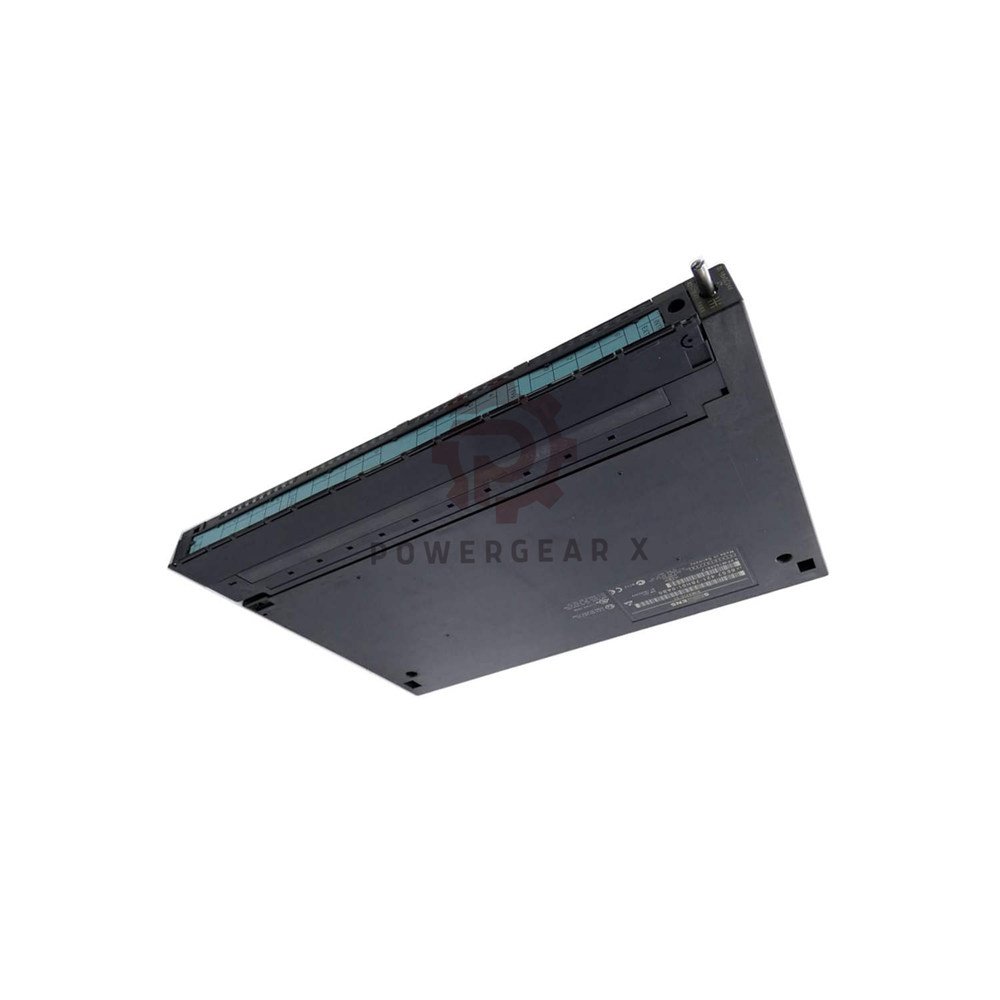

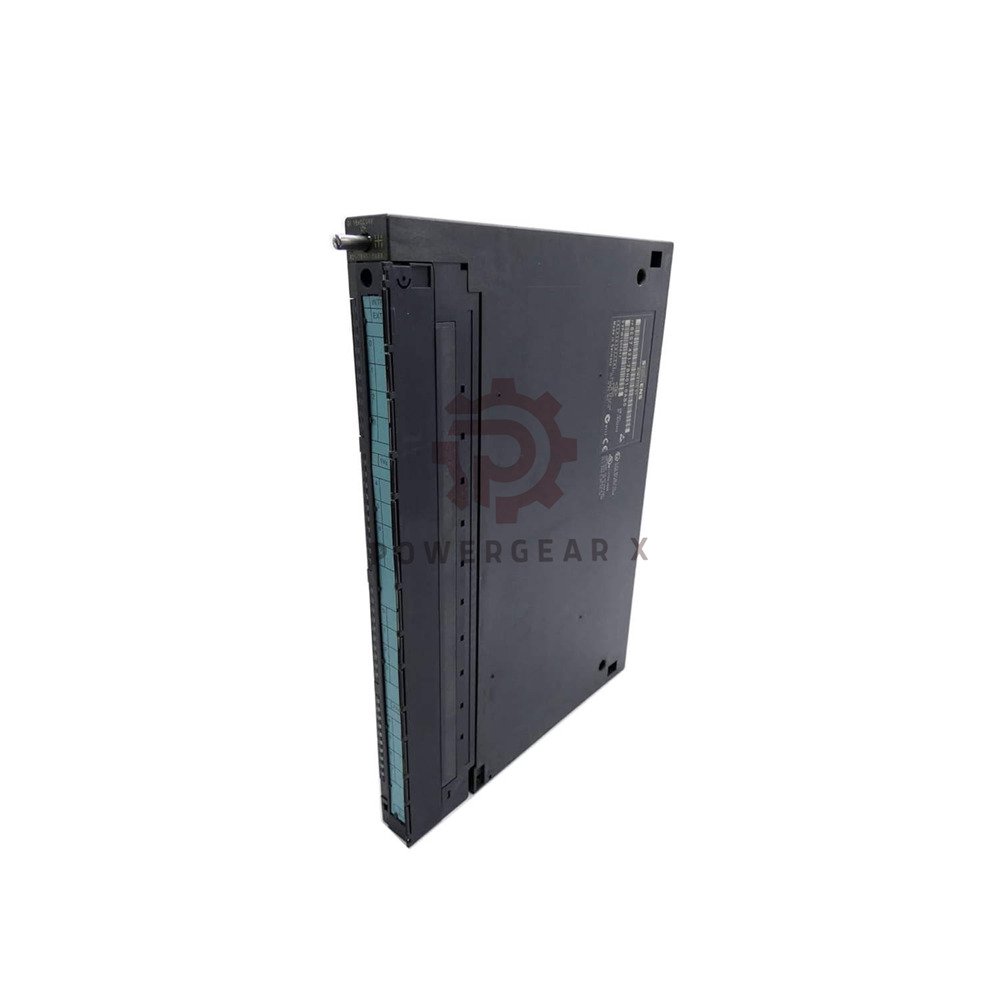

6ES7421-7BH01-0AB0 SIMATIC S7-400 Isolated Input Module | 0.05ms Delay

Product Overview

• Siemens 6ES7421-7BH01-0AB0 is a digital input module for the SIMATIC S7-400 system.
  • Provides 16 isolated digital inputs for 24V DC signals.
  • Supports configurable input delays from 0.05 to 3 ms.
  • Includes diagnostic alarms and wire-break monitoring.

Key Features at a Glance

• 16 isolated channels
  • Each channel provides electrical isolation from others.
  • Grouped in two groups of 8 channels.
• Configurable input delay
  • Choose 0.05, 0.1, 0.5, or 3 ms delay times.
  • Short delay for fast signals. Longer delay for noise filtering.
• Integrated diagnostics
  • Detects wire breaks and supply voltage faults.
  • Generates hardware interrupts for critical events.
• Encoder power supply
  • Provides 24V DC output for 2-wire sensors.
  • Short-circuit protected electronic outputs.

Technical Specifications

• Brand & Model
  • Brand: Siemens
  • Model: 6ES7421-7BH01-0AB0
  • Series: SIMATIC S7-400
• Power Supply
  • Load voltage: 24V DC (20.4 to 28.8V range)
  • Reverse polarity protection: Yes
  • Current consumption: 120mA from L+, 130mA from backplane
• Digital Inputs
  • Number of inputs: 16 channels
  • Input type: DC (IEC 61131 Type 2)
  • Signal “0”: -30V to +5V
  • Signal “1”: 11V to 30V
  • Input current: 6-8mA (typical)
• Input Delay (Configurable)
  • 0.05 ms – for high-speed signals
  • 0.1 ms – general purpose
  • 0.5 ms – noise filtering
  • 3 ms – maximum noise immunity
• Cable Length
  • Shielded: up to 1000 meters (at 3ms delay)
  • Unshielded: up to 600 meters (at 3ms delay)
  • Shorten cables for faster delays (70m for 0.5ms)
• Encoder Supply
  • 2 outputs: 24V DC (-2.5V tolerance)
  • Rated current: 120mA per output
  • Short-circuit protection: Electronic
• Diagnostics & Status
  • Diagnostic alarms: Parameterizable
  • Wire-break detection: I < 1mA
  • LED indicators: PWR (green), INTF (red), EXTF (red), channel status
• Isolation
  • Between channels: Yes (groups of 8)
  • Between channels and backplane: Yes
  • Test voltage: 500V DC
• Dimensions & Weight
  • Width: 25mm | Height: 290mm | Depth: 210mm
  • Weight: approx. 600g

Expert Review – Field Engineer’s Perspective

• The 6ES7421-7BH01-0AB0 excels in high-speed logic applications.
  • 0.05ms delay captures fast proximity sensor pulses.
  • Diagnostic alarms save troubleshooting time on wire breaks.
  • Isolated channels prevent ground loops in large systems.
• Recommended for automotive assembly and packaging lines.
  • Handles high-speed counting and position sensing reliably.
  • Works with both 2-wire and 3-wire sensors.

Compatible Systems & Applications

• Compatible PLCs
  • Siemens SIMATIC S7-400 series CPUs
  • Works with all S7-400 racks and power supplies
• Typical Applications
  • High-speed conveyor monitoring
  • Position detection in robotics
  • Machine tool safety interlocks
  • Process alarm monitoring

Installation & Wiring Guidelines

• Mounting
  • Insert module into any S7-400 slot.
  • Secure with the locking mechanism.
  • Connect front connector for wiring.
• Wiring Tips
  • Use shielded cable for runs >50m.
  • Twist pairs to reduce noise pickup.
  • Keep input wires away from motor cables.
• Configuration
  • Set input delay in STEP 7 hardware config.
  • Enable diagnostic alarms as needed.
  • Assign hardware interrupt blocks.

Package Contents

• 1x Siemens 6ES7421-7BH01-0AB0 module
• 1x front connector (screw type)
• 1x labeling strip
• 1x quick reference guide

Shipping & Warranty

• Warranty: 12 months against manufacturing defects
• Dispatch: Within 12-24 hours on business days
• Shipping: FedEx, UPS, or DHL (calculated at checkout)

Frequently Asked Questions

• Q: Can I use 0.05ms delay with long cables?
  • A: No, maximum cable length at 0.05ms is only 30m (shielded). Use 3ms delay for 1000m runs.
• Q: Does this module support 120V AC inputs?
  • A: No, this is a 24V DC input module. Use 6ES7421-1EL01-0AA0 for AC inputs.
• Q: What does the wire-break detection do?
  • A: It detects when the input current drops below 1mA. The module then generates a diagnostic alarm.
• Q: Can I connect 2-wire sensors directly?
  • A: Yes, the module provides 24V encoder supply. Ensure sensor quiescent current is below 3mA.
• Q: How do I reset a diagnostic alarm?
  • A: Correct the fault (e.g., re-connect the wire). The alarm clears automatically after reading the module status.

Buyer’s Selection Guide

• Choose 6ES7421-7BH01-0AB0 if you need:
  • 16 isolated inputs in a single module.
  • Configurable delays from 0.05 to 3ms.
  • Diagnostic alarms for critical applications.
• For less demanding applications, consider 6ES7421-1BH02-0AA0 (non-isolated, fixed delay).
• Need more channels? Stack multiple modules (up to 32 per rack).
