6ES7331-7PF11-0AB0 AI Module – 8-Channel Thermocouple Input

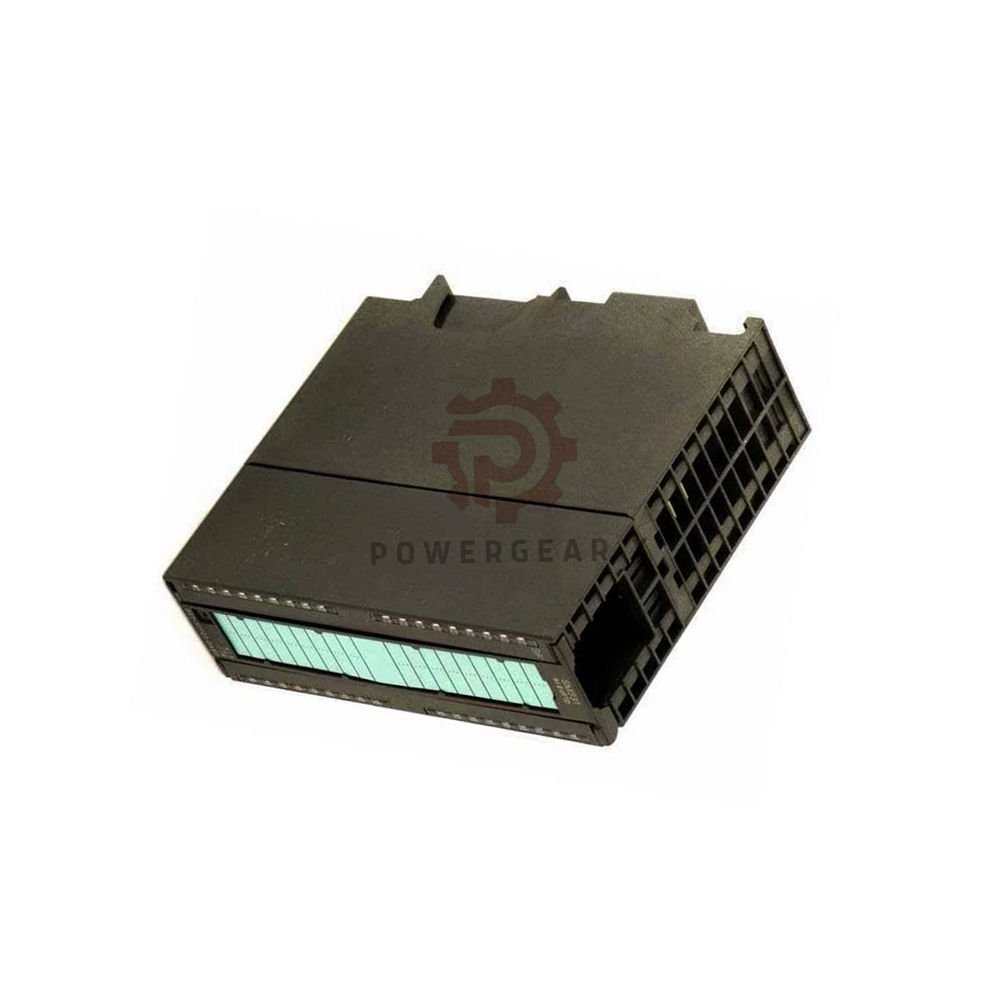

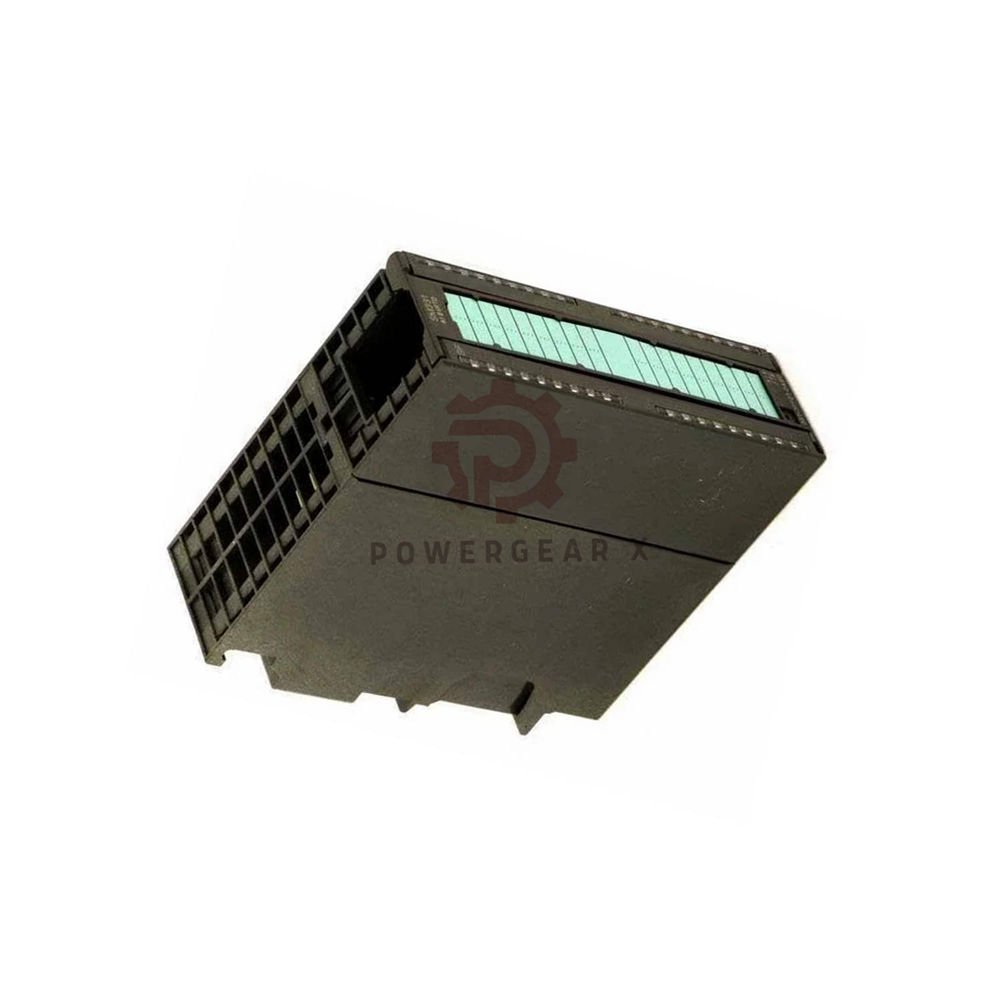

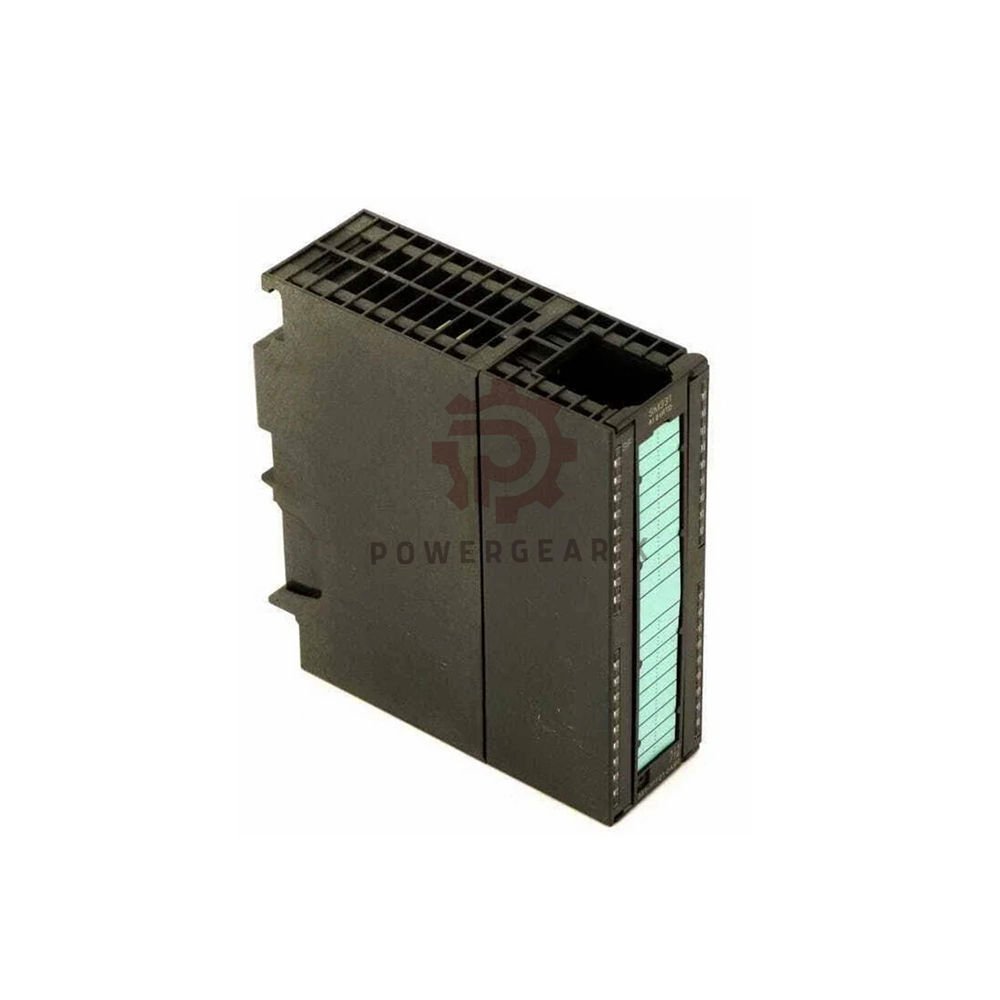

6ES7331-7PF11-0AB0 – SIMATIC S7-300 Analog Input SM 331

Isolated 8-channel AI for thermocouples. Supports Types B, E, J, K, L, N, R, S, T, U, C, and TXK/TXK(L) per GOST. 16-bit resolution, 50 ms conversion time. 40-pin connector. Reliable for harsh industrial environments.

Product Overview

• Supply & Power
  • Load voltage L+: 24 V DC (rated)
  • Reverse polarity protection: Yes
  • Current from L+ (no load): max. 240 mA
  • Current from backplane bus: max. 100 mA
  • Power loss: typ. 3 W
• Analog Inputs
  • Number of inputs: 8
  • Destruction limit: 75 V (1 s duty 1:20), 20 V DC continuous
  • Constant measurement current: typ. 0.7 mA
  • Supported ranges: Thermocouple only (No voltage, current, RTD, or resistance)
• Thermocouple Types Supported
  • B, C, E, J, K, L, N, R, S, T, U
  • TXK/TXK(L) to GOST
• Temperature Compensation
  • Parameterizable: Yes
  • Internal compensation: Yes
  • External with Pt100: Yes
  • External with compensations socket: Yes
  • Definable comparison point: Yes
• Linearity & Resolution
  • Characteristic linearization: Parameterizable
  • Resolution: max. 16-bit (with overrange, Two’s complement)
  • Integration time: Parameterizable
• Conversion & Interference
  • Basic conversion time: 10 ms (≤4 ch) / 190 ms (≥5 ch)
  • Interference suppression: 400 / 60 / 50 Hz
  • Cable length (shielded): max. 100 m
• Accuracy (Error Limits)
  • Operational error (overall temp): ±1 K (voltage)
  • Thermocouple operational error: Type T ±0.18%, U ±0.15%, E ±0.12%, J ±0.12%, L ±0.17%, K ±0.15%, N ±0.17%, R ±0.08%, S ±0.10%, B ±0.13%, C ±0.10%, TXK ±1.00% (lower range)
  • Basic error at 25 °C: Type T ±0.13%, U ±0.08%, E ±0.05%, J ±0.04%, L ±0.06%, K ±0.04%, N ±0.04%, R ±0.03%, S ±0.03%, B ±0.05%, C ±0.02%, TXK ±0.67% (lower range)
• Diagnostics & Alarms
  • Diagnostics function: Yes (parameterizable)
  • Alarms: Diagnostic, limit value, hardware interrupt (all parameterizable)
  • Diagnostic info readable: Yes
  • LED indication: Group error SF (red)
• Isolation & Protection
  • Between channels: Yes (in groups of 2)
  • Between channels and backplane bus: Yes
  • Between channels and power supply: Yes
  • Isolation tested: 500 V DC
• Mechanical
  • Connection: 40-pin front connector
  • Dimensions (W x H x D): 40 x 125 x 120 mm
  • Weight: approx. 272 g

Expert Review

Powergear X engineering team – The 6ES7331-7PF11-0AB0 is a dedicated thermocouple input module. It offers excellent accuracy and fast conversion. The 16-bit resolution ensures precise temperature readings. Its robust isolation protects against interference. For multi-channel TC applications, this module is a top choice. The diagnostics and alarms simplify troubleshooting.

Manager’s Insight

This module reduces engineering effort. It supports many thermocouple types, reducing spare parts. The 12-month warranty and global shipping (FedEx, UPS, DHL) ensure fast deployment. With 12-24 hour dispatch, you get it quickly. It is a cost-effective solution for S7-300 systems.

Applications & Suitable Devices

• Suitable for: SIMATIC S7-300 PLC systems
• Use with: Thermocouple sensors (B, E, J, K, L, N, R, S, T, U, C, TXK)
• Industries: Petrochemical, power generation, HVAC, kiln control
• Typical tasks: Temperature monitoring, furnace control, process heating

Comparison with Similar Models

• 6ES7331-7KF02-0AB0 – AI 8xRTD/TC (different range)
• 6ES7331-7KB02-0AB0 – AI 2xRTD/TC (fewer channels)
• 6ES7331-7NF00-0AB0 – AI 8xTC with HART

Frequently Asked Questions (FAQ)

• Can I connect voltage or current signals?
  No. This module accepts thermocouples only. Voltage and current are not supported.
• How do I set the integration time?
  You can parameterize it via software. Choose 50/60/400 Hz suppression.
• What is the maximum cable length?
  Shielded cable up to 100 m is allowed. Keep it away from high-power lines.
• Does it support external cold junction compensation?
  Yes. Use Pt100 or compensations socket. Both are parameterizable.
• What if the SF LED is red?
  It indicates a group error. Check diagnostics for details. Replace or reconfigure.

Selection Guide – Tips for Buyers

• Number of channels: Choose this 8-channel model for multiple TCs.
• Thermocouple type: Verify your sensor type is listed (B, E, J, K, L, N, R, S, T, U, C, TXK).
• Accuracy needs: For high precision, this module offers excellent basic error limits.
• Shipping: We ship within 12-24 hours via FedEx, UPS, or DHL.
• Warranty: 12 months against defects. Contact us for support.
