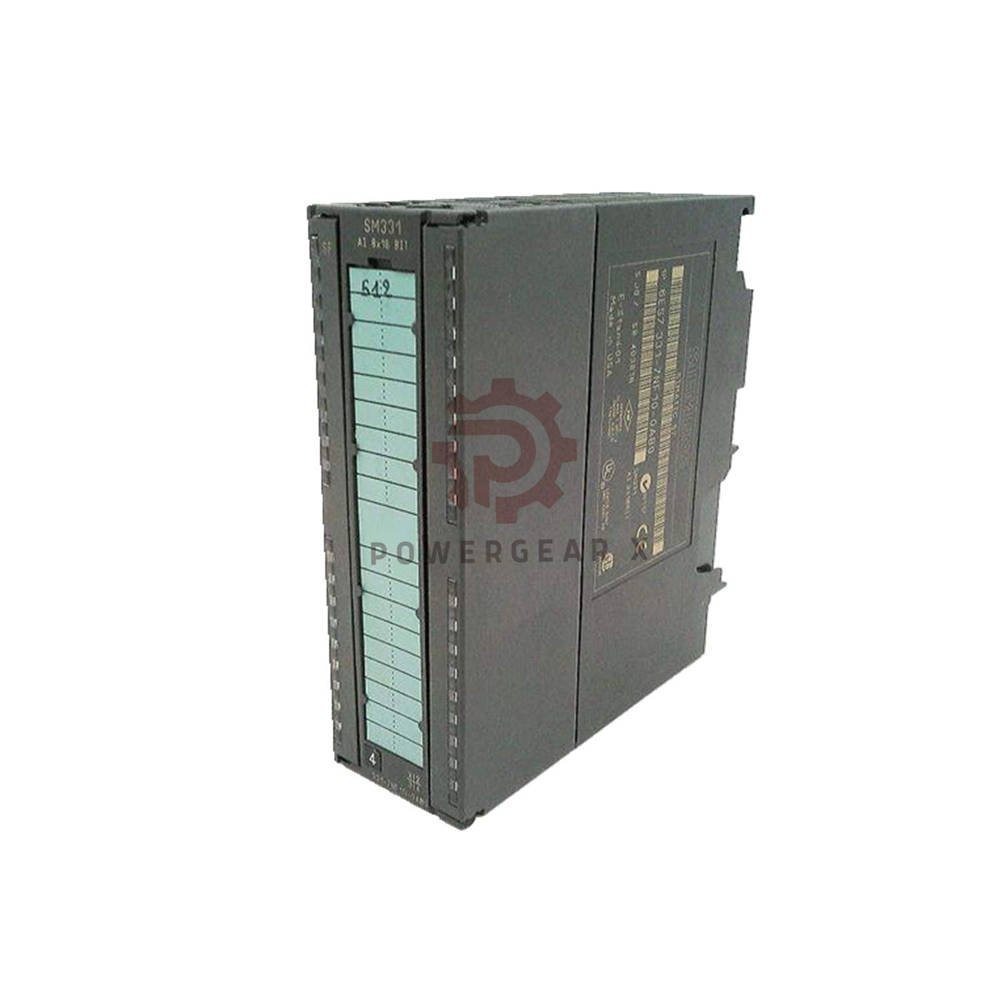

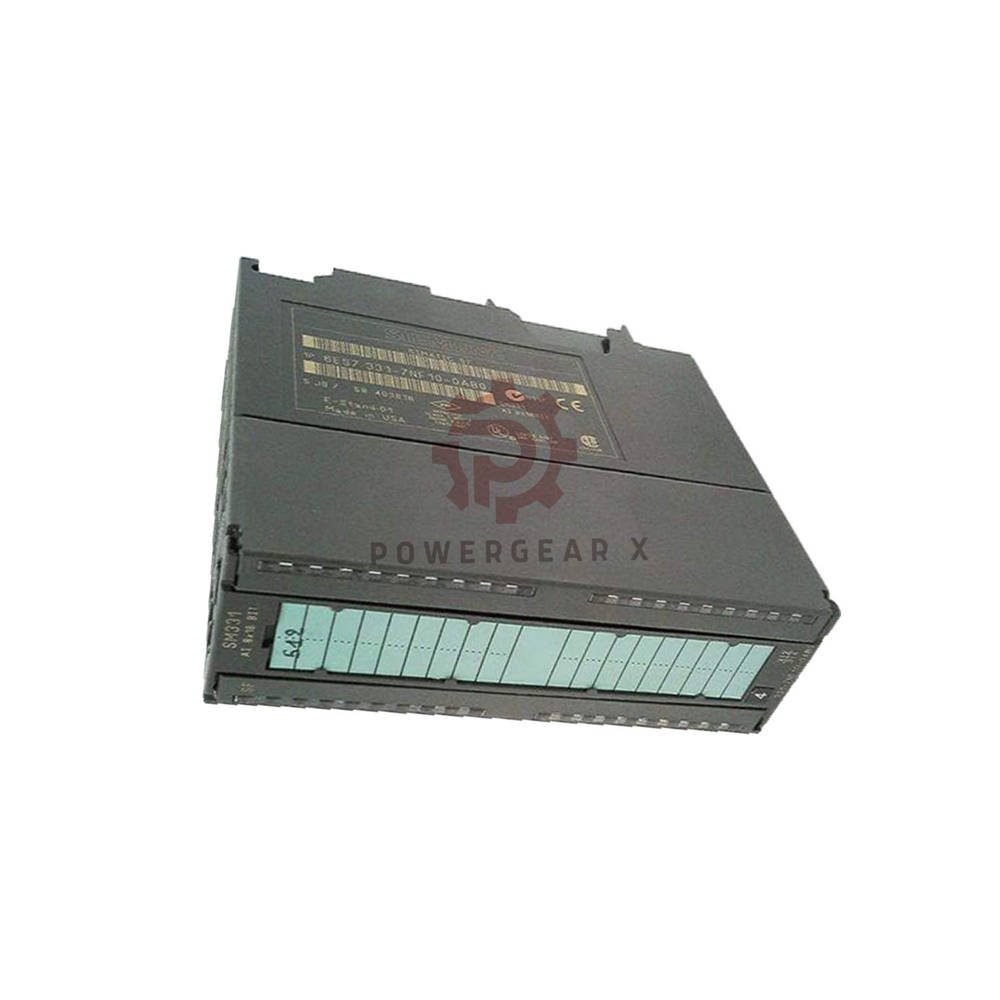

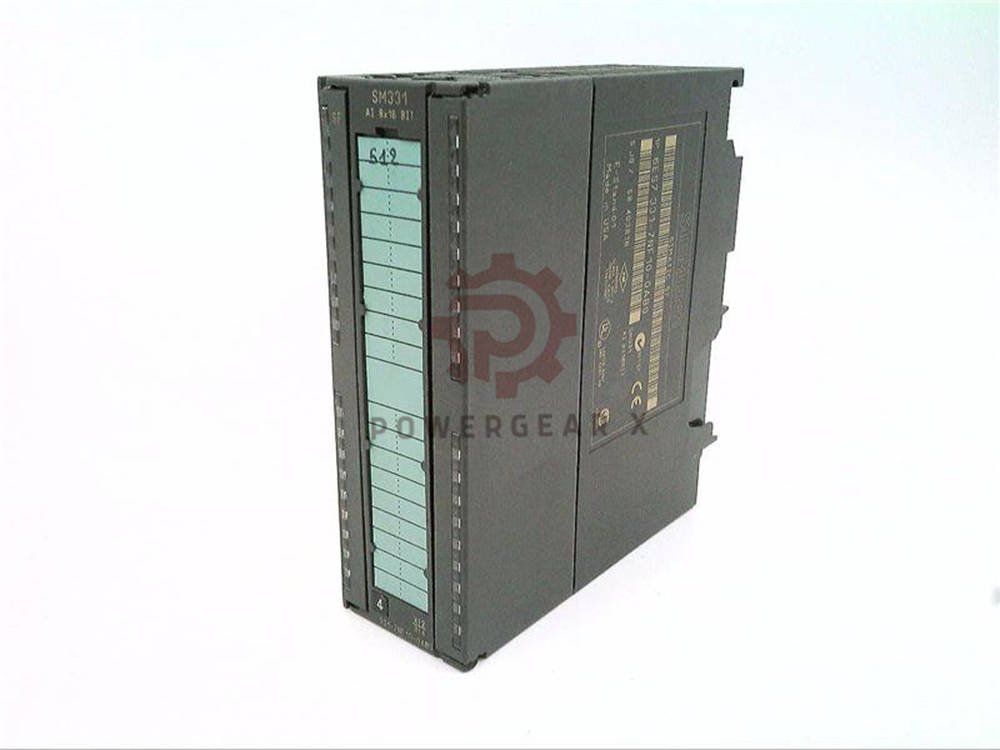

6ES7331-7NF10-0AB0 | Siemens SM 331 8-Channel Analog Input Module

6ES7331-7NF10-0AB0 | SIMATIC S7-300 Analog Input SM 331

Product Overview
This isolated analog input module offers 8 channels for voltage and current signals. It supports 16-bit resolution and works with 24 V DC. Use it to connect sensors and transmitters to your S7-300 system.

• Brand: Siemens
• Model: 6ES7331-7NF10-0AB0
• Series: SIMATIC S7-300
• Type: Analog Input SM 331 – isolated
• Channels: 8 analog inputs
• Input types: Voltage (±5/10V, 1-5V) and current (±20mA, 0/4-20mA)
• Resolution: 16 bit (with overrange)
• Conversion time: 10 ms (4-ch mode) or 23–95 ms (8-ch mode)
• Supply voltage: 24 V DC (reverse polarity protected)
• Power loss: Typ. 3 W
• Diagnostics: Parameterizable, with LED group error (SF)
• Isolation: 500 V AC tested, channel-to-channel and bus
• Connection: 40-pin front connector (not included)
• Dimensions (W x H x D): 40 x 125 x 117 mm
• Weight: Approx. 272 g
• Cable length: Shielded, max. 200 m

Technical Data – In Detail

• Input ranges – voltage:
  • ±10 V (input resistance 10 MΩ)
  • ±5 V (input resistance 10 MΩ)
  • 1 … 5 V (input resistance 10 MΩ)
• Input ranges – current:
  • 0 … 20 mA (input resistance 250 Ω)
  • ±20 mA (input resistance 250 Ω)
  • 4 … 20 mA (input resistance 250 Ω)
• Destruction limits:
  • Voltage input: 75 V (1 s max, duty 1:20) / 35 V continuous
  • Current input: 40 mA max
• Interference suppression: 400 / 60 / 50 Hz (programmable)
• Accuracy (overall temp. range): ±0.1 % (voltage/current)
• Accuracy (at 25 °C): ±0.05 % (voltage/current)
• Diagnostics alarms: Diagnostic, limit value, hardware interrupt – all configurable

Installation & Wiring

• Mounting: Snap onto S7-300 rail – standard DIN rail
• Wiring: Use 40-pin front connector (sold separately)
• Transducer connection:
  • Voltage measurement – direct
  • 2-wire current – needs external supply
  • 4-wire current – direct connection
• Shielding: Use shielded cables up to 200 m

Compatibility & System Use

• PLC: SIMATIC S7-300 family (CPU 31x, etc.)
• Signals: Standard analog sensors, transmitters, and actuators
• Isolation: Channels isolated in groups of 2 – safe for industrial noise

Certifications & Standards

• CE: Compliant with EU directives
• UL/cUL: Listed for industrial use
• RoHS: Compliant
• Isolation tested: 500 V AC

Package Contents

• 1 x 6ES7331-7NF10-0AB0 module (SM 331)
• 1 x product manual (digital download)
• 1 x labeling strip
• Front connector not included – order separately

Warranty & Shipping

• Warranty: 12 months against defects
• Shipping: Within 12–24 hours (business days)
• Carriers: FedEx, UPS, DHL – express tracked
• Packaging: Anti-static bag + sturdy carton

Expert Review – Performance & Reliability

This SM 331 delivers stable and accurate analog readings even in noisy plants. The 16-bit resolution gives fine detail for process control. Diagnostics and alarms help you catch issues early. It is a trusted choice for S7-300 users who need reliable signal acquisition.

Manager’s Insight – Value & Flexibility

This module covers many input types – voltage and current – reducing spare part variety. The short conversion time (10 ms) supports fast control loops. With 12-month warranty and fast shipping, it is a cost-effective solution for both new builds and upgrades.

Applications & Suitable Devices

• Process control: Pressure, level, flow transmitters
• Machine automation: Position sensors, speed feedback
• Test stands: Data acquisition for R&D
• Building automation: Temperature and humidity monitoring
• Energy management: Current and voltage monitoring

Frequently Asked Questions (FAQ)

• Can I use this module with 0-10 V sensors?
  No. It supports ±10 V, ±5 V, and 1-5 V. For 0-10 V, choose a different SM 331 variant.
• Does it support thermocouples or RTDs?
  No. This model is for voltage/current only. Use SM 331-7PFxx for temperature.
• What happens if I exceed 20 mA?
  The module has a destruction limit of 40 mA. Above that, it may be damaged. Use a fuse or current limiter.
• How do I configure the integration time?
  You set it in STEP 7 hardware configuration. Options: 23, 72, 83, or 95 ms.
• Is the front connector included?
  No. You need to order the 40-pin connector separately (part number 6ES7392-1AM00-0AA0).

Selection Guide – Which SM 331 to choose?

Pick the 6ES7331-7NF10-0AB0 if you need 8 channels for voltage/current with 16-bit resolution. It suits most analog applications. For temperature inputs, choose the 7PF series. For fewer channels or lower resolution, consider the 7KF series. Always check your sensor type and required accuracy.

Practical Tips – From Field Experience

• Why is my reading unstable?
  Check shielding and grounding. Keep analog cables away from power lines.
• Can I mix voltage and current channels?
  Yes, each channel is configurable independently.
• How to test the module?
  Apply a known signal (e.g., 4-20 mA from a calibrator) and read the value in STEP 7.
• What if the SF LED lights up?
  Check diagnostics in STEP 7. It indicates a group error – likely wiring or configuration issue.

For inquiries, contact sales@powergearx.com or
+86 18030005825 (WhatsApp).

Compare with similar modules

• 6ES7331-7KF02-0AB0 – 8 AI, 13-bit, lower cost
• 6ES7331-7PF01-0AB0 – 8 AI, for thermocouples/RTDs
• 6ES7331-7NF00-0AB0 – older version, 14-bit
