6ES7332-5HB01-0AB0 Analog Output | Siemens S7-300 2-Channel

6ES7332-5HB01-0AB0 | Siemens SIMATIC S7-300 SM 332 Analog Output

Product Overview

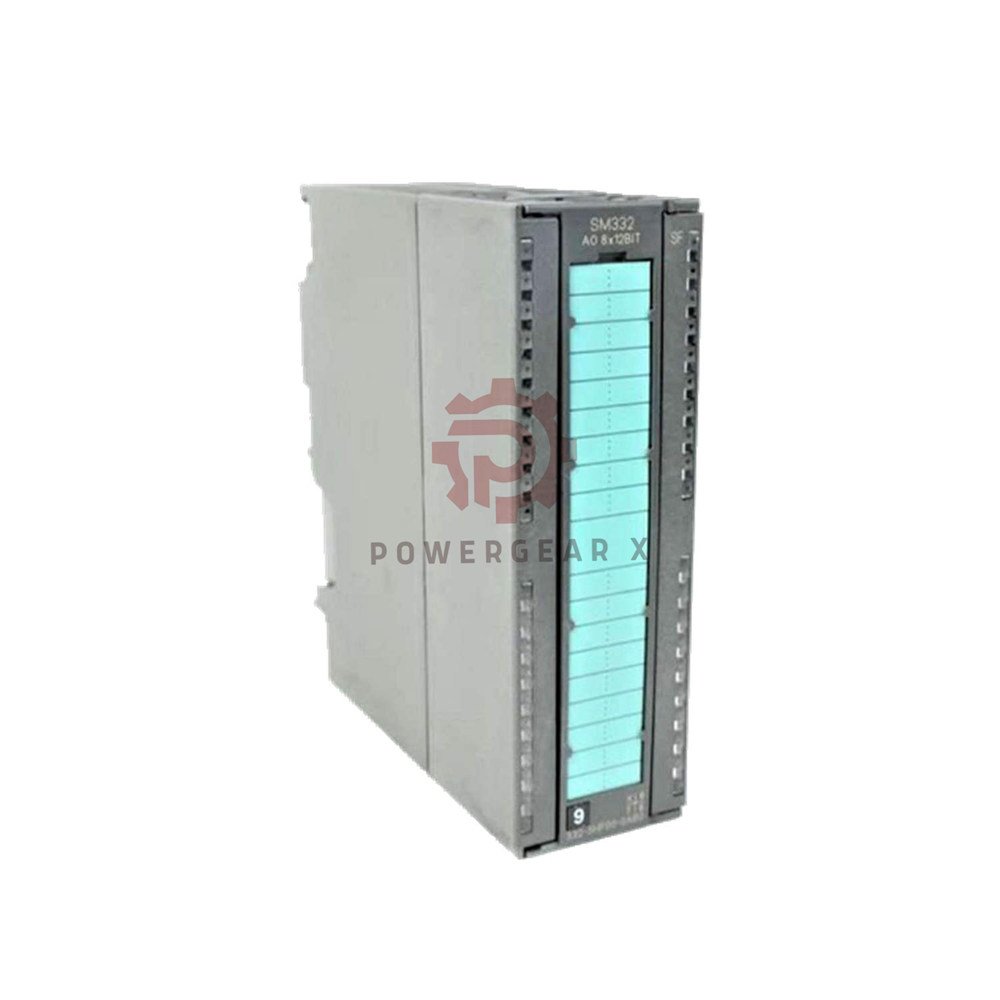

• Siemens 6ES7332-5HB01-0AB0 is a 2‑channel analog output module for S7‑300.
• It delivers voltage (0‑10V, ±10V, 1‑5V) or current (0‑20mA, 4‑20mA, ±20mA).
• This module has isolated channels and a 20‑pin front connector.
• You can remove or insert it while the backplane bus is active.

Key Technical Data

• Brand: Siemens
• Model: 6ES7332-5HB01-0AB0 (SM 332, 2 AO)
• Supply Voltage: 24 V DC (reverse polarity protected)
• Current Draw: 135 mA (from L+) / 60 mA (from backplane)
• Power Loss: 3 W (typical)
• Output Channels: 2 (isolated from backplane and L+)
• Resolution: 11 bits + sign (for ±10V, ±20mA) / 12 bits (for 0‑10V, 0‑20mA)
• Conversion Time: 0.8 ms per channel
• Settling Time: 0.2 ms (resistive) / 3.3 ms (capacitive) / 0.5‑3.3 ms (inductive)
• Accuracy (25°C): Voltage ±0.4% / Current ±0.5% of range
• Accuracy (full temp): Voltage ±0.5% / Current ±0.6% of range

Output Ranges & Load

• Voltage Output: 0‑10V, 1‑5V, ±10V (min. load 1 kΩ, max. 1 µF)
• Current Output: 0‑20mA, 4‑20mA, ±20mA (max. load 500 Ω, max. 10 mH)
• Short‑Circuit Protection: Yes (voltage output, max. 25 mA)
• Cable Length: Shielded, max. 200 m

Diagnostics & Alarms

• Diagnostic Alarm: Parameterizable (group error LED “SF” red)
• Diagnostic Info: Readable online
• Isolation: 500 V DC tested (channels to backplane and L+)

Installation & Compatibility

• Fits S7‑300 rail (40 mm wide, 125 mm high, 117 mm deep).
• Requires a 20‑pin front connector (not included).
• Works with any S7‑300 CPU (via backplane bus).
• Hot‑swap capable – remove/insert while powered.

Package Contents

• 1 × SM 332 analog output module (6ES7332-5HB01-0AB0)
• Labeling strips and manual
• 12‑month warranty card

Shipping & Delivery

• Dispatch: 12‑24 hours from order.
• Carriers: FedEx, UPS, DHL express.
• Tracking available within 24 hours.

Expert Review

• “This SM 332 is a reliable choice for precise analog control. Its 0.8 ms conversion and 12‑bit resolution handle fast PID loops well. The isolation protects your CPU from field noise.” — Senior Controls Engineer, PowergearX

Manager’s Insight

• “For multi‑variable control, this 2‑channel module saves rack space. Use it for valve positioning or speed control. The diagnostic alarm helps catch wiring faults early.” — Product Manager, Industrial Automation

Typical Applications

• Control valves and actuators in process plants.
• Speed control for small motors and drives.
• Analog setpoint generation for VFDs.
• Pressure, flow, and temperature loop control.

Frequently Asked Questions

• What is the resolution of the 4‑20mA output?
• 11 bits plus sign (12 bits for 0‑20mA).

• Can I connect a 500 Ω load to the current output?
• Yes, 500 Ω is the maximum load.

• Does this module support HART?
• No, it is a standard analog output module.

• Is the front connector included?
• No, you need to order the 20‑pin connector separately.

• Experience tip: For inductive loads (e.g., coils), add a freewheeling diode to protect the output.
• Always use shielded cables for analog signals – keep them away from power lines.

Selection Guide

• Choose this SM 332 if you need 2 isolated analog outputs with voltage or current.
• For 4 or 8 channels, consider 6ES7332-5HD01-0AB0 or 6ES7332-5HF00-0AB0.
• Check your load: voltage output needs ≥1 kΩ; current output ≤500 Ω.
• Confirm your CPU supports the number of analog modules (max. 8 per rack).

Compare with Similar Models

• 6ES7332-5HD01-0AB0 – 4 AO, same accuracy.
• 6ES7332-5HF00-0AB0 – 8 AO, higher channel density.
• 6ES7331-7KF02-0AB0 – analog input module for pairing.
