Extended Reach Fluid-Resistant Vibration Probe

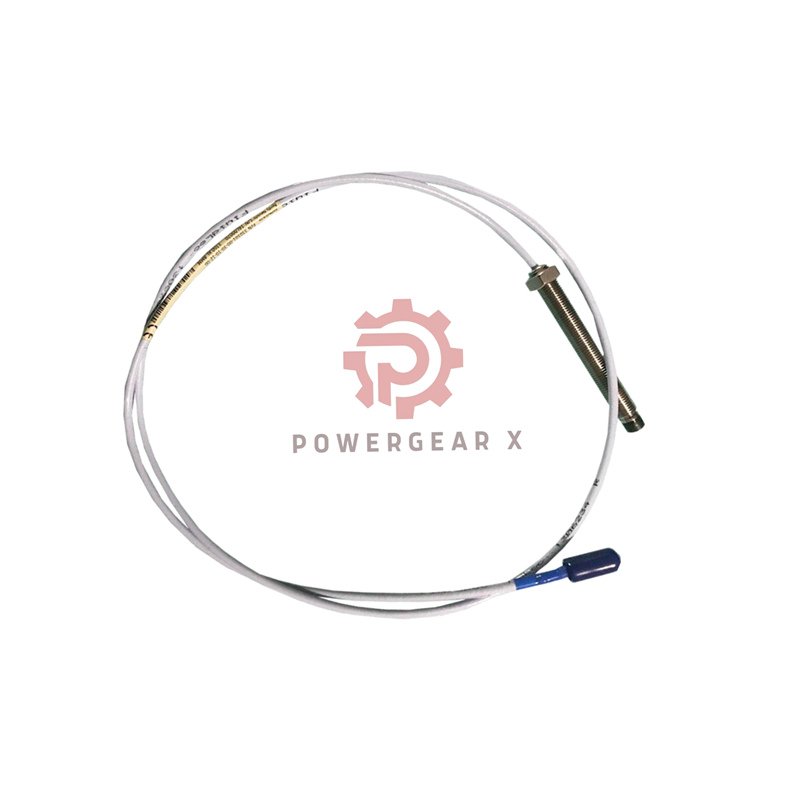

The Bently Nevada 330702-00-30-50-11-05 combines extended length with environmental protection. This 11mm sensor features a 3-inch case and FluidLoc cable. It provides reliable monitoring in wet or oily conditions. The probe is certified for hazardous area applications.
Detailed Product Configuration
- Manufacturer: Bently Nevada
- Product Family: 3300 XL Monitoring System
- Probe Type: 11mm Proximity Vibration Sensor
- Complete Part Number: 330702-00-30-50-11-05
- 330702 – 11mm Armored Probe, 1/2-20 UNF Thread
- 00 – No Unthreaded Section (0.0 inch)
- 30 – Extended Case Length: 3.0 inches
- 50 – System Cable: 5.0 meters (16.4 feet)
- 11 – Protected FluidLoc Cable with ClickLoc
- 05 – Certified with Multiple Safety Approvals
- Application Note: Requires pairing with 5-meter Proximitor Sensor
- Origin: Manufactured in U.S.A.
Technical Specifications
- Physical Dimensions
- Mounting Thread: 1/2-20 UNF Standard
- Maximum Engagement: 0.750 inch
- Case Material: Corrosion-Resistant AISI 304 SST
- Tip Material: Durable Polyphenylene Sulfide (PPS)
- Sealing System: Viton® O-ring Pressure Seal
- Electrical & Cable Properties
- Cable Type: 75 Ω Triaxial with FEP Insulation
- DC Resistance (5m): 7.2 Ω ± 0.8 Ω
- Cable Protection: FluidLoc Design for Wet Areas
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Installation Specifications
- Recommended Torque: 15.2 N•m (133 in-lb)
- Maximum Torque: 45.2 N•m (400 in-lb)
- Connector Method: Finger Tight Connection
- Max Connector Torque: 0.565 N•m (5 in-lb)
- Environmental & Safety Ratings
- Operating Temperature: -52°C to +177°C
- Low-Temperature Limit: -34°C Minimum
- Hazardous Area: Multiple EPL Certifications
- Temperature Classes: T1 through T5 Available
- Additional Information
- Shipping Weight: 0.17 Kg
- Cable Options: Standard 1, 5, or 9 meter lengths
- Pressure Testing: Available upon special request
Key Features & Benefits
- Extended Case Design: 3-inch length suits deeper mounting applications
- Fluid-Resistant Cable: FluidLoc protection ideal for wet environments
- Hazardous Area Certified: Approved for use in explosive atmospheres
- System Integration: Optimized for 5-meter Proximitor Sensor systems
- Robust Construction: Stainless steel ensures long service life
Professional FAQs
Design & Application
- When should I choose the 3-inch case length option?
Select this when your mounting hole is deeper than standard, or when you need extra clearance behind the mounting surface. - What environments require FluidLoc cable protection?
Use FluidLoc in areas with spray, splash, condensation, or oil mist. It prevents fluid ingress that could damage standard cables.
Technical Specifications
- Does the longer case affect measurement accuracy?
No, the case length is mechanical only. The sensing tip and electronics remain identical to standard length probes. - Can I use this probe in coastal or marine environments?
Yes, the stainless steel case and FluidLoc cable provide excellent resistance to salt spray and moisture.
Ordering & Service
- What is included with my purchase?
The 330702-00-30-50-11-05 comes with a 12-month warranty. We offer fast shipping via FedEx, UPS, and DHL worldwide.
Purchasing Information
Order the Bently Nevada 330702-00-30-50-11-05 for demanding industrial applications. This configuration addresses both environmental and space challenges.
Need assistance with special environmental requirements? Contact our technical team. Email sales@powergearx.com or message via WhatsApp: +86 18030005825.
