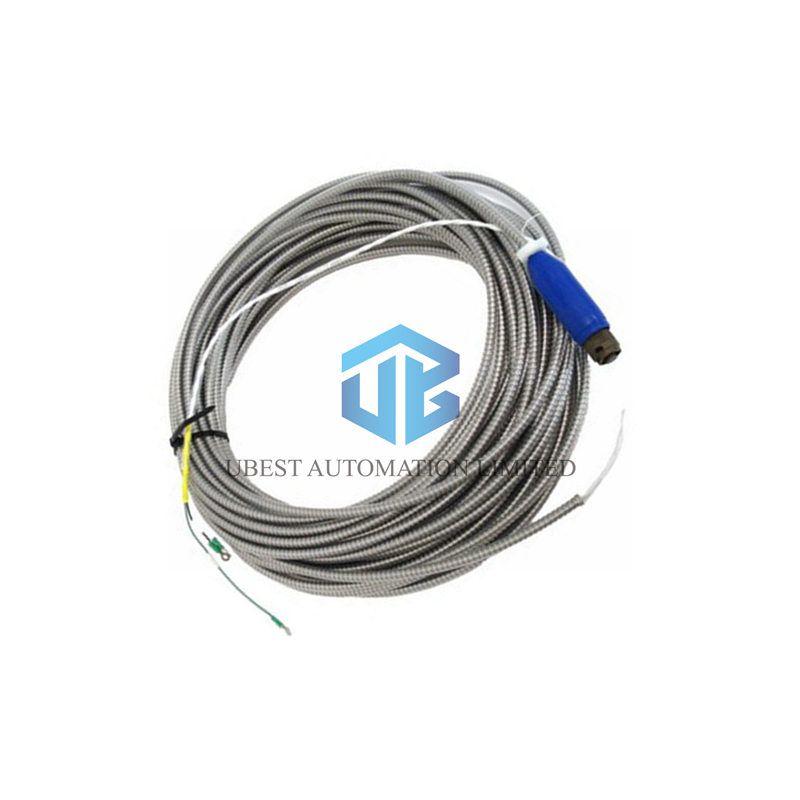

Name: 330192-00-10-50-00 Bently Nevada Armored 8 mm Probe – 5 m ETR
SKU: 330192-00-10-50-00
Availability: InStock

Product details

330192-00-10-50-00 Bently Nevada 3300 XL 8 mm ETR Probe, 3/8‑24 UNF thread, with armor. Made in U.S.A.
Rugged PPS tip, AISI 303/304 stainless steel case. Patented TipLoc & CableLoc provide 330 N pull strength.
Total length 5.0 meters (16.4 feet) – includes armor. Designed for 5 meter Proximitor sensor only.
Agency approval not required (00). Viton® O‑ring seals differential pressure.
12‑month warranty, 12‑24 h express shipping (FedEx, UPS, DHL).

330192 (Base: 3300 XL 8 mm ETR Probe, 3/8‑24 UNF thread, with armor)
- 00 – Unthreaded length: minimum 0.0 inch (must be ≤ case length –0.8 in)
- 10 – Overall case length: 1.0 inch
- 50 – Total length: 5.0 meters (16.4 feet) – use only with 5 m Proximitor
- 00 – Agency approval: Not required
Complete part: 330192-00-10-50-00

Brand: Bently Nevada | Model: 330192-00-10-50-00
Probe DC resistance (RPROBE): 8.73 ± 0.50 Ω (5.0 m length).
Thread: 3/8‑24 UNF, max engagement 0.563 in.
Relative humidity: < 3% ASF change after 56 days at 93% RH (IEC 68‑2‑3).
Temperature range (probe only): -52°C to +218°C (tip); cable/connector -51°C to +260°C.
Pressure seal: Viton® O‑ring, not factory tested. Contact sales for tested versions.
Materials: PPS tip, AISI 303/304 case, gold‑plated connectors, armored cable.
Hazardous area: Suitable for Class I, Zone 0/2, Div 2 with barriers (drawings 141092/140979).
Temperature schedule: T1‑T5 (gas), Dc (dust) per ATEX/IECEx.

Torque connectors to max 0.565 N•m (5 in•lb). Hand‑tighten only.
Ensure Viton O‑ring seats correctly; avoid temperatures below -34°C to preserve seal.
No field calibration needed – factory set, fully interchangeable.
Armored cable provides extra mechanical protection in harsh environments.
Important: This 5 m probe works only with a 5 meter Proximitor sensor.

Compatible with 3300 XL, 3500, Trendmaster* systems (*with adapter).
Ideal for steam turbines, compressors, gearboxes, large pumps in oil, gas, power.
Armored version recommended where cable may be exposed to impact or abrasion.
Use only Bently Nevada 8 mm extension cables and proximitors for entity compliance.

Why 5 m armored? The 5.0 meter length bridges longer distances from machine to monitor. Armor protects against crushing in cable trays.
Proximitor matching: This probe is specifically designed for 5 meter Proximitor sensors – ensures correct impedance and linear range.
No approval (00): Cost‑effective for non‑hazardous sites, with same rugged performance.
Pressure seal note: Standard O‑ring suits most apps; if you need tested seals, our custom department can help.

Why must this 5 m probe be used only with a 5 meter Proximitor?The total system impedance is matched for 5 m cable. Using a different proximitor length will affect scale factor and linear range.
Can I add an extension cable to this 5 m probe?No. 3300 XL 8 mm systems with total length ≤ 5 m are one‑piece. For longer runs, use a 9 m probe or add extension with a shorter probe.
What does “no agency approval” (00) mean for hazardous locations?It means the probe itself is not marked for hazardous areas, but can still be used in non‑hazardous or with proper barriers (see installation drawings).
How does the armor affect installation in existing conduit?Flexible stainless steel armor bends easily, yet protects against crushing. It can be pulled through conduit with care.
What is the 12‑month warranty coverage?We cover defects in materials and workmanship. For quick support, contact sales@powergearx.com or WhatsApp. 12‑24 h shipping for replacements.

- Factory‑sealed Bently Nevada packaging. Includes armored probe with integral cable, test certificate.
- 12‑month warranty from shipment date.
- 12‑24 hour dispatch via FedEx, UPS, DHL (express shipping).
