Product details

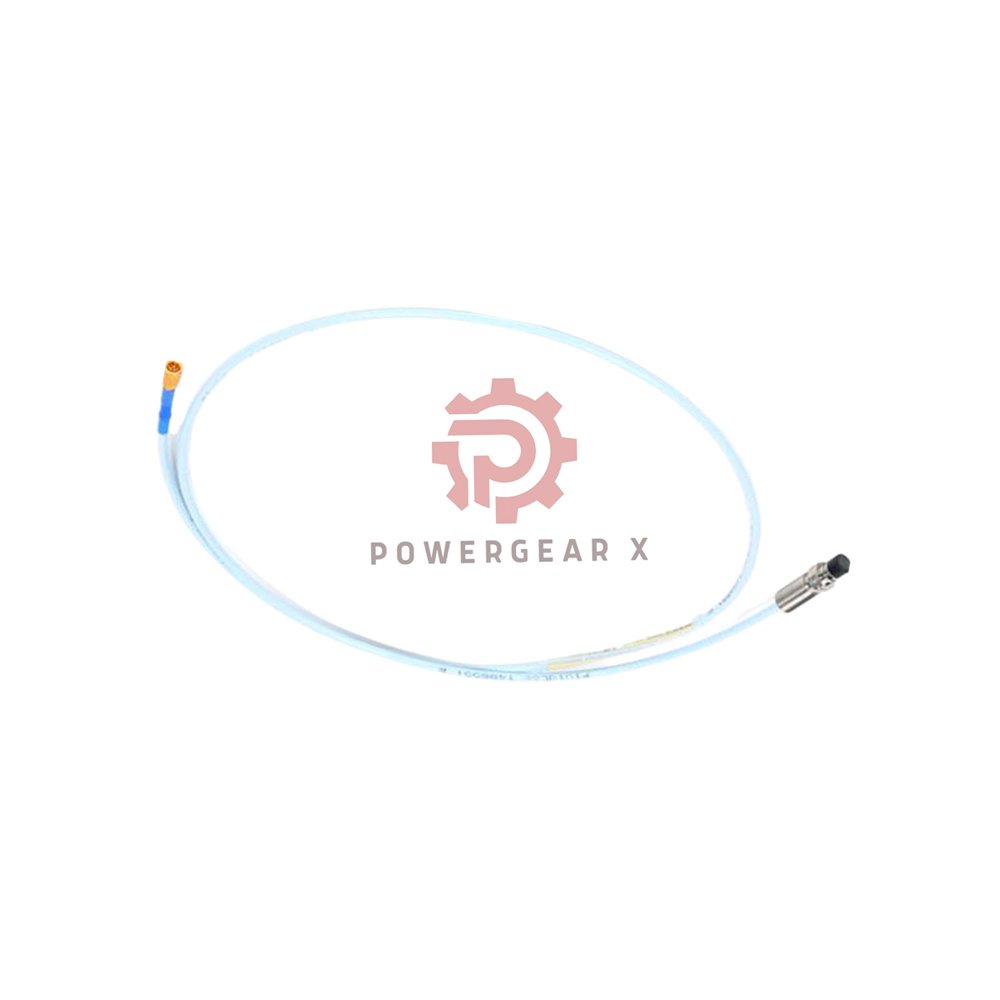

330193-00-02-90-05 – Bently Nevada 3300 XL 8 mm Probe, M10 x 1 Thread, 9.0m Cable
Product Description
This 3300 XL 8 mm Probe uses M10 x 1 thread without armor. It comes with a 9.0-meter cable for remote mounting. Made in the U.S.A., it offers high temperature resistance and global hazardous area approvals. Ideal for long-distance signal transmission.
Manager’s Insight
Long cable runs need stable signals. This 9.0-meter probe delivers exactly that. The M10 x 1 thread fits metric machine frames. No armor means easier routing in tight spaces. For installations where the proximitor sits far from the probe, this is your solution.
Expert Review
The 3300 XL series maintains linearity even with extended cable lengths. Resistance measures 9.87 ± 0.50 Ω for consistent performance. PPS tip resists chemicals and heat. Low magnetic field interference ensures accurate readings near motors and generators.
Model Breakdown – Hierarchical Suffix Structure
- 330193 – 3300 XL 8 mm Probe, M10 x 1 thread, without armor
- -00 – Unthreaded Length Option: 0 mm (maximum unthreaded length 230 mm)
- -02 – Overall Case Length Option: 20 mm
- -90 – Total Length Option: 9.0 meters (29.5 feet)
- -05 – Agency Approval Option: CSA, ATEX, IECEx Approvals
- -90 – Total Length Option: 9.0 meters (29.5 feet)
- -02 – Overall Case Length Option: 20 mm
- -00 – Unthreaded Length Option: 0 mm (maximum unthreaded length 230 mm)
Technical Specifications
- Brand: Bently Nevada
- Model: 330193-00-02-90-05
- Series: 3300 XL 8 mm Probe
- Thread Type: M10 x 1 (without armor)
- Unthreaded Length: 0 mm (max 230 mm)
- Overall Case Length: 20 mm
- Total Length: 9.0 meters (29.5 feet)
- Probe Resistance: 9.87 ± 0.50 Ω
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 303 or 304 stainless steel
- Max Thread Engagement: 15 mm (M10 x 1)
- Temperature Range: -52°C to +177°C (-62°F to +350°F)
- Extended Tip Range: -52°C to +218°C (-62°F to +425°F)
- Humidity: Less than 3% change at 93% RH (up to 56 days)
- 60 Hz Magnetic Field: Probe output as low as 0.0004 mV per Gauss at 10 mil gap
- Pressure Seal: Viton® O-ring
Applications & Suitable Equipment
- Remote vibration monitoring on large turbines and compressors
- Thrust position in generators and pumps
- Key phasor for speed and phase analysis
- Over-speed protection in steam and gas turbines
- Works with Bently Nevada 3500, 1900, and 2300 monitoring systems
Installation & Compatibility
- Mounting: M10 x 1 thread with up to 15 mm engagement
- Cable: 9.0 m standard length, no armor for easy routing
- System Match: Designed for use with 9-meter Proximitor sensors
- Extension Cables: Compare 330190-085-01-00 and 330190-085-01-05 for matching ETR series cables.
Hazardous Area Approvals (Option 05)
- CSA, ATEX, IECEx – Intrinsically safe (ia) and non-incendive (nA/ec)
- Zone 0 / Class I, II, III: AEx/Ex ia IIC T5…T1 Ga
- Zone 2 / Division 2: AEx/Ex nA IIC T5…T1 Gc
- Temperature Class T1 to T5: From -55°C up to +232°C
Packaging, Shipping & Warranty
- Packaging: Anti-static bag with protective caps
- Dispatch: 12 to 24 hours after order
- Carriers: FedEx, UPS, DHL with tracking
- Warranty: 12 months against manufacturing defects
Frequently Asked Questions (FAQ)
- Does a 9.0-meter probe work with any proximitor? No. This probe is designed for the 9-meter Proximitor sensor only. Using a shorter proximitor will affect calibration.
- What is the benefit of the M10 x 1 thread? It fits metric machine frames directly. No adapter needed for European or Asian equipment.
- How does cable length affect signal quality? Longer cables have higher resistance. This probe is calibrated for 9.0 meters to maintain accuracy.
- Can I use this probe in high moisture areas? Yes. It passes 93% humidity testing with less than 3% scale factor change.
- What is the real-world advantage of extended temperature range? Standard range covers most needs. Extended tip to +218°C suits steam turbines and high-heat compressors.
Purchasing Guide
- Verify cable length matches your proximitor sensor type.
- Check unthreaded length to avoid mounting interference.
- Confirm hazardous area class before choosing approval option.
- Use matching extension cables to preserve system accuracy.
- Need armor or different thread? Compare with 3/8-24 armored models.
