Powerful Machine Health Sensor: Bently Nevada 3300 XL Probe

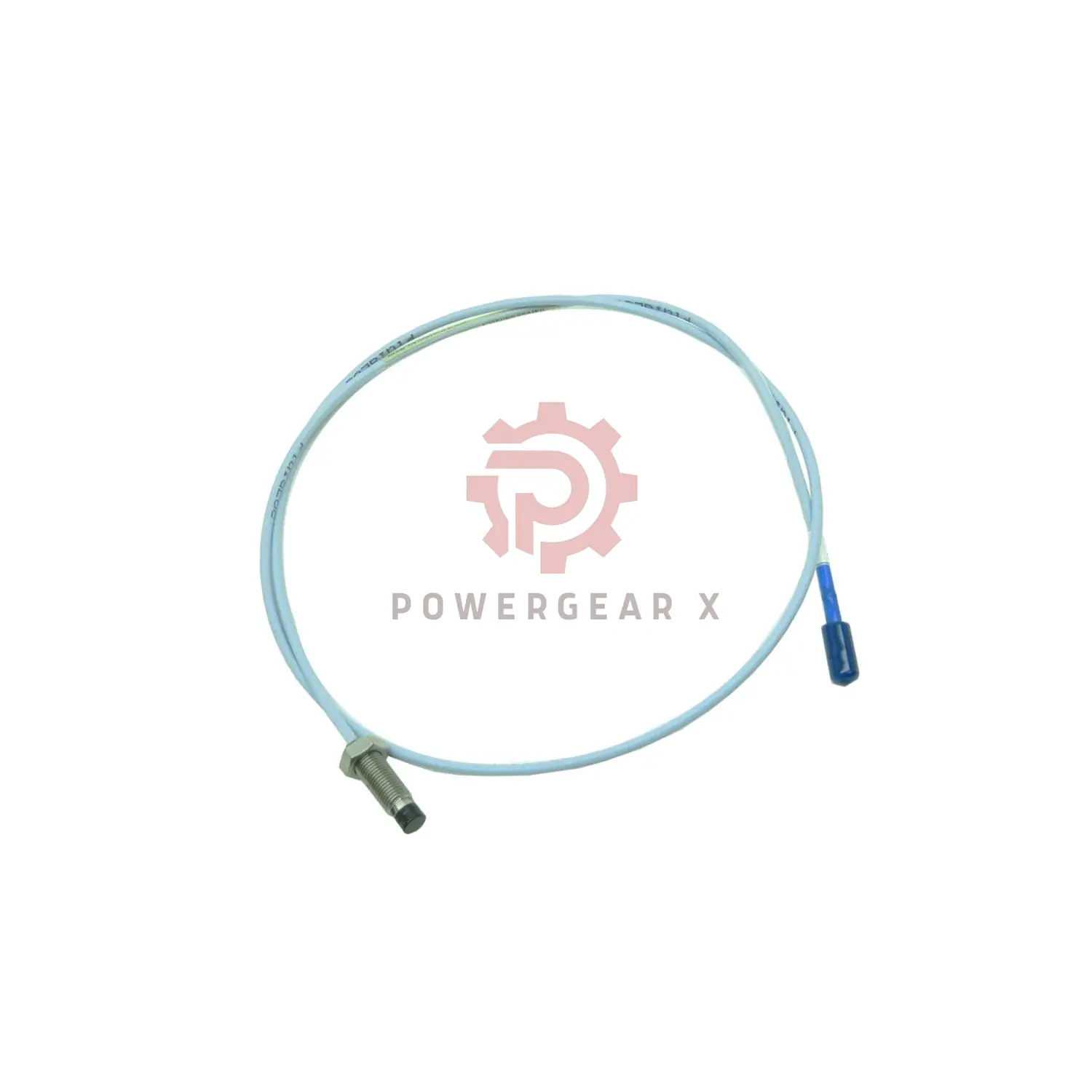

This is the genuine Bently Nevada 330101-00-40-05-02-00 proximity probe. Made in the USA for reliability. It checks the health of your rotating machines. The probe finds vibration and position problems early. It helps avoid costly downtime. Get precise and tough performance.
Key Specifications At a Glance
- Brand & Full Model: Bently Nevada 330101-00-40-05-02-00
- 330101: 3300 XL 8 mm Probe, No Armor, 3/8-24 UNF Thread
- 00: Unthreaded Part = 0.0 inches
- 40: Case Length = 4.0 inches
- 05: Cable Length = 0.5 meter (1.6 feet)
- 02: Miniature Coaxial ClickLoc Connector
- 00: No Agency Approval Needed
- Type: 8mm Diameter Proximity Sensor
- Range: 2.0 mm (80 mils) linear measuring range.
- Set Point: Best gap is -9 Vdc (~1.27 mm).
- Sensitivity: 7.87 V/mm ±5% (Standard system).
- Linearity: Very straight signal over the range.
- Temperature Limits:
- Works from -52°C to +177°C normally.
- Tip can handle up to +218°C with special rating.
- Build Quality:
- Tip: Strong PPS plastic.
- Case: Durable stainless steel (AISI 303/304).
- Seal: Viton® O-ring keeps pressure out.
- Cable Pull: Strong 330 N (75 lbf) CableLoc design.
- Electrical Specs:
- Probe Resistance: 7.45 Ω ± 0.50 Ω (for 0.5m).
- Max Distance to Monitor: 305 meters.
- Installation Data:
- Mounting Thread: 3/8-24 UNF.
- Max Thread In: 0.563 inches.
- Torque: Use 11.2 N•m (100 in•lbf).
Quick Start Installation Notes
- Drill and tap a 3/8-24 UNF hole.
- Screw in the probe. Do not go past 0.563 inches.
- Set the gap to get -9.0 Vdc on your monitor.
- Connect the ClickLoc connector firmly.
- Use shielded wire for best signal.
Why Choose This Model 330101-00-40-05-02-00?
- More Rugged: 8mm body is stronger than smaller probes.
- Better Bond: Patented TipLoc holds the tip firmly.
- Secure Cable: Patented CableLoc resists pulling force.
- Optional FluidLoc: Available to stop oil leaks through the cable.
- Easy to Swap: Consistent performance from probe to probe.
Certified Safe for Hazardous Areas
- Approved for use in explosive atmospheres.
- Meets Intrinsically Safe (ia) and Non-Incendive (nA, ec) standards.
- Suitable for Class I, II, III, Division 1 & 2 areas.
What You Get & Support
- One (1) Bently Nevada 3300 XL 8mm Proximity Probe.
- Full 12-Month Warranty. We cover defects.
- Fast Global Shipping: Via FedEx, UPS, or DHL.
- Ready to ship now.
Expert Questions & Answers
Technical Details
- What does “without armor” mean for model 330101?
It means the probe cable does not have a metal braided shield over it. It is the standard version.
- How accurate is the signal from this probe?
Very accurate. Sensitivity is 7.87 V/mm with only ±5% difference between probes.
Practical Application Tips
- My machine casing has high pressure. Is this probe sealed?
It has a Viton O-ring seal. But it is not pressure-tested before shipping. Contact us for special testing needs.
- Can the short 0.5m cable be extended?
Yes. You can connect it to a longer extension cable. Maximum total run to the monitor is 305 meters.
Buying Advice
- Why should I pick the 8mm probe over a 5mm one?
The 8mm 3300 XL 8mm Probe has a thicker tip and stronger body. It is more resistant to physical damage in tough plants.
